Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 13, 2016, 05:18 PM

  • 18 0289_18 0288_5132016_102800.mp4

Date
05/13/2016
W/O
0568850
Weather
Dry
Operator/Surveyor
IGNACIO
Sewer ID
Z00702
PipeID
P14118
Time
10:18 AM
Certificate
U-115-06022628
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7118
Sewer Name
18 SHOEMAKER AVENUE TRUNK
City
SANTA FE SPRINGS
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
25
Purpose
Routine Assessment
Project
20160513MI_SHOEMAKER_AVENUE_TRUNK
Material
NRCP
Shape
Circular
Height
12 in.
Upstream MH
18 0289
Downstream MH
18 0288
Dir. of Survey
Downstream
Length Surveyed
92.1 ft.
Total Length
92.1 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
3
Pipe schematic from manhole 18 0289 to 18 0288
MH: 18 0289MH: 18 0288downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 10:22AM11.5 ft. MGO - General Observation - ROACHES INSIDE THE LINE25.9 ft. SAV - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES42.8 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: NO, 6"46.5 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: NO, 6"92.1 ft. MGO - General Observation - CONNECTION AT MH, 9 OCLOCK, ACTIVE92.1 ft. AMH - Downstream Manhole, Survey Ends - 10:51AM

Observation photos (3)

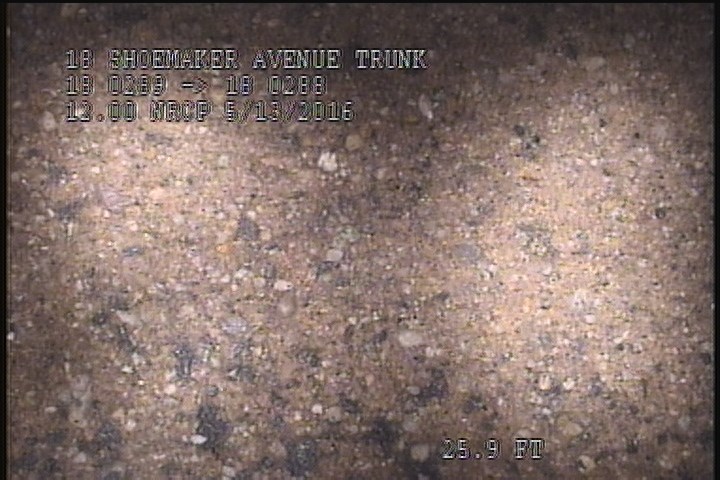

  • Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES

    25.9 ft. - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES

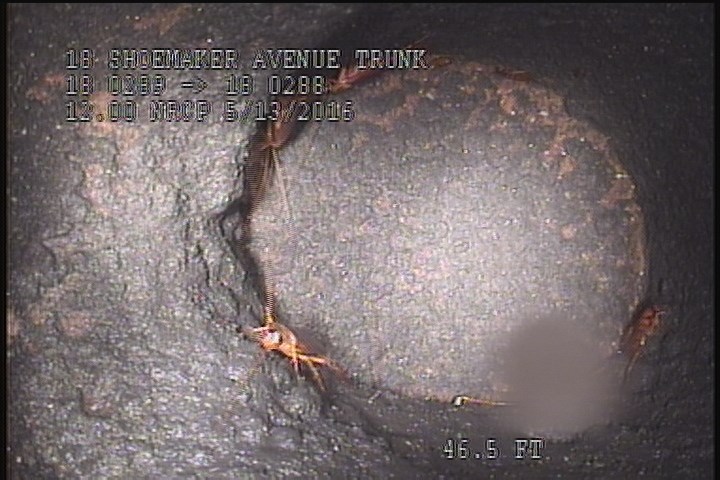

  • Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: NO, 6"

    46.5 ft. - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: NO, 6"

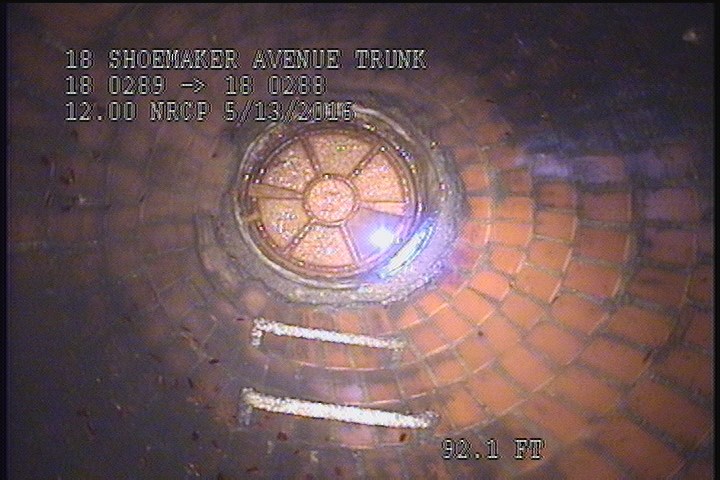

  • Downstream Manhole, Survey Ends - 10:51AM

    92.1 ft. - Downstream Manhole, Survey Ends - 10:51AM

All inspections of P14118Work order 0568850

Observations (9)

DistanceCodeObservation
0MWM—
25.9SAV—
46.5TFC—
0MWL—
42.8TFC—
92.1MGOCONNECTION AT MH, 9 OCLOCK, ACTIVE
92.1AMH10:51AM
0AMH10:22AM
11.5MGOROACHES INSIDE THE LINE

Properties (3)

custom_field_two
4
customer
LACSD
datetime
2016-05-13T10:18:11-07:00
