Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 9, 2016, 09:00 AM

  • 05 0756_05 9755_592016_023231.mp4

  • 05 0756_05 0755_592016_023335.mp4

Date
05/09/2016
W/O
0563852
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00484
PipeID
P05982
Time
2:00 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0123
Sewer Name
05 MANCHESTER-VERMONT RELIEF TRUNK
City
LYNWOOD
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
09
Purpose
Capital Improvement Program Assesment
Project
20160509MDM_MANCHESTER_VERMONT_RELIEF_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
05 0756
Downstream MH
05 0755
Dir. of Survey
Downstream
Length Surveyed
413.7 ft.
Total Length
413.7 ft.
Structural Index
2
Structural Quick
322C
Structural Rating
46
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
46
Pipe schematic from manhole 05 0756 to 05 0755
MH: 05 0756MH: 05 0755downstream0 ft. AMH - Upstream Manhole, Survey Begins - 2:05AM0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area6.1 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - SLGHT6.1 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - HAIRLINE10.1 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - SLIGHT10.1 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - SLIGHT14.1 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - SLIGHT18.4 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - SLIGHT18.4 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - SLIGHT22.4 ft. FC - Fracture Circumferential, from 03 to 05 o'clock, within 8 inches of joint: YES - HAIRLINE22.4 ft. FC - Fracture Circumferential, from 09 to 03 o'clock, within 8 inches of joint: YES - SLIGHT22.4 ft. FC - Fracture Circumferential, from 07 to 09 o'clock, within 8 inches of joint: YES - HAIRLINE26.2 ft. FC - Fracture Circumferential, from 07 to 09 o'clock, within 8 inches of joint: YES - HAIRLINE26.2 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - SLIGHT26.2 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES - H30.2 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - SLIGHT34.3 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - SLIGHT34.3 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES - H38.3 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - SLIGHT38.9 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - H42.2 ft. FL - Fracture Longitudinal, at 08 TO 4 o'clock, within 8 inches of joint: YES, Start - HAIRLINE AT JOINTS42.2 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - HAIRLINE AT JOINTS42.2 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SLIGHT AT JOINTS42.2 ft. FL - Fracture Longitudinal, at 08 TO 4o'clock, within 8 inches of joint: YES, Start - SLIGHT AT JOINTS231.1 ft. MGO - General Observation - 15" VCP413.2 ft. FL - Fracture Longitudinal, at 08 TO 4o'clock, within 8 inches of joint: YES, Finish - 20% SLIGHT413.2 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 50% HAIRLINE413.2 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 60% SLIGHT413.2 ft. FL - Fracture Longitudinal, at 08 TO 4 o'clock, within 8 inches of joint: YES, Finish - 30% HAIRLINE413.7 ft. AMH - Downstream Manhole, Survey Ends - 3:55AM

Observation photos (2)

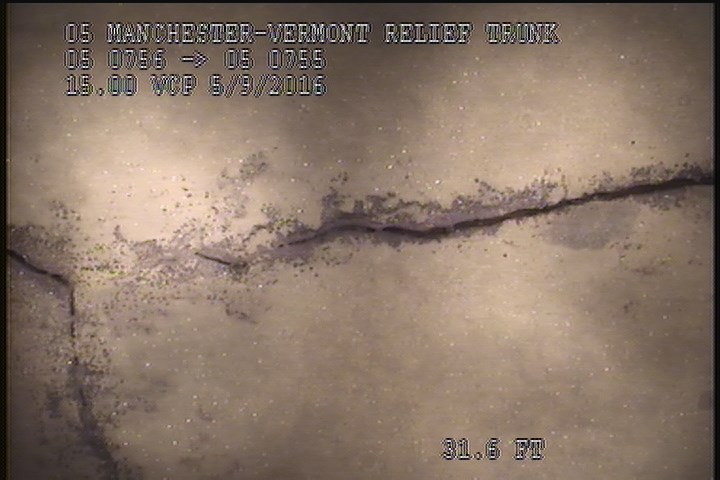

  • Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - SLIGHT

    30.2 ft. - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - SLIGHT

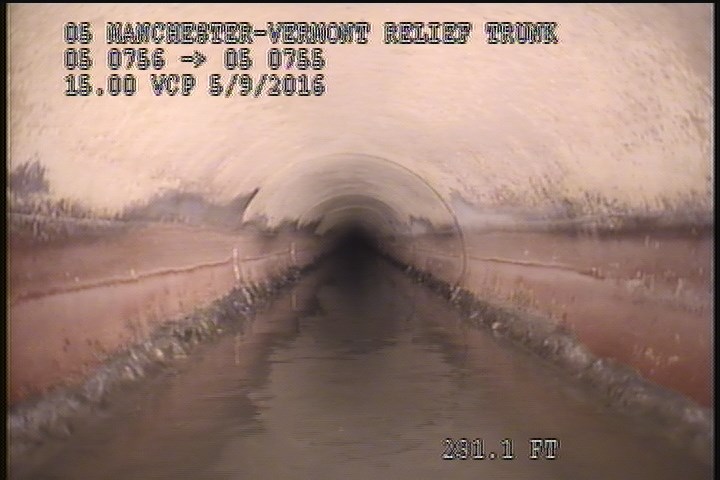

  • General Observation - 15" VCP

    231.1 ft. - General Observation - 15" VCP

All inspections of P05982Work order 0563852

Observations (31)

DistanceCodeObservation
42.2FLHAIRLINE AT JOINTS
18.4FCSLIGHT
413.2FL20% SLIGHT
34.3FCSLIGHT
22.4FCHAIRLINE
22.4FCSLIGHT
231.1MGO15" VCP
38.9FCH
42.2FCHAIRLINE AT JOINTS
10.1FCSLIGHT
42.2FCSLIGHT AT JOINTS
413.2FC50% HAIRLINE
26.2FCHAIRLINE
413.2FC60% SLIGHT
413.2FL30% HAIRLINE
0AMH2:05AM
42.2FLSLIGHT AT JOINTS
0MWM—
14.1FCSLIGHT
18.4FCSLIGHT
30.2FCSLIGHT
6.1FCSLGHT
26.2FCSLIGHT
26.2FCH
10.1FCSLIGHT
6.1FCHAIRLINE
38.3FCSLIGHT
0MWL—
34.3FCH
22.4FCHAIRLINE
413.7AMH3:55AM

Properties (4)

custom_field_three
MULTIPLE SLIGHT
custom_field_two
2
customer
LACSD
datetime
2016-05-09T02:00:00-07:00
