Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 7, 2016, 02:00 PM

  • 15 0383_15 0382_572016_071237.mp4

Date
05/07/2016
W/O
0563341
Weather
Light Rain
Operator/Surveyor
MIRANDA
Sewer ID
Z00598
PipeID
P12309
Time
7:00 AM
Certificate
U-1014-06022542
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7110
Sewer Name
15 BALDWIN PARK TRUNK
City
BALDWIN PARK
Loc. details
Parking Lot
Location Code
G
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
18
Purpose
Routine Assessment
Project
20160507AM_BALDWIN_PARK_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
15 0383
Downstream MH
15 0382
Dir. of Survey
Downstream
Length Surveyed
288.7 ft.
Total Length
288.7 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
7
Pipe schematic from manhole 15 0383 to 15 0382
MH: 15 0383MH: 15 0382downstream0 ft. MGO - General Observation - ROACHES INSIDE THE MH.0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 7:11 AM0 ft. MWL - Water Level, 15 %of cross sectional area2 ft. MMC - Material Change, Other (state in comments) - CONCRETE PIPE2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Start2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO, Start52.4 ft. TFA - Tap Factory Made Active, at 01 o'clock, -, within 8 inches of joint: YES, 4"129.3 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: YES, 4", 6"137.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES138.8 ft. TBA - Tap Break-In Active, at 12 o'clock, -, within 8 inches of joint: YES, 4"202.6 ft. TF - Tap Factory Made, at 01 o'clock, -, within 8 inches of joint: YES, 4" - OPEN286 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO, Finish286 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Finish286.6 ft. MGO - General Observation - ROACHES INSIDE THE MH.286.6 ft. MGO - General Observation - CAPPED CONN. INSIDE THE MH. @ 09 O'CLOCK286.6 ft. MGO - General Observation - ACTIVE CONN. INSIDE THE MH. @ 03 O'CLOCK288.7 ft. AMH - Downstream Manhole, Survey Ends - 7:30 AM

Observation photos (3)

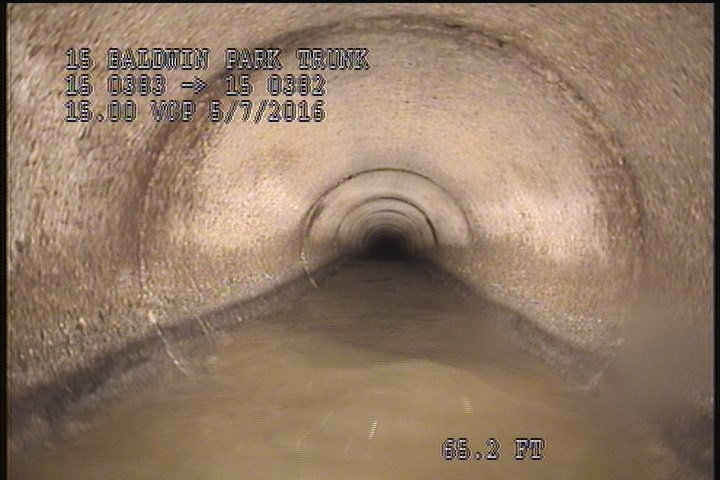

  • Material Change, Other (state in comments) - CONCRETE PIPE

    2 ft. - Material Change, Other (state in comments) - CONCRETE PIPE

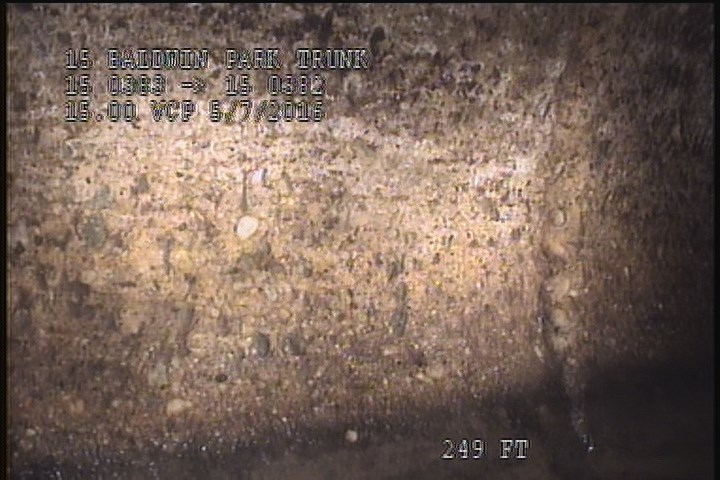

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

    2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

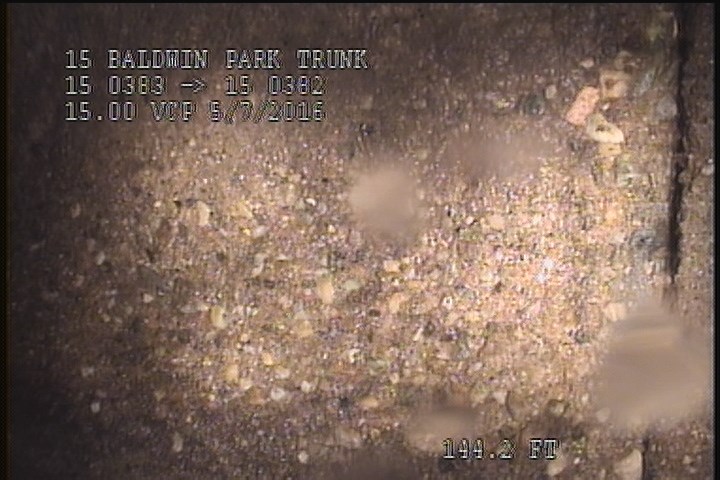

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

All inspections of P12309Work order 0563341

Observations (18)

DistanceCodeObservation
286SSS—
286.6MGOROACHES INSIDE THE MH.
0MGOROACHES INSIDE THE MH.
137.9DAGS—
202.6TFOPEN
0MWM—
286.6MGOCAPPED CONN. INSIDE THE MH. @ 09 O'CLOCK
52.4TFA—
0AMH7:11 AM
288.7AMH7:30 AM
2MMCCONCRETE PIPE
2SAV—
286.6MGOACTIVE CONN. INSIDE THE MH. @ 03 O'CLOCK
2SSS—
286SAV—
129.3TFC—
138.8TBA—
0MWL—

Properties (3)

custom_field_two
3
customer
LACSD
datetime
2016-05-07T07:00:51-07:00
