Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 5, 2016, 06:39 PM

  • 21 1124_21 1123_552016_120550.mp4

Date
05/05/2016
W/O
0568586
Weather
Dry
Operator/Surveyor
MIRANDA
Sewer ID
Z00760
PipeID
P16029
Time
11:39 AM
Certificate
U-1014-06022542
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7108
Sewer Name
21 CLAREMONT OUTFALL TRUNK
City
POMONA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 21
Page No.
10
Purpose
Routine Assessment
Project
20160505AM_CLAREMONT_OUTFALL_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Upstream MH
21 1124
Downstream MH
21 1123
Dir. of Survey
Downstream
Length Surveyed
9.4 ft.
Total Length
9.4 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole 21 1124 to 21 1123
MH: 21 1124MH: 21 1123downstream0 ft. AMH - Upstream Manhole, Survey Begins - 12:04 PM0 ft. MGO - General Observation - CORRODED CHANNEL0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 15 %of cross sectional area8.1 ft. MGO - General Observation - SLIGHT GREASE THROUGHOUT THE REACH8.1 ft. MGO - General Observation - ROACHES INSIDE THE MH.9.4 ft. AMH - Downstream Manhole, Survey Ends - 12:10 PM

Observation photos (3)

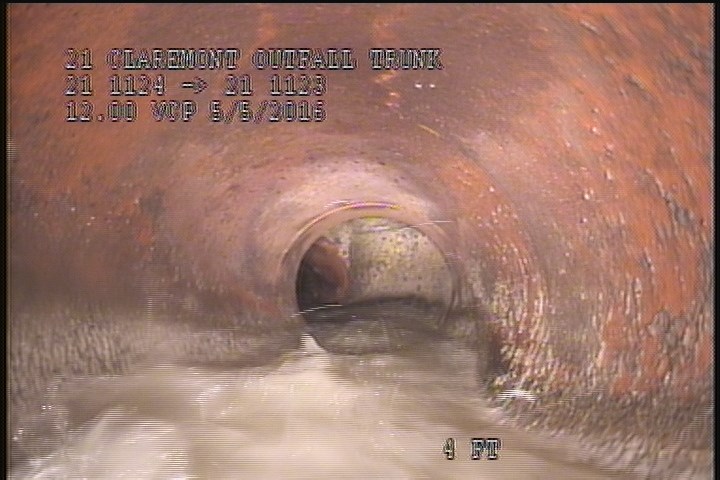

  • Upstream Manhole, Survey Begins - 12:04 PM

    0 ft. - Upstream Manhole, Survey Begins - 12:04 PM

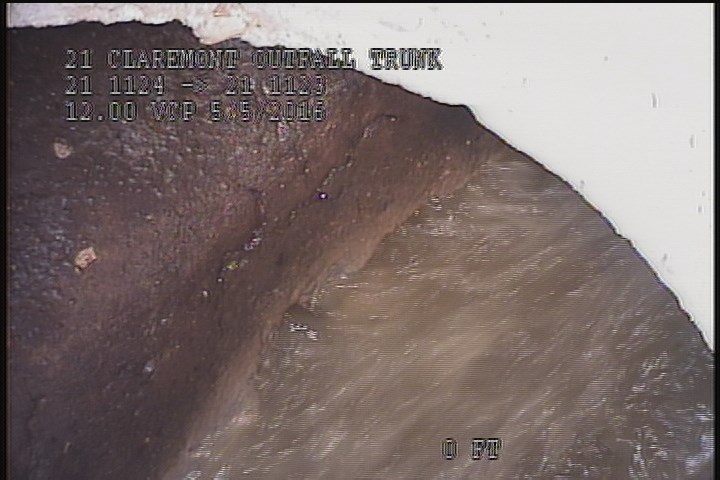

  • General Observation - CORRODED CHANNEL

    0 ft. - General Observation - CORRODED CHANNEL

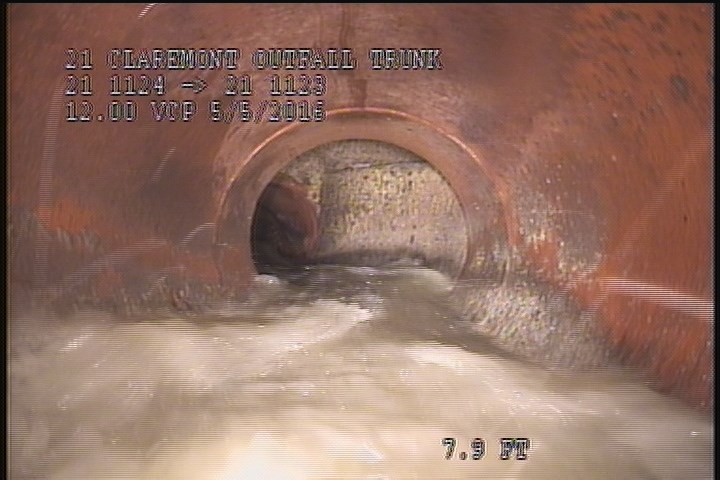

  • Water Level, 15 %of cross sectional area

    0 ft. - Water Level, 15 %of cross sectional area

All inspections of P16029Work order 0568586

Observations (7)

DistanceCodeObservation
8.1MGOSLIGHT GREASE THROUGHOUT THE REACH
0AMH12:04 PM
9.4AMH12:10 PM
8.1MGOROACHES INSIDE THE MH.
0MGOCORRODED CHANNEL
0MWM—
0MWL—

Properties (3)

custom_field_two
4
customer
LACSD
datetime
2016-05-05T11:39:09-07:00
