Wastewater/Activity/PacpInspection/1.0May 5, 2016, 06:15 PM
21 1121A_21 1121_552016_111738.mp4
- Date
- 05/05/2016
- W/O
- 0568586
- Weather
- Dry
- Operator/Surveyor
- MIRANDA
- Sewer ID
- Z00760
- PipeID
- P16026
- Time
- 11:15 AM
- Certificate
- U-1014-06022542
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7108
- Sewer Name
- 21 CLAREMONT OUTFALL TRUNK
- City
- POMONA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 10
- Purpose
- Routine Assessment
- Project
- 20160505AM_CLAREMONT_OUTFALL_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Upstream MH
- 21 1121A
- Downstream MH
- 21 1121
- Dir. of Survey
- Downstream
- Length Surveyed
- 217.4 ft.
- Total Length
- 217.4 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 0
- Overall Quick
- —
- Overall Rating
- 0
Observation photos (3)

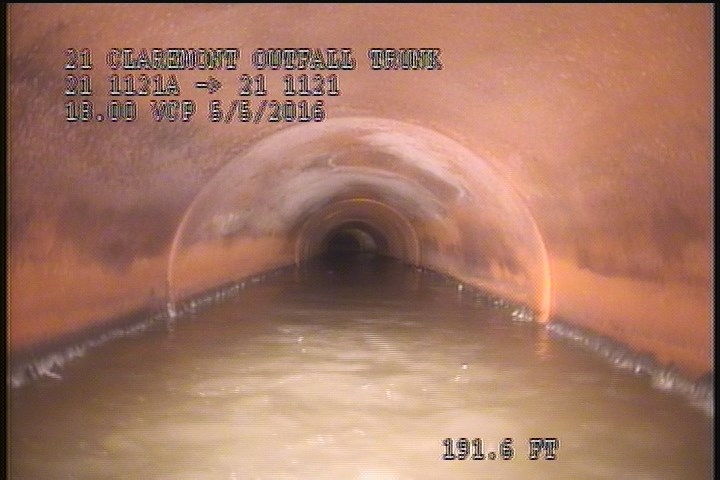

0 ft. - Water Mark, 40 %of cross sectional area

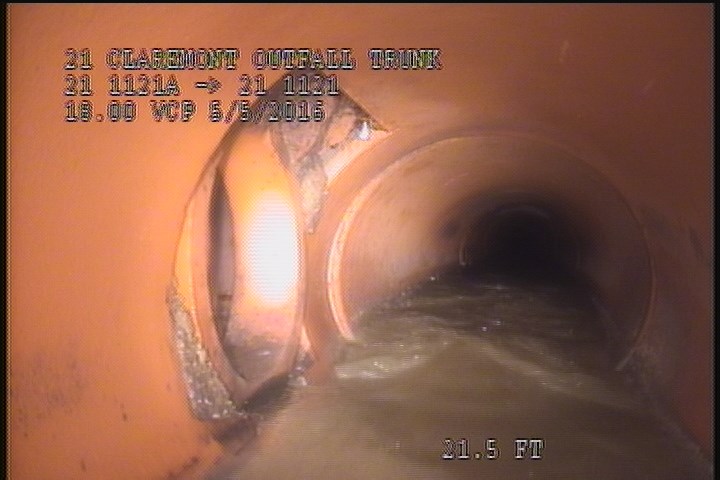

21.5 ft. - General Photograph - BREAK-IN CONN.

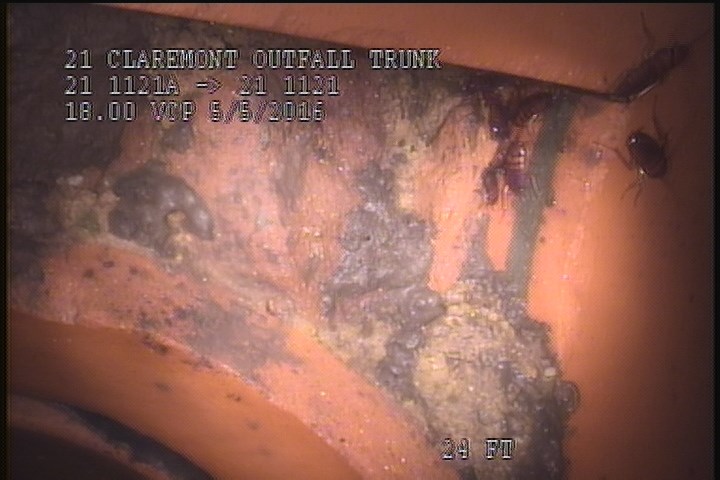

24 ft. - Tap Break-In, at 09 o'clock, -, within 8 inches of joint: YES, 6" - OPEN
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 216.4 | MGO | ROACHES INSIDE THE MH. |
| 0 | AMH | 11:16 AM |
| 0 | MWM | — |
| 133.2 | TBA | — |
| 24 | TB | OPEN |
| 0 | MGO | ROACHES INSIDE THE MH. |
| 204.2 | TF | — |
| 0 | MWL | — |
| 21.5 | MGP | BREAK-IN CONN. |
| 216.4 | MGO | SLIGHT GREASE THROUGHOUT THE REACH |
| 0 | MGO | ACTIVE CONN. INSIDE THE MH. @ 09 O'CLOCK |
| 217.4 | AMH | 11:28 AM |
| 59 | TBA | — |
Properties (3)
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-05-05T11:15:50-07:00
