Wastewater/Activity/PacpInspection/1.0Apr 30, 2016, 08:55 AM
- Date
- 04/30/2016
- W/O
- 0563839
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00016
- PipeID
- P00007
- Time
- 1:55 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G6697
- Sewer Name
- 08 MAIN STREET TRUNK
- City
- CARSON
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 07
- Purpose
- Capital Improvement Program Assesment
- Project
- 20160430MDM_MAIN_STREET_TRUNK
- Material
- RCP-CTL
- Shape
- Circular
- Height
- 33 in.
- Upstream MH
- 08 0007
- Downstream MH
- 08 0006
- Dir. of Survey
- Downstream
- Length Surveyed
- 15 ft.
- Total Length
- 15 ft.
- Structural Index
- 5
- Structural Quick
- 5242
- Structural Rating
- 18
- O&M Index
- 5
- O&M Quick
- 5100
- O&M Rating
- 5
- Overall Index
- 5
- Overall Quick
- —
- Overall Rating
- 23
Observation photos (5)

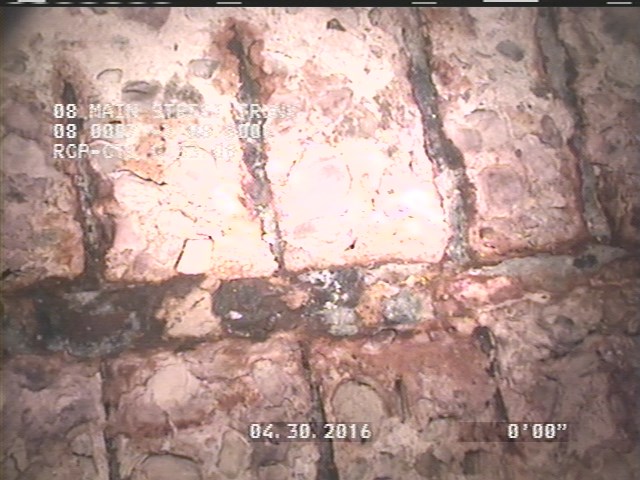

2 ft. - Surface Reinforcement Visible, from 11 to 02 o'clock, within 8 inches of joint: YES, Start - LONG & CIRCUM REBAR

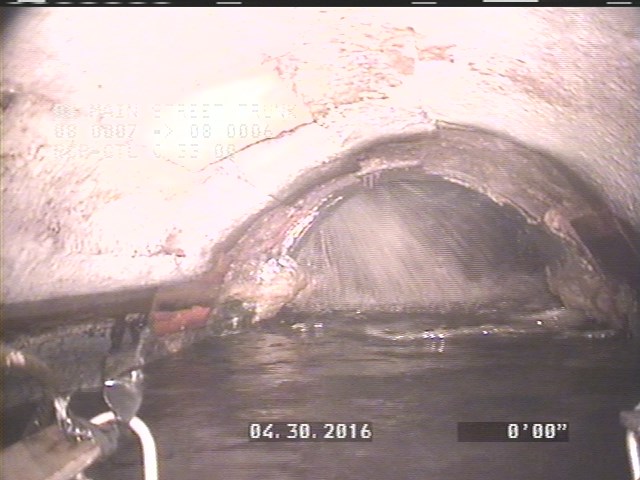

5 ft. - General Observation - MAG COAT 70% START

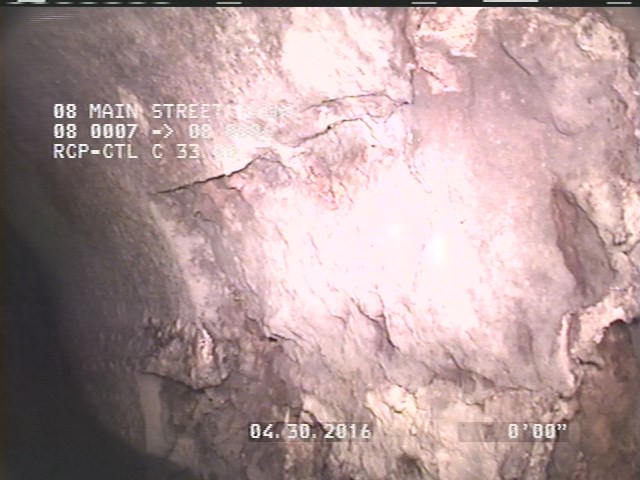

5 ft. - General Observation - MISSING BTILES 10% START UNDER MAG COAT

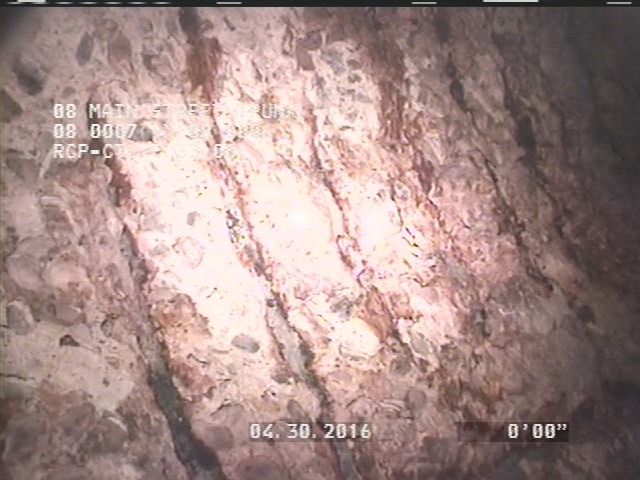

5 ft. - General Photograph

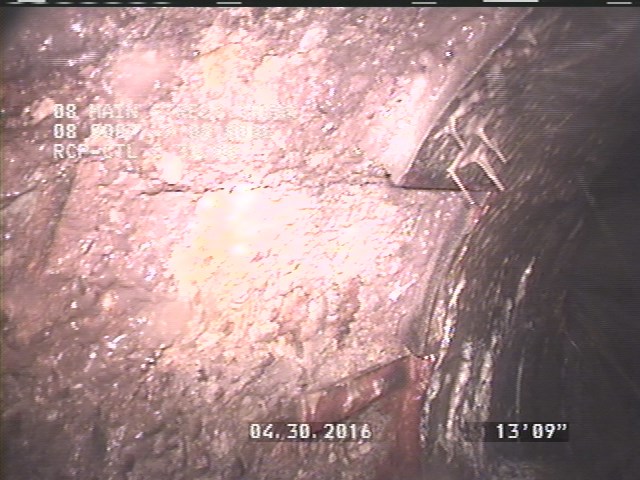

13.8 ft. - General Observation - MISSING TILES 90%
Observations (16)
| Distance | Code | Observation |
|---|---|---|
| 14.5 | SAM | — |
| 14.5 | MGO | MAG COAT 70% FINISH |
| 5 | SRV | — |
| 5 | MGO | MAG COAT 70% START |
| 0 | MWL | — |
| 2 | SRV | LONG & CIRCUM REBAR |
| 2 | SAM | SEVERE AGG |
| 15 | AMH | 7:30AM |
| 0 | MGO | MH CONN OPEN 9:00 |
| 14.5 | MGO | MH CONN ACTIVE 9:00 |
| 5 | MGO | MISSING BTILES 10% START UNDER MAG COAT |
| 5 | MGP | — |
| 0 | AMH | 7:15AM |
| 0 | MWM | — |
| 13.8 | MGO | MISSING TILES 90% |
| 0 | MGO | MH CONN ACTIVE 3:00 |
Properties (4)
- custom_field_three
- VISIBLE LONG & CIRCUM REBAR
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2016-04-30T01:55:46-07:00
