Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 30, 2016, 08:53 AM
Date
04/30/2016
W/O
0563839
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00016
PipeID
P00009
Time
1:53 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6697
Sewer Name
08 MAIN STREET TRUNK
City
CARSON
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
07
Purpose
Capital Improvement Program Assesment
Project
20160430MDM_MAIN_STREET_TRUNK
Material
RCP-CTL
Shape
Circular
Height
33 in.
Upstream MH
08 0009
Downstream MH
08 0008
Dir. of Survey
Downstream
Length Surveyed
305.9 ft.
Total Length
305.9 ft.
Structural Index
3
Structural Quick
3K00
Structural Rating
183
O&M Index
2
O&M Quick
422J
O&M Rating
120
Overall Index
3
Overall Quick
—
Overall Rating
303
Pipe schematic from manhole 08 0009 to 08 0008
MH: 08 0009MH: 08 0008downstream0 ft. AMH - Upstream Manhole, Survey Begins - 5:00AM0 ft. MWM - Water Mark, 60 %of cross sectional area0 ft. MWL - Water Level, 40 %of cross sectional area2 ft. MGO - General Observation - MAG COAT 10% START2 ft. MGO - General Observation - MISSING TLES 10% START 9:00 TO 3:002 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG AREAS OF MISSING TILES25.7 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start48.7 ft. MGO - General Observation - MISSING TILES 20%START53.9 ft. MGO - General Observation - MAG COAT 100% STAR58.5 ft. MWM - Water Mark, 70 %of cross sectional area305 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish305 ft. MGO - General Observation - MAG COAT 100% FINISH305 ft. MGO - General Observation - MISSING TILES 20% FINISH305 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish - SEVERE AGG305.9 ft. AMH - Downstream Manhole, Survey Ends - 6:00AM-REEL PROBLEMS CCTV VAN

Observation photos (5)

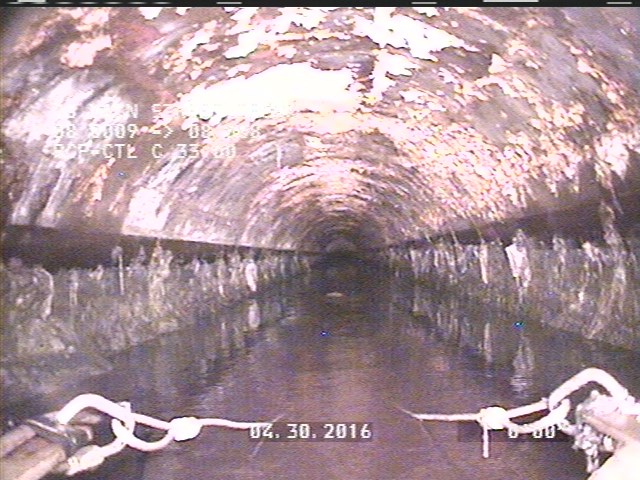

  • General Observation - MISSING TLES 10% START 9:00 TO 3:00

    2 ft. - General Observation - MISSING TLES 10% START 9:00 TO 3:00

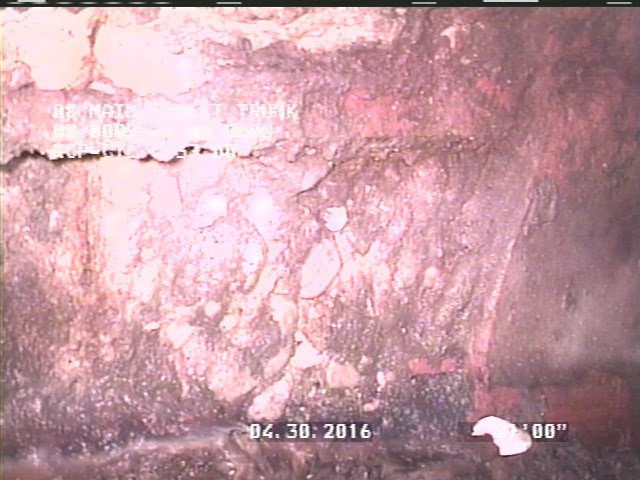

  • Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG AREAS OF MISSING TILES

    2 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG AREAS OF MISSING TILES

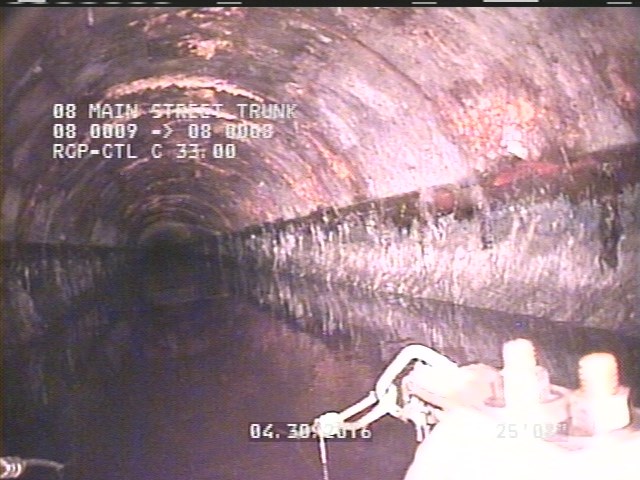

  • Deposits Attached Grease, 10 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    25.7 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

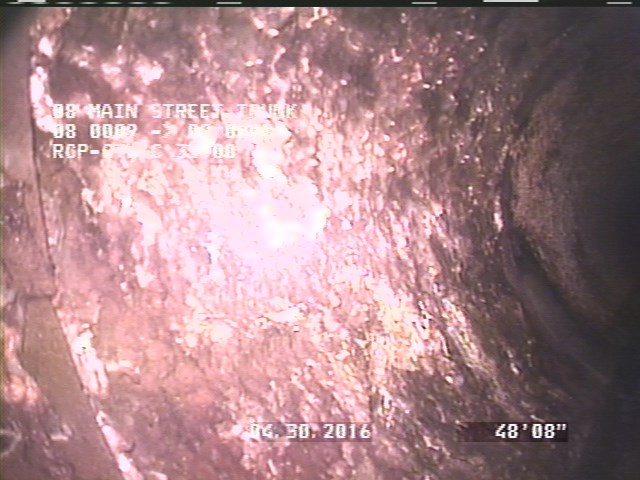

  • General Observation - MISSING TILES 20%START

    48.7 ft. - General Observation - MISSING TILES 20%START

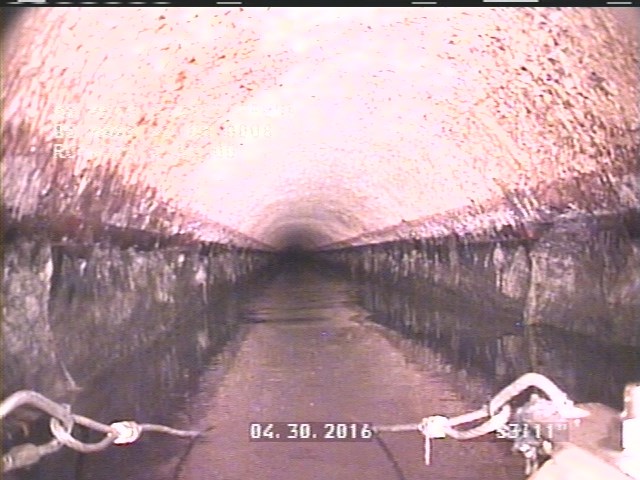

  • General Observation - MAG COAT 100% STAR

    53.9 ft. - General Observation - MAG COAT 100% STAR

All inspections of P00009Work order 0563839

Observations (15)

DistanceCodeObservation
53.9MGOMAG COAT 100% STAR
305DAGS—
58.5MWM—
305MGOMAG COAT 100% FINISH
2MGOMAG COAT 10% START
0AMH5:00AM
48.7MGOMISSING TILES 20%START
25.7DAGS—
0MWM—
0MWL—
305MGOMISSING TILES 20% FINISH
305.9AMH6:00AM-REEL PROBLEMS CCTV VAN
2MGOMISSING TLES 10% START 9:00 TO 3:00
305SAVSEVERE AGG
2SAVSEVERE AGG AREAS OF MISSING TILES
