Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 28, 2016, 07:32 AM

  • C 0119_C 0118_4282016_004254.mp4

Date
04/28/2016
W/O
0561707
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00127
PipeID
P09639
Time
12:32 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0117
Sewer Name
C JOINT OUTFALL C - UNIT 4B
City
LONG BEACH
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 03
Page No.
20
Purpose
Maintenance Related
Project
20160428MDM_JOINT_OUTFALL_C_UNIT_4B
Material
Reinforced Concrete Pipe
Shape
Circular
Height
48 in.
Upstream MH
C 0119
Downstream MH
C 0118
Dir. of Survey
Downstream
Length Surveyed
3 ft.
Total Length
3 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
4
Overall Quick
—
Overall Rating
4
Pipe schematic from manhole C 0119 to C 0118
MH: C 0119MH: C 0118downstream0 ft. AMH - Downstream Manhole, Survey Begins - 12:35AM0 ft. MWL - Water Level, 30 %of cross sectional area0 ft. MWM - Water Mark, 30 %of cross sectional area1 ft. MGO - General Observation - FLOATING SLUDGE MH#C1182.2 ft. DSZ - Deposits Settled Other, 30 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES - SLUDGE & DEBRIE-APPOX 15' LONG2.2 ft. MGP - General Photograph - FLOATING SLUDGE2.3 ft. MGO - General Observation - MH ROLLER SHEVE &POLE USED MH#A 247 DIVERTING MORE FLOW3 ft. AMH - Upstream Manhole, Survey Ends - 1:45AM

Observation photos (4)

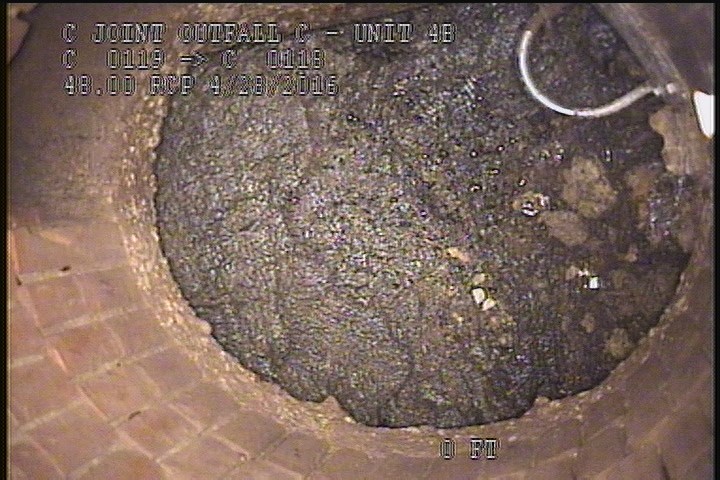

  • General Observation - FLOATING SLUDGE MH#C118

    1 ft. - General Observation - FLOATING SLUDGE MH#C118

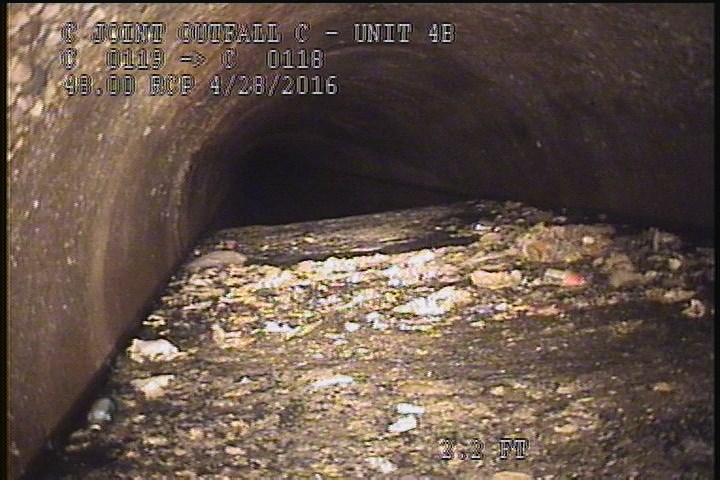

  • Deposits Settled Other, 30 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES - SLUDGE & DEBRIE-APPOX 15' LONG

    2.2 ft. - Deposits Settled Other, 30 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES - SLUDGE & DEBRIE-APPOX 15' LONG

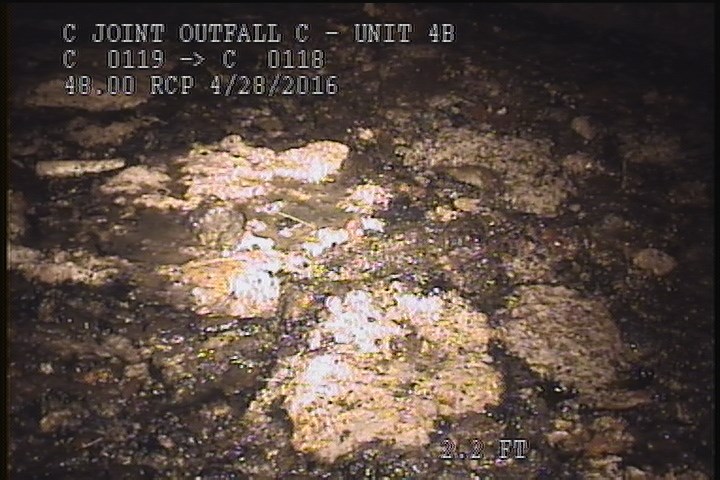

  • General Photograph - FLOATING SLUDGE

    2.2 ft. - General Photograph - FLOATING SLUDGE

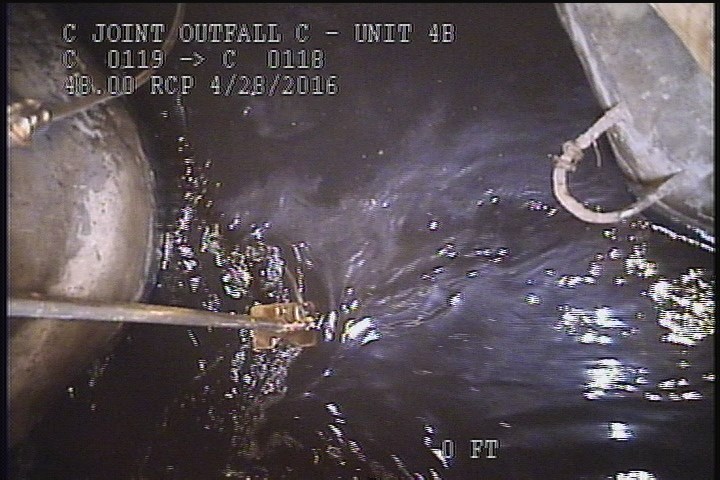

  • General Observation - MH ROLLER SHEVE &POLE USED MH#A 247 DIVERTING MORE FLOW

    2.3 ft. - General Observation - MH ROLLER SHEVE &POLE USED MH#A 247 DIVERTING MORE FLOW

All inspections of P09639Work order 0561707

Observations (8)

DistanceCodeObservation
1MGOFLOATING SLUDGE MH#C118
0AMH12:35AM
0MWL—
0MWM—
3AMH1:45AM
2.2DSZSLUDGE & DEBRIE-APPOX 15' LONG
2.3MGOMH ROLLER SHEVE &POLE USED MH#A 247 DIVERTING MORE FLOW
2.2MGPFLOATING SLUDGE

Properties (2)

customer
LACSD
datetime
2016-04-28T00:32:18-07:00
