Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 2, 2016, 05:28 PM

  • 18 0041_18 0040_522016_103028.mp4

Date
05/02/2016
W/O
0563300
Weather
Dry
Operator/Surveyor
MIRANDA
Sewer ID
Z00689
PipeID
P13856
Time
10:28 AM
Certificate
U-1014-06022542
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7104
Sewer Name
18 MILLS AVENUE TRUNK
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
21
Purpose
Routine Assessment
Project
20160428AM_MILLS_AVENUE_TRUNK
Material
NRCP
Shape
Circular
Height
12 in.
Upstream MH
18 0041
Downstream MH
18 0040
Dir. of Survey
Downstream
Length Surveyed
245.4 ft.
Total Length
245.4 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
5
Pipe schematic from manhole 18 0041 to 18 0040
MH: 18 0041MH: 18 0040downstream0 ft. AMH - Upstream Manhole, Survey Begins - 10:29 AM0 ft. MGO - General Observation - ROACHES INSIDE THE MH.0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. MWM - Water Mark, 25 %of cross sectional area2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Start2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO, Start24.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"30.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"63.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"69.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"142.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"151.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"209.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"244.4 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO, Finish244.4 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Finish244.9 ft. MGO - General Observation - ROACHES INSIDE THE MH.244.9 ft. MGO - General Observation - ACTIVE CONN. INSIDE THE MH. @ 03 O'CLOCK245 ft. MGO - General Observation - ACTIVE CONN. INSIDE THE MH. @ 09 O'CLOCK245.4 ft. AMH - Downstream Manhole, Survey Ends - 10:49 AM

Observation photos (2)

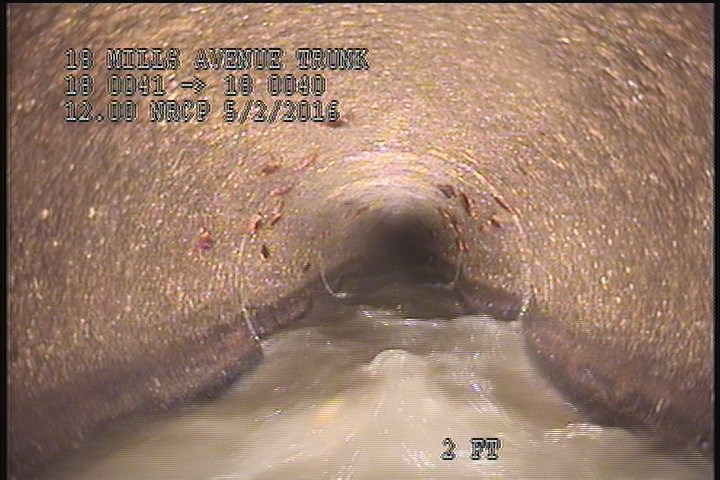

  • Upstream Manhole, Survey Begins - 10:29 AM

    0 ft. - Upstream Manhole, Survey Begins - 10:29 AM

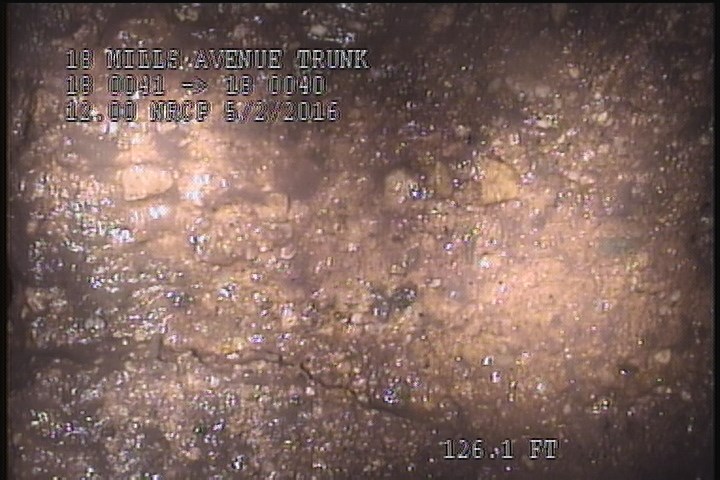

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

All inspections of P13856Work order 0563300

Observations (19)

DistanceCodeObservation
142.5TFC—
63.8TFC—
0AMH10:29 AM
244.9MGOROACHES INSIDE THE MH.
244.9MGOACTIVE CONN. INSIDE THE MH. @ 03 O'CLOCK
244.4SSS—
245MGOACTIVE CONN. INSIDE THE MH. @ 09 O'CLOCK
2SAV—
0MGOROACHES INSIDE THE MH.
209.4TFC—
24.4TFC—
0MWL—
2SSS—
0MWM—
69.9TFC—
30.1TFC—
151.7TFC—
245.4AMH10:49 AM
244.4SAV—

Properties (3)

custom_field_two
3
customer
LACSD
datetime
2016-05-02T10:28:08-07:00
