Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 2, 2016, 05:00 PM

  • 18 0042_18 0041_522016_100607.mp4

Date
05/02/2016
W/O
0563300
Weather
Dry
Operator/Surveyor
MIRANDA
Sewer ID
Z00689
PipeID
P13857
Time
10:00 AM
Certificate
U-1014-06022542
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7104
Sewer Name
18 MILLS AVENUE TRUNK
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
21
Purpose
Routine Assessment
Project
20160428AM_MILLS_AVENUE_TRUNK
Material
NRCP
Shape
Circular
Height
12 in.
Upstream MH
18 0042
Downstream MH
18 0041
Dir. of Survey
Downstream
Length Surveyed
254.6 ft.
Total Length
254.6 ft.
Structural Index
3
Structural Quick
3421
Structural Rating
14
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
14
Pipe schematic from manhole 18 0042 to 18 0041
MH: 18 0042MH: 18 0041downstream0 ft. MGO - General Observation - CAPPED CONN. INSIDE THE MH. @ 03 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Begins - 10:01 AM0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MGO - General Observation - ROACHES INSIDE THE MH.2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO, Start2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Start4.4 ft. FL - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES56.9 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: YES, 6"105.6 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: YES, 6"113.6 ft. FL - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES - POSSIBLY BROKEN114.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"169.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"175.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"224.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"226 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES227.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"252.7 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Finish252.7 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO, Finish253.5 ft. MGO - General Observation - ROACHES INSIDE THE MH.254.6 ft. AMH - Downstream Manhole, Survey Ends - 10:27 AM

Observation photos (4)

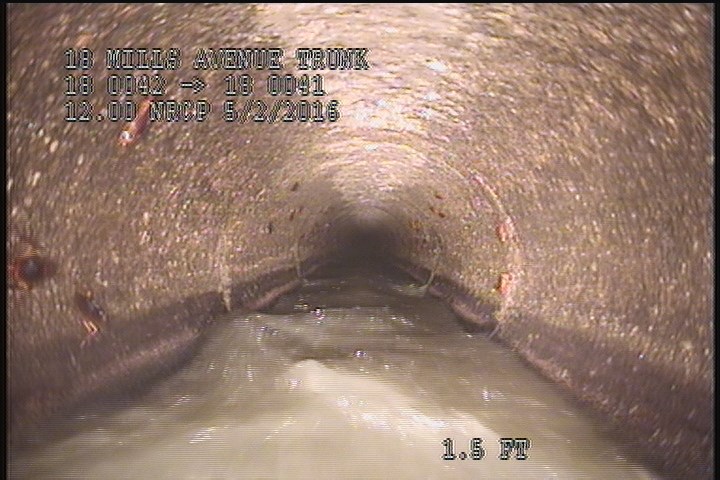

  • Upstream Manhole, Survey Begins - 10:01 AM

    0 ft. - Upstream Manhole, Survey Begins - 10:01 AM

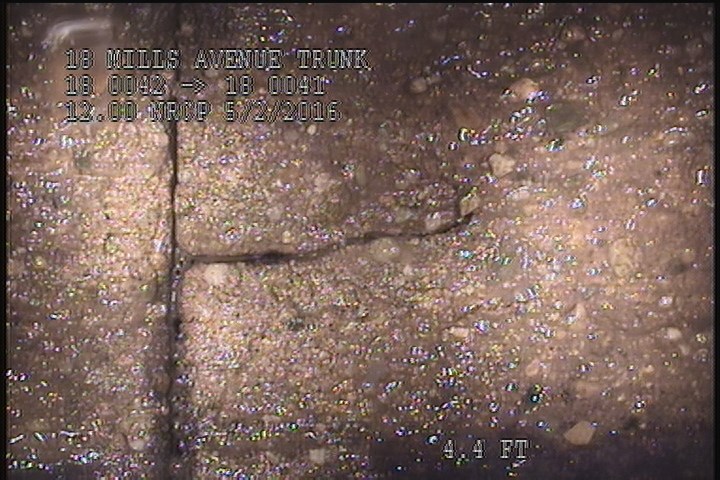

  • Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES

    4.4 ft. - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES

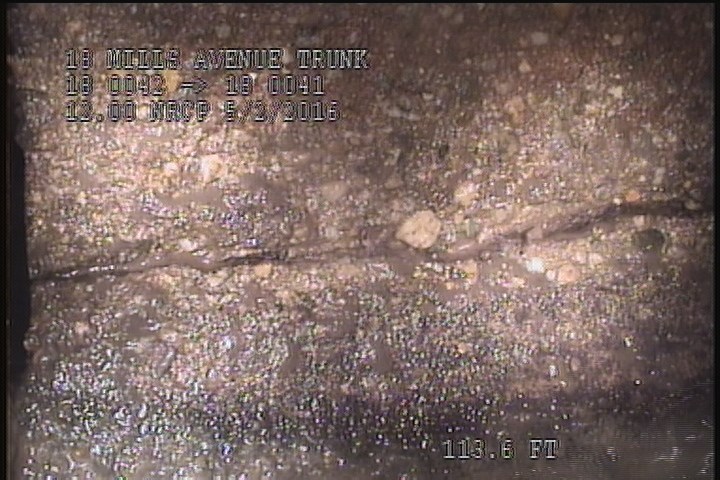

  • Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES - POSSIBLY BROKEN

    113.6 ft. - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES - POSSIBLY BROKEN

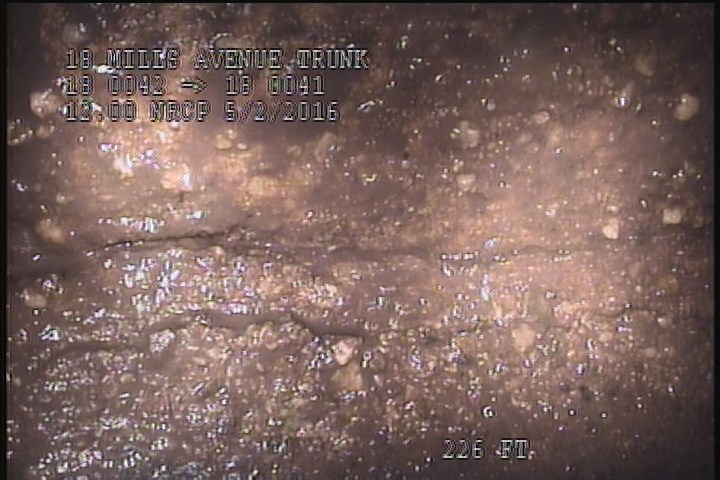

  • Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES

    226 ft. - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES

All inspections of P13857Work order 0563300

Observations (21)

DistanceCodeObservation
105.6TFC—
224.3TFC—
253.5MGOROACHES INSIDE THE MH.
2SSS—
252.7SAV—
169.9TFC—
114.9TFC—
0MGOCAPPED CONN. INSIDE THE MH. @ 03 O'CLOCK
252.7SSS—
0AMH10:01 AM
113.6FLPOSSIBLY BROKEN
2SAV—
56.9TFC—
0MWL—
4.4FL—
226FL—
227.1TFC—
254.6AMH10:27 AM
0MWM—
175.7TFC—
0MGOROACHES INSIDE THE MH.

Properties (4)

custom_field_three
POSSIBLY BROKEN/FRACTURE
custom_field_two
2
customer
LACSD
datetime
2016-05-02T10:00:21-07:00
