Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 30, 2016, 03:06 PM

  • 18 0048_18 0047_4302016_080810.mp4

Date
04/30/2016
W/O
0563300
Weather
Light Rain
Operator/Surveyor
MIRANDA
Sewer ID
Z00689
PipeID
P13863
Time
8:06 AM
Certificate
U-1014-06022542
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7102
Sewer Name
18 MILLS AVENUE TRUNK
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
21
Purpose
Routine Assessment
Project
20160428AM_MILLS_AVENUE_TRUNK
Material
NRCP
Shape
Circular
Height
12 in.
Upstream MH
18 0048
Downstream MH
18 0047
Dir. of Survey
Downstream
Length Surveyed
252.6 ft.
Total Length
252.6 ft.
Structural Index
3
Structural Quick
4132
Structural Rating
14
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
14
Pipe schematic from manhole 18 0048 to 18 0047
MH: 18 0048MH: 18 0047downstream0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 8:06 AM0 ft. MGO - General Observation - ROACHES INSIDE THE MH.0 ft. MGO - General Observation - ACTIVE CONN. INSIDE THE MH. @ 03 O'CLOCK2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Start2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO, Start87.1 ft. FL - Fracture Longitudinal, at 04 o'clock, within 8 inches of joint: YES123.4 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES241.4 ft. CL - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES250.5 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO, Finish250.5 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Finish250.9 ft. MGO - General Observation - ROACHES INSIDE THE MH.250.9 ft. MGO - General Observation - CAPPED CONN. INSIDE THE MH. @ 08 O'CLOCK252.6 ft. AMH - Downstream Manhole, Survey Ends - 8:27 AM

Observation photos (2)

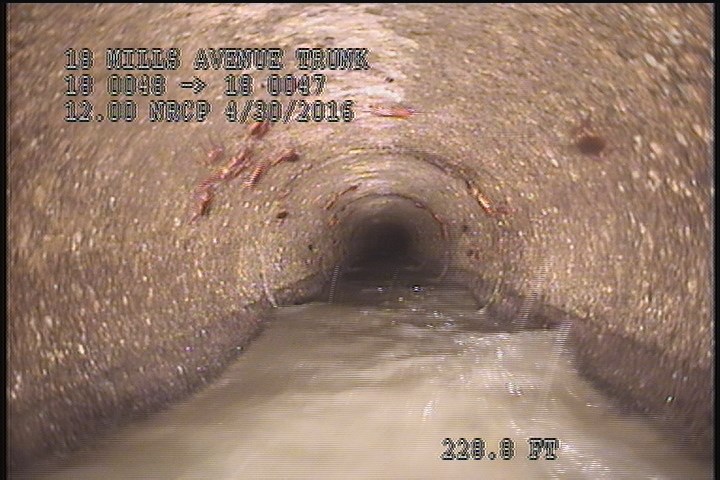

  • Upstream Manhole, Survey Begins - 8:06 AM

    0 ft. - Upstream Manhole, Survey Begins - 8:06 AM

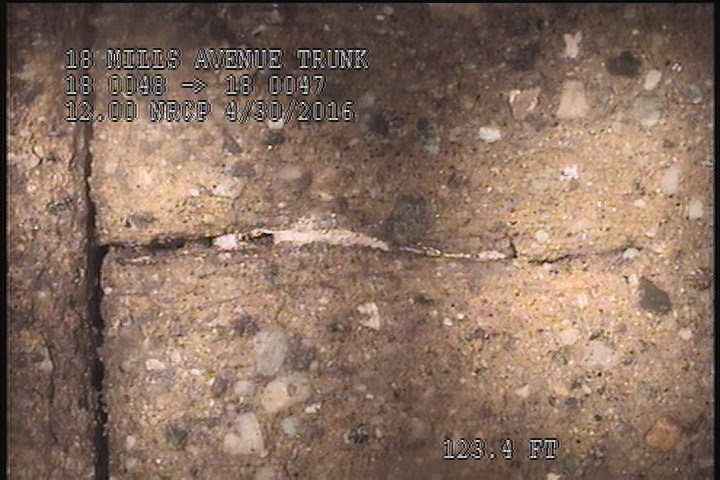

  • Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    123.4 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

All inspections of P13863Work order 0563300

Observations (15)

DistanceCodeObservation
250.9MGOROACHES INSIDE THE MH.
2SAV—
0MWL—
241.4CL—
252.6AMH8:27 AM
0MWM—
250.5SSS—
0AMH8:06 AM
2SSS—
87.1FL—
123.4FM—
0MGOROACHES INSIDE THE MH.
0MGOACTIVE CONN. INSIDE THE MH. @ 03 O'CLOCK
250.5SAV—
250.9MGOCAPPED CONN. INSIDE THE MH. @ 08 O'CLOCK

Properties (3)

custom_field_two
3
customer
LACSD
datetime
2016-04-30T08:06:05-07:00
