Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 28, 2016, 04:51 PM

  • 18 0059_18 0058_4282016_095446.mp4

Date
04/28/2016
W/O
0563396
Weather
Dry
Operator/Surveyor
MIRANDA
Sewer ID
Z00689
PipeID
P13873
Time
9:51 AM
Certificate
U-1014-06022542
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7099
Sewer Name
18 MILLS AVENUE TRUNK
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
21
Purpose
Routine Assessment
Project
20160428AM_MILLS_AVENUE_TRUNK
Material
NRCP
Shape
Circular
Height
12 in.
Upstream MH
18 0059
Downstream MH
18 0058
Dir. of Survey
Downstream
Length Surveyed
321.4 ft.
Total Length
321.4 ft.
Structural Index
3
Structural Quick
5141
Structural Rating
27
O&M Index
1
O&M Quick
1100
O&M Rating
1
Overall Index
3
Overall Quick
—
Overall Rating
28
Pipe schematic from manhole 18 0059 to 18 0058
MH: 18 0059MH: 18 0058downstream0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MGO - General Observation - CAPPED CONN. INSIDE THE MH. @ 09 O'CLOCK0 ft. MGO - General Observation - ROACHES INSIDE THE MH.0 ft. MGO - General Observation - ACTIVE CONN. INSIDE THE MH. @ 03 O'CLOCK0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 9:52 AM2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Start2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start3.9 ft. FM - Fracture Multiple, from 10 to 04 o'clock, within 8 inches of joint: YES29.6 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 6" - OPEN55.7 ft. RFJ - Roots Fine Joint, from 02 to 04 o'clock, within 8 inches of joint: YESR77 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES79.9 ft. B - Broken, from 02 to 05 o'clock, within 8 inches of joint: YES110.1 ft. CL - Crack Longitudinal, at 08 o'clock, within 8 inches of joint: YES114.6 ft. TFA - Tap Factory Made Active, at 11 o'clock, -, within 8 inches of joint: YES, 6"120.5 ft. TF - Tap Factory Made, at 01 o'clock, -, within 8 inches of joint: YES, 6" - OPEN141.9 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: YES, 6" - OPEN171 ft. CL - Crack Longitudinal, at 04 o'clock, within 8 inches of joint: YES195.3 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES205.8 ft. TF - Tap Factory Made, at 01 o'clock, -, within 8 inches of joint: YES, 6" - OPEN211.9 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: YES, 6" - OPEN232.9 ft. TF - Tap Factory Made, at 01 o'clock, -, within 8 inches of joint: YES, 6" - OPEN237.7 ft. FL - Fracture Longitudinal, at 05 o'clock, within 8 inches of joint: YES278.3 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: YES, 6" - OPEN281.4 ft. TF - Tap Factory Made, at 01 o'clock, -, within 8 inches of joint: YES, 6" - OPEN306 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - OPEN320 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Finish320 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish320 ft. MGO - General Observation - MAG COAT SPORADICALLY THROUGHOUT THE REACH FROM 10 TO 02 O'CLOCK320.4 ft. MGO - General Observation - ROACHES INSIDE THE MH.321.4 ft. AMH - Downstream Manhole, Survey Ends - 10:25 AM

Observation photos (3)

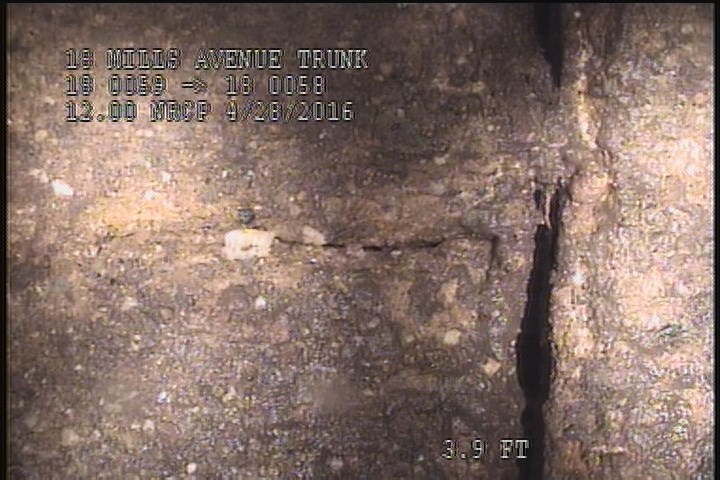

  • Fracture Multiple, from 10 to 04 o'clock, within 8 inches of joint: YES

    3.9 ft. - Fracture Multiple, from 10 to 04 o'clock, within 8 inches of joint: YES

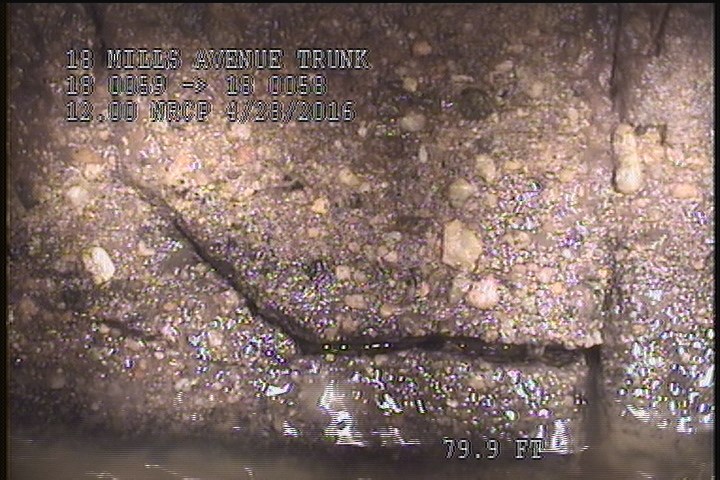

  • Broken, from 02 to 05 o'clock, within 8 inches of joint: YES

    79.9 ft. - Broken, from 02 to 05 o'clock, within 8 inches of joint: YES

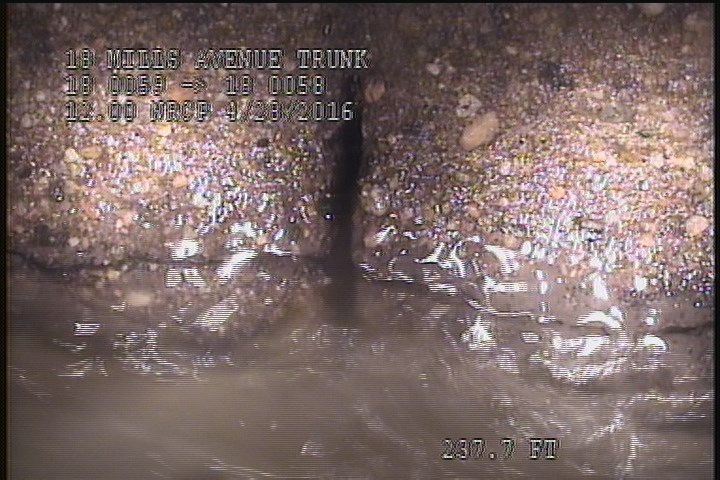

  • Fracture Longitudinal, at 05 o'clock, within 8 inches of joint: YES

    237.7 ft. - Fracture Longitudinal, at 05 o'clock, within 8 inches of joint: YES

All inspections of P13873Work order 0563396

Observations (31)

DistanceCodeObservation
141.9TFOPEN
0MWM—
171CL—
3.9FM—
79.9B—
120.5TFOPEN
237.7FL—
195.3CM—
281.4TFOPEN
55.7RFJ—
320.4MGOROACHES INSIDE THE MH.
110.1CL—
77CM—
320SAV—
0MGOCAPPED CONN. INSIDE THE MH. @ 09 O'CLOCK
306TFOPEN
320SSS—
278.3TFOPEN
2SAV—
0MGOROACHES INSIDE THE MH.
0MGOACTIVE CONN. INSIDE THE MH. @ 03 O'CLOCK
232.9TFOPEN
211.9TFOPEN
2SSS—
320MGOMAG COAT SPORADICALLY THROUGHOUT THE REACH FROM 10 TO 02 O'CLOCK
205.8TFOPEN
0MWL—
114.6TFA—
321.4AMH10:25 AM
0AMH9:52 AM
29.6TFOPEN

Properties (4)

custom_field_three
BROKEN PIPE
custom_field_two
1
customer
LACSD
datetime
2016-04-28T09:51:41-07:00
