Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 27, 2016, 07:22 PM

  • C 0312A_C 0312_4272016_124755.mp4

Date
04/27/2016
W/O
0563383
Weather
Dry
Operator/Surveyor
MIRANDA
Sewer ID
Z00135
PipeID
P09774
Time
12:22 PM
Certificate
U-1014-06022542
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7098
Sewer Name
C JOINT OUTFALL C - UNIT 6F
City
CERRITOS
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 19
Page No.
04
Purpose
Routine Assessment
Project
20160427AM_JOINT_OUTFALL_C_UNIT_6F
Material
Reinforced Concrete Pipe
Shape
Circular
Height
15 in.
Upstream MH
C 0312A
Downstream MH
C 0312
Dir. of Survey
Downstream
Length Surveyed
156.4 ft.
Total Length
156.4 ft.
Structural Index
3
Structural Quick
5131
Structural Rating
10
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
3
Overall Quick
—
Overall Rating
12
Pipe schematic from manhole C 0312A to C 0312
MH: C 0312AMH: C 0312downstream0 ft. AMH - Upstream Manhole, Survey Begins - 12:47 PM0 ft. MWL - Water Level, 35 %of cross sectional area0 ft. MGO - General Observation - ACTIVE CONN. INSIDE THE MH. @ 09 O'CLOCK0 ft. MGO - General Observation - ACTIVE CONN. INSIDE THE MH. @ 03 O'CLOCK0 ft. MWM - Water Mark, 40 %of cross sectional area0 ft. MGO - General Observation - ROACHES INSIDE THE MH.2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO, Start2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Start21.3 ft. TBC - Tap Break-In Capped, at 01 o'clock, -, within 8 inches of joint: NO, 6"83.1 ft. MGP - General Photograph - REBAR83.1 ft. SRV - Surface Reinforcement Visible, at 01 o'clock, within 8 inches of joint: NO154.7 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO, Finish154.7 ft. MGO - General Observation - SLIGHT TO MODERATE GREASE THROUGHOUT THE REACH154.7 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Finish155.2 ft. MGO - General Observation - ROACHES INSIDE THE MH.156.4 ft. AMH - Downstream Manhole, Survey Ends - 1:08 PM, FOOTAGE DOES NOT MATCH THE PAPERWORK

Observation photos (5)

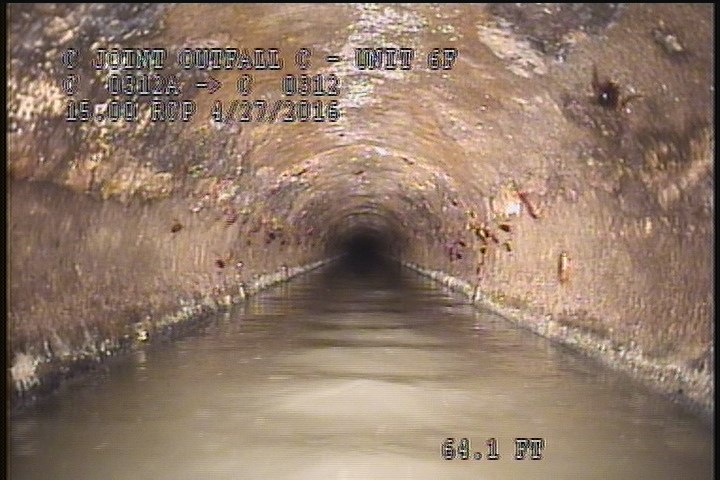

  • Water Level, 35 %of cross sectional area

    0 ft. - Water Level, 35 %of cross sectional area

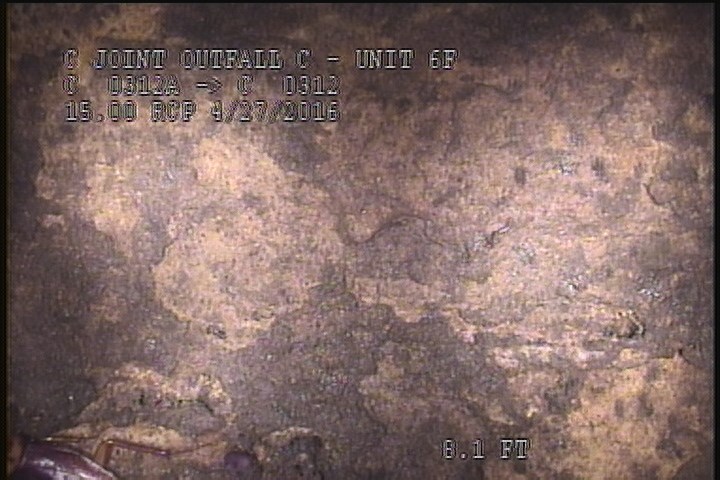

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

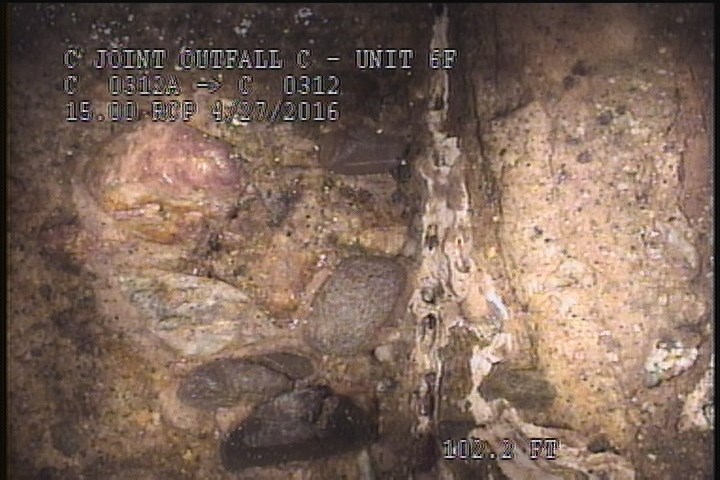

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

    2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

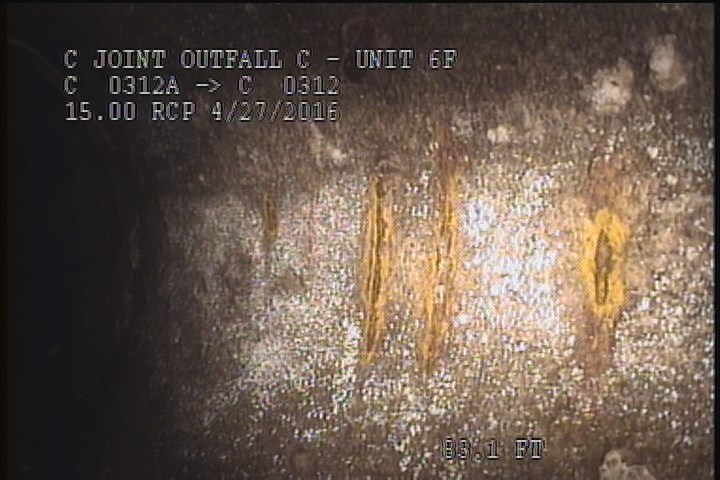

  • General Photograph - REBAR

    83.1 ft. - General Photograph - REBAR

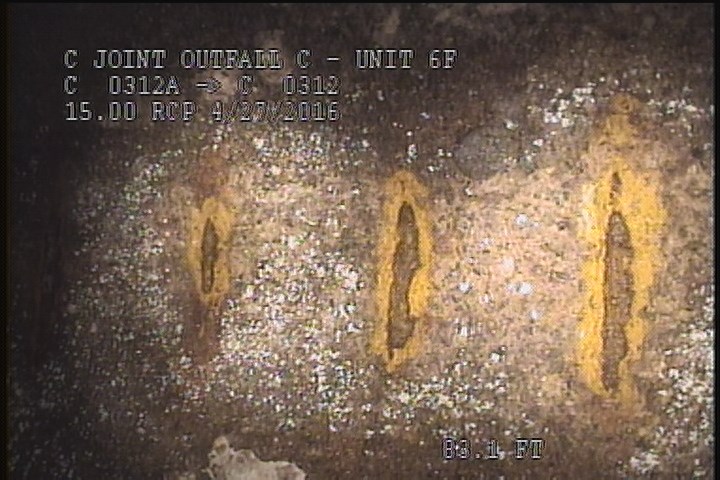

  • Surface Reinforcement Visible, at 01 o'clock, within 8 inches of joint: NO

    83.1 ft. - Surface Reinforcement Visible, at 01 o'clock, within 8 inches of joint: NO

All inspections of P09774Work order 0563383

Observations (16)

DistanceCodeObservation
0AMH12:47 PM
154.7SSS—
156.4AMH1:08 PM, FOOTAGE DOES NOT MATCH THE PAPERWORK
154.7MGOSLIGHT TO MODERATE GREASE THROUGHOUT THE REACH
0MWL—
0MGOACTIVE CONN. INSIDE THE MH. @ 09 O'CLOCK
2SSS—
83.1MGPREBAR
0MGOACTIVE CONN. INSIDE THE MH. @ 03 O'CLOCK
155.2MGOROACHES INSIDE THE MH.
154.7SAV—
21.3TBC—
83.1SRV—
0MWM—
0MGOROACHES INSIDE THE MH.
2SAV—

Properties (4)

custom_field_three
REBAR
custom_field_two
2
customer
LACSD
datetime
2016-04-27T12:22:16-07:00
