Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 22, 2016, 11:59 AM

  • 08 0034_08 0033_4222016_052336.mp4

Date
04/22/2016
W/O
0557605
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00016
PipeID
P00036
Time
4:59 AM
Certificate
U-1014-06602254
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0112
Sewer Name
08 MAIN STREET TRUNK
City
GARDENA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
02
Purpose
Routine Assessment
Project
20160422MDM_MAIN_STREET_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
21 in.
Upstream MH
08 0034
Downstream MH
08 0033
Dir. of Survey
Downstream
Length Surveyed
323.7 ft.
Total Length
323.7 ft.
Structural Index
3
Structural Quick
3722
Structural Rating
26
O&M Index
2
O&M Quick
2211
O&M Rating
5
Overall Index
2
Overall Quick
—
Overall Rating
31
Pipe schematic from manhole 08 0034 to 08 0033
MH: 08 0034MH: 08 0033downstream0 ft. AMH - Upstream Manhole, Survey Begins - 5:15AM0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active12.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start - GREASE OR SCALE12.9 ft. MGO - General Observation - 21" VCP21.6 ft. CC - Crack Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES37.8 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: YES, 5" - Capped74.1 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - HAIRLINE84.1 ft. FL - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES - HAIRLINE86.7 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES - HAIRLINE90.4 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Capped137.9 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Active151 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - HAIRLINE187.1 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - H191.5 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Capped227 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H239.9 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Capped248.1 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H257 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H275.8 ft. FC - Fracture Circumferential, from 12 to 01 o'clock, within 8 inches of joint: YES - H282.2 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Capped294.1 ft. DSGV - Deposits Settled Gravel, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES315.2 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Active315.2 ft. RFL - Roots Fine Lateral, at 12 o'clock - 10%323.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish323.7 ft. AMH - Downstream Manhole, Survey Ends - 6:00AM

Observation photos (2)

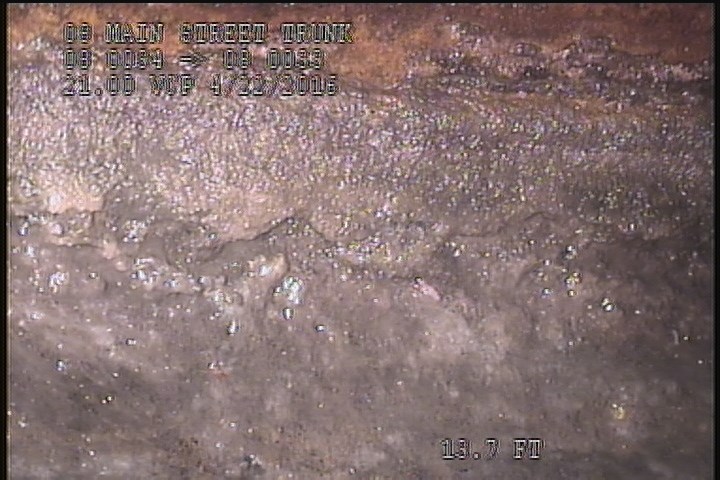

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start - GREASE OR SCALE

    12.9 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start - GREASE OR SCALE

  • General Observation - 21" VCP

    12.9 ft. - General Observation - 21" VCP

All inspections of P00036Work order 0557605

Observations (27)

DistanceCodeObservation
315.2TFActive
90.4TFCCapped
282.2TFCCapped
74.1FLHAIRLINE
151FLHAIRLINE
0AMH5:15AM
187.1FCH
191.5TFCCapped
323.1DAGS—
323.7AMH6:00AM
257FLH
227FLH
248.1FLH
12.9DAGSGREASE OR SCALE
0MWM—
239.9TFCCapped
0MWL—
12.9MGO21" VCP
275.8FCH
137.9TFActive
0MGOConn. @ Mh, 3 O' Clock. Active
84.1FLHAIRLINE
86.7FLHAIRLINE
294.1DSGV—
21.6CC—
315.2RFL10%
37.8TFCCapped
