Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 22, 2016, 04:53 PM

  • 18 0384_18 0383_4222016_095616.mp4

Date
04/22/2016
W/O
0563369
Weather
Dry
Operator/Surveyor
MIRANDA
Sewer ID
Z00690
PipeID
P14218
Time
9:53 AM
Certificate
U-1014-06022542
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7094
Sewer Name
18 NORTH NORWALK TRUNK
City
NORWALK
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
25
Purpose
Capital Improvement Program Assesment
Project
20160422AM_NORTH_NORWALK_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Upstream MH
18 0384
Downstream MH
18 0383
Dir. of Survey
Downstream
Length Surveyed
254.8 ft.
Total Length
254.8 ft.
Structural Index
3
Structural Quick
4133
Structural Rating
18
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
3
Overall Quick
—
Overall Rating
22
Pipe schematic from manhole 18 0384 to 18 0383
MH: 18 0384MH: 18 0383downstream0 ft. MGO - General Observation - ACTIVE CONN. INSIDE THE MH. @ 03 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Begins - 9:54 AM0 ft. MWL - Water Level, 35 %of cross sectional area0 ft. MGO - General Observation - ROACHES INSIDE THE MH.0 ft. MWM - Water Mark, 50 %of cross sectional area11 ft. FM - Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES20.4 ft. CM - Crack Multiple, from 11 to 03 o'clock, within 8 inches of joint: YES23.4 ft. CL - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES29.8 ft. CL - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES32.9 ft. CC - Crack Circumferential, from 11 to 02 o'clock, within 8 inches of joint: YES42.2 ft. CM - Crack Multiple, from 11 to 03 o'clock, within 8 inches of joint: YES45.3 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start253.3 ft. MGO - General Observation - SLIGHT GREASE/DEBRIS THROUGHOUT THE REACH253.3 ft. MGO - General Observation - SAGS THROUGHOUT THE REACH253.3 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish254 ft. MGO - General Observation - ACTIVE CONN. INSIDE THE MH. @ 03 O'CLOCK254 ft. MGO - General Observation - ROACHES INSIDE THE MH.254.8 ft. AMH - Downstream Manhole, Survey Ends - 10:21 AM

Observation photos (2)

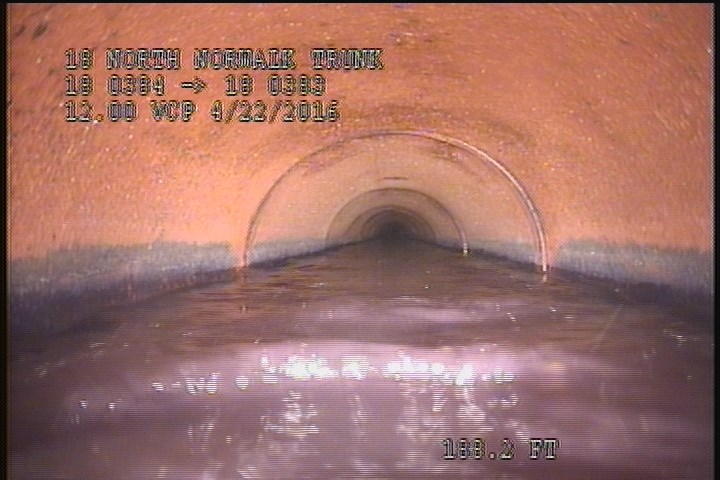

  • Water Mark, 50 %of cross sectional area

    0 ft. - Water Mark, 50 %of cross sectional area

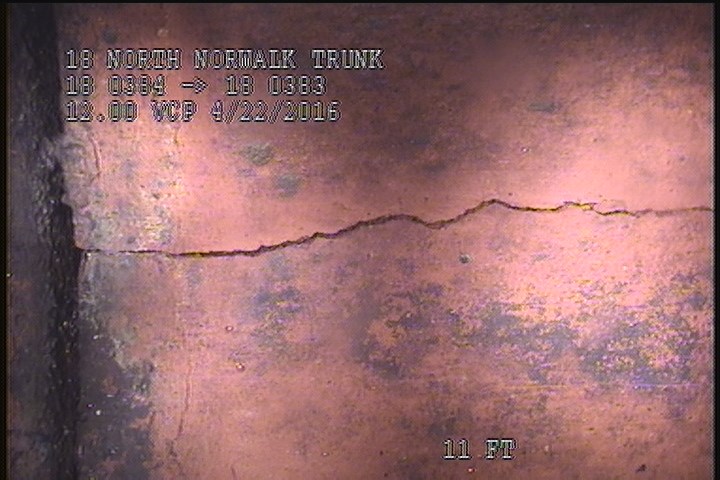

  • Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

    11 ft. - Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

All inspections of P14218Work order 0563369

Observations (18)

DistanceCodeObservation
29.8CL—
0MGOACTIVE CONN. INSIDE THE MH. @ 03 O'CLOCK
0AMH9:54 AM
32.9CC—
11FM—
253.3MGOSLIGHT GREASE/DEBRIS THROUGHOUT THE REACH
42.2CM—
23.4CL—
253.3MGOSAGS THROUGHOUT THE REACH
20.4CM—
253.3CM—
254.8AMH10:21 AM
0MWL—
0MGOROACHES INSIDE THE MH.
0MWM—
254MGOACTIVE CONN. INSIDE THE MH. @ 03 O'CLOCK
45.3CM—
254MGOROACHES INSIDE THE MH.

Properties (4)

additional_info
RFIR INSPECTION
custom_field_two
3
customer
LACSD
datetime
2016-04-22T09:53:17-07:00
