Wastewater/Activity/PacpInspection/1.0Apr 14, 2016, 09:01 AM
- Date
- 04/14/2016
- W/O
- 0552359
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00105
- PipeID
- P09178
- Time
- 2:01 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G6690
- Sewer Name
- B JOINT OUTFALL B - UNIT 8B
- City
- EL MONTE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 16
- Purpose
- Routine Assessment
- Project
- 20160413MDM_JOINT_OUTFALL_B_UNIT_8B
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 30 in.
- Upstream MH
- B 0606
- Downstream MH
- B 0605
- Dir. of Survey
- Downstream
- Length Surveyed
- 396.7 ft.
- Total Length
- 396.7 ft.
- Structural Index
- 2
- Structural Quick
- 2O00
- Structural Rating
- 160
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 160
Observation photos (3)

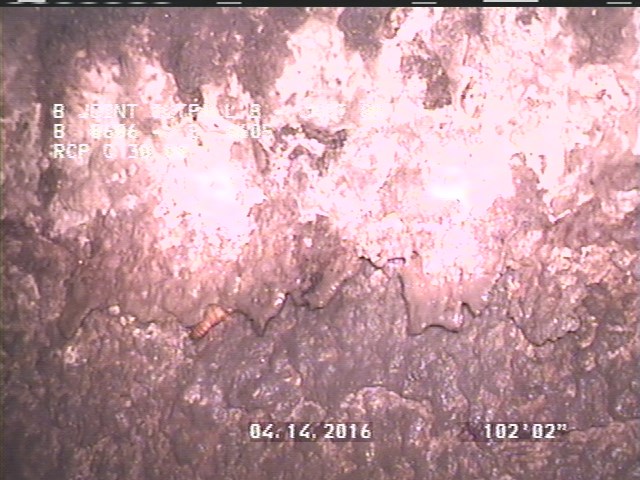

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - PEELING BLISTERING LAITANCE COAT UNDER MAG COAT

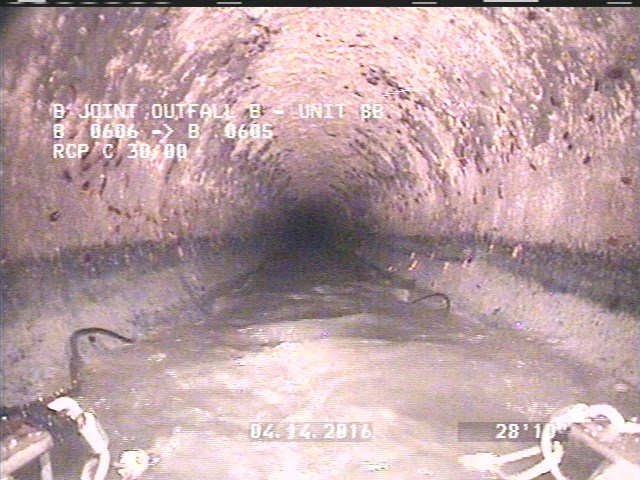

2 ft. - General Observation - MG COAT 80% START 8:00 TO 4:00

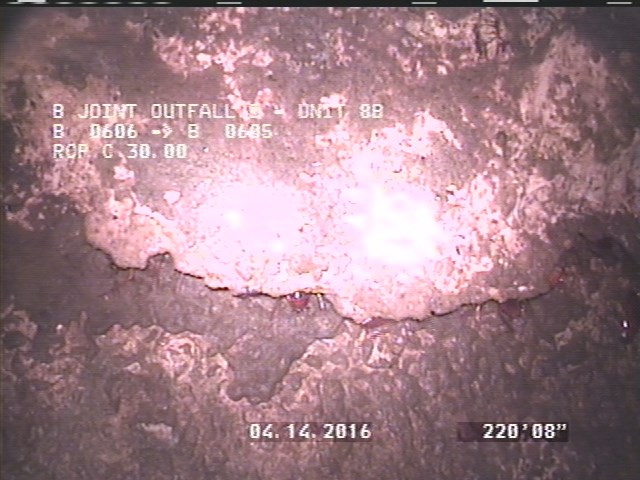

220.6 ft. - Surface Spalling, from 08 to 10 o'clock, within 8 inches of joint: YES - PEELING LAITANCE COAT
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 396.2 | MGO | MAG COAT 80% FINISH |
| 0 | MWL | — |
| 0 | MWM | — |
| 0 | MGO | MH CONN ACTIVE 9:00 |
| 220.6 | SSS | PEELING LAITANCE COAT |
| 2 | SSS | PEELING BLISTERING LAITANCE COAT UNDER MAG COAT |
| 0 | AMH | 3:55AM |
| 396.2 | MGO | MH CONN OPEN 3:00 |
| 396.2 | MGO | MH CONN ACTIVE 9:00 |
| 396.7 | AMH | 4:20AM |
| 0 | MGO | MH CONN OPEN 3:00 |
| 396.2 | SSS | PEELING LAITANCE COAT UNDER MAG COAT |
| 2 | MGO | MG COAT 80% START 8:00 TO 4:00 |
Properties (4)
- custom_field_three
- PEELING LAITANCE COAT -80% MAG COAT
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-04-14T02:01:34-07:00
