Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 13, 2016, 11:50 AM
Date
04/13/2016
W/O
0552359
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00105
PipeID
P09181
Time
4:50 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6689
Sewer Name
B JOINT OUTFALL B - UNIT 8B
City
EL MONTE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
16
Purpose
Routine Assessment
Project
20160413MDM_JOINT_OUTFALL_B_UNIT_8B
Material
Reinforced Concrete Pipe
Shape
Circular
Height
30 in.
Upstream MH
B 0609
Downstream MH
B 0608
Dir. of Survey
Downstream
Length Surveyed
356.8 ft.
Total Length
356.8 ft.
Structural Index
2
Structural Quick
2N00
Structural Rating
148
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
148
Pipe schematic from manhole B 0609 to B 0608
MH: B 0609MH: B 0608downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 4:55AM2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - PEELIN BLISTERING LAITANCE COAT2 ft. MGO - General Observation - MAG COAT 80% START 8:00 TO 4:0075.1 ft. SSS - Surface Spalling, from 02 to 04 o'clock, within 8 inches of joint: NO - PEELING LAITANCE COAT132.3 ft. SSS - Surface Spalling, from 11 to 12 o'clock, within 8 inches of joint: NO - BLISTERING LAITANCE COAT UNDER MAG216.3 ft. MGP - General Photograph254 ft. SSS - Surface Spalling, from 02 to 04 o'clock, within 8 inches of joint: NO356.5 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - PEELING BLISTERING LAITANCE COAT356.5 ft. MGO - General Observation - MAG COAT 80% FINISH356.8 ft. AMH - Downstream Manhole, Survey Ends - 5:20AM

Observation photos (6)

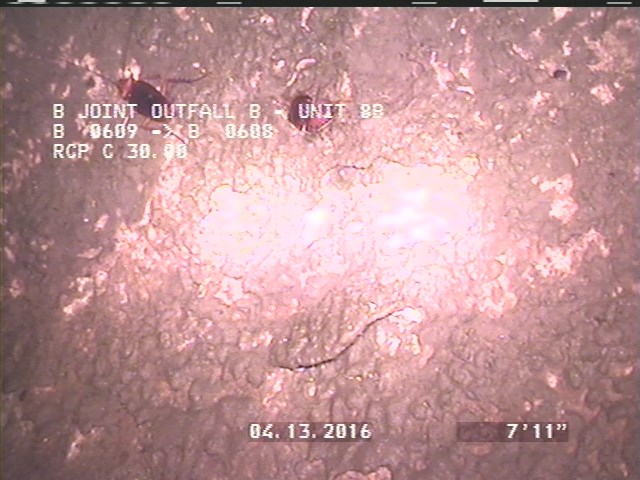

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - PEELIN BLISTERING LAITANCE COAT

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - PEELIN BLISTERING LAITANCE COAT

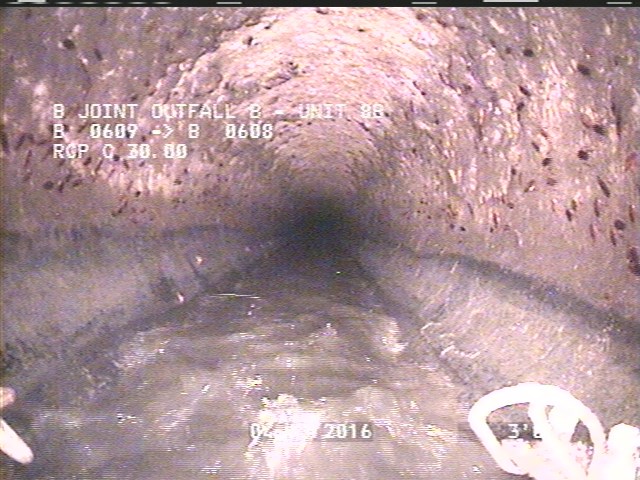

  • General Observation - MAG COAT 80% START 8:00 TO 4:00

    2 ft. - General Observation - MAG COAT 80% START 8:00 TO 4:00

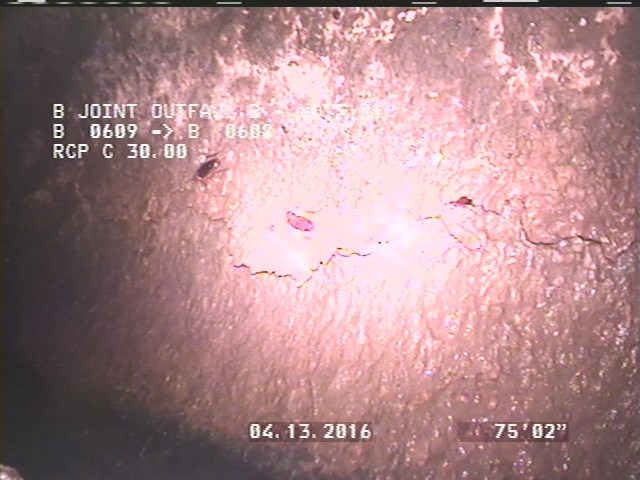

  • Surface Spalling, from 02 to 04 o'clock, within 8 inches of joint: NO - PEELING LAITANCE COAT

    75.1 ft. - Surface Spalling, from 02 to 04 o'clock, within 8 inches of joint: NO - PEELING LAITANCE COAT

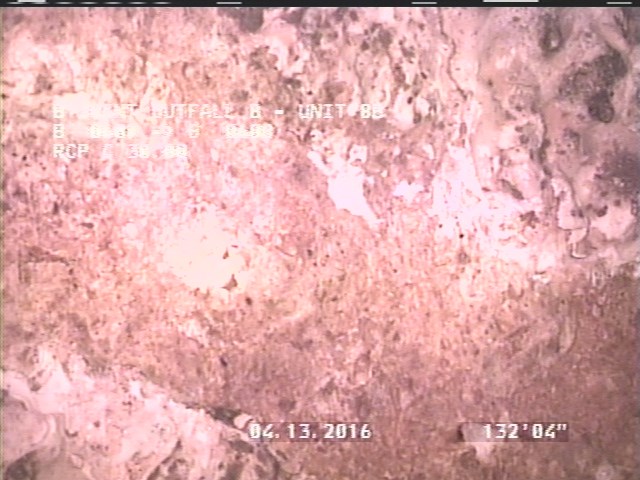

  • Surface Spalling, from 11 to 12 o'clock, within 8 inches of joint: NO - BLISTERING LAITANCE COAT UNDER MAG

    132.3 ft. - Surface Spalling, from 11 to 12 o'clock, within 8 inches of joint: NO - BLISTERING LAITANCE COAT UNDER MAG

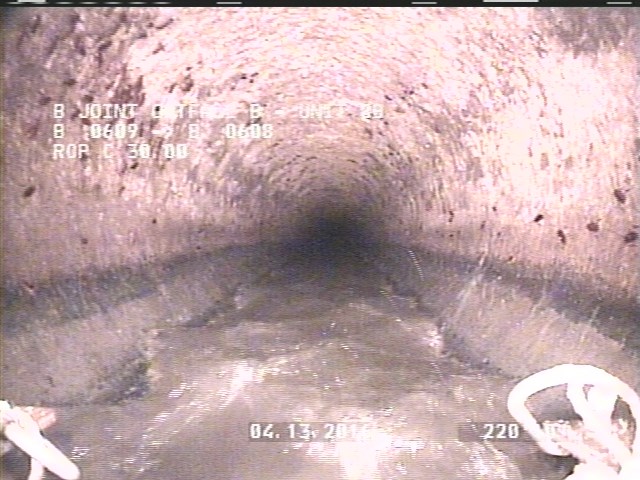

  • General Photograph

    216.3 ft. - General Photograph

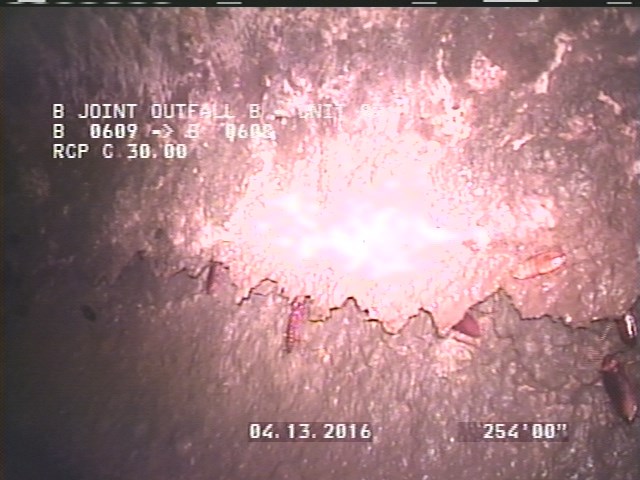

  • Surface Spalling, from 02 to 04 o'clock, within 8 inches of joint: NO

    254 ft. - Surface Spalling, from 02 to 04 o'clock, within 8 inches of joint: NO

All inspections of P09181Work order 0552359

Observations (12)

DistanceCodeObservation
356.8AMH5:20AM
132.3SSSBLISTERING LAITANCE COAT UNDER MAG
356.5SSSPEELING BLISTERING LAITANCE COAT
0MWM—
2SSSPEELIN BLISTERING LAITANCE COAT
216.3MGP—
0MWL—
2MGOMAG COAT 80% START 8:00 TO 4:00
75.1SSSPEELING LAITANCE COAT
0AMH4:55AM
254SSS—
356.5MGOMAG COAT 80% FINISH

Properties (4)

custom_field_three
PEELING LAITANCE COAT-80% MAG COAT
custom_field_two
4
customer
LACSD
datetime
2016-04-13T04:50:37-07:00
