Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 13, 2016, 11:00 AM
Date
04/13/2016
W/O
0552359
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00105
PipeID
P09182
Time
4:00 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6689
Sewer Name
B JOINT OUTFALL B - UNIT 8B
City
EL MONTE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
16
Purpose
Routine Assessment
Project
20160413MDM_JOINT_OUTFALL_B_UNIT_8B
Material
Reinforced Concrete Pipe
Shape
Circular
Height
30 in.
Upstream MH
B 0610
Downstream MH
B 0609
Dir. of Survey
Downstream
Length Surveyed
370.6 ft.
Total Length
370.6 ft.
Structural Index
2
Structural Quick
332N
Structural Rating
157
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
157
Pipe schematic from manhole B 0610 to B 0609
MH: B 0610MH: B 0609downstream0 ft. AMH - Upstream Manhole, Survey Begins - 4:00AM0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area2 ft. MGO - General Observation - MAG COAT 80% 8:00 TO 4:002 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - PEELING BLISTERING LAITANCE COAT14 ft. SAV - Surface Aggregate Visible, from 01 to 02 o'clock, within 8 inches of joint: NO - SEVERE AGG SPORATIC39.8 ft. SAV - Surface Aggregate Visible, from 11 to 01 o'clock, within 8 inches of joint: YES - SEVERE AGG SPORATIC55 ft. SAV - Surface Aggregate Visible, from 11 to 01 o'clock, within 8 inches of joint: NO - SEVERE AGG SPORATIC370.2 ft. MGO - General Observation - MAG COAT 80% FINISH370.2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - PEELING BLISTERING LAITANCE COAT370.6 ft. AMH - Downstream Manhole, Survey Ends - 4:30AM

Observation photos (5)

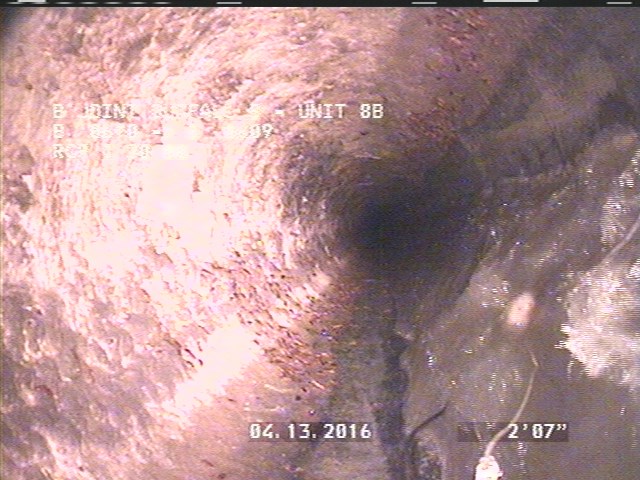

  • General Observation - MAG COAT 80% 8:00 TO 4:00

    2 ft. - General Observation - MAG COAT 80% 8:00 TO 4:00

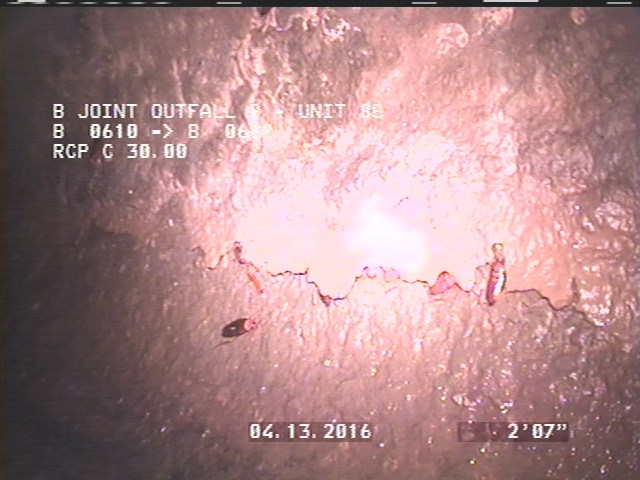

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - PEELING BLISTERING LAITANCE COAT

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - PEELING BLISTERING LAITANCE COAT

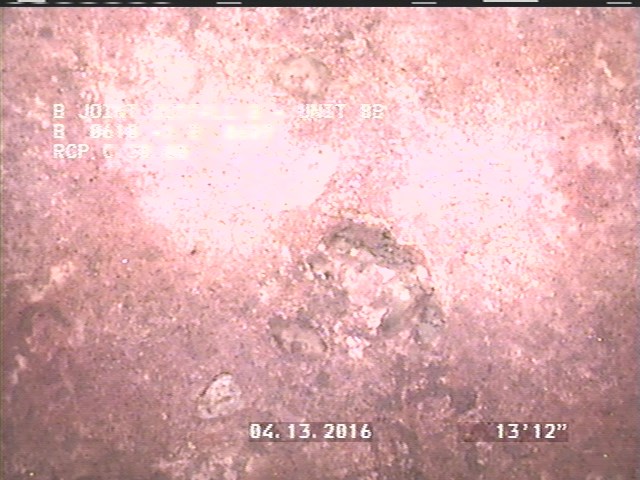

  • Surface Aggregate Visible, from 01 to 02 o'clock, within 8 inches of joint: NO - SEVERE AGG SPORATIC

    14 ft. - Surface Aggregate Visible, from 01 to 02 o'clock, within 8 inches of joint: NO - SEVERE AGG SPORATIC

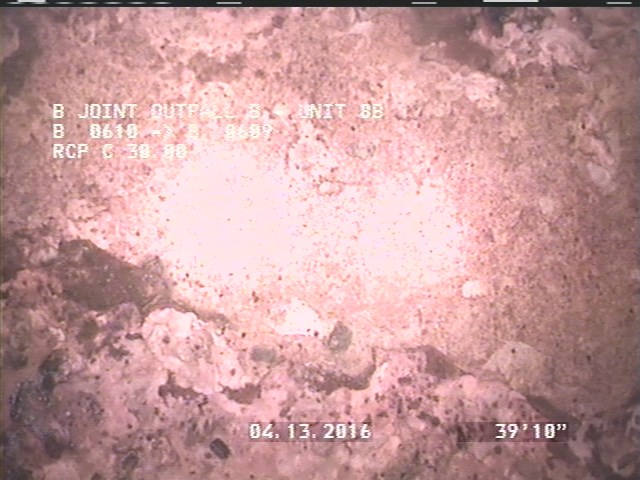

  • Surface Aggregate Visible, from 11 to 01 o'clock, within 8 inches of joint: YES - SEVERE AGG SPORATIC

    39.8 ft. - Surface Aggregate Visible, from 11 to 01 o'clock, within 8 inches of joint: YES - SEVERE AGG SPORATIC

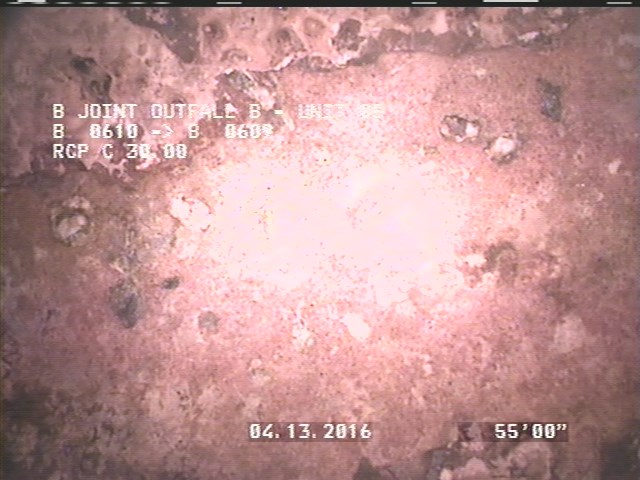

  • Surface Aggregate Visible, from 11 to 01 o'clock, within 8 inches of joint: NO - SEVERE AGG SPORATIC

    55 ft. - Surface Aggregate Visible, from 11 to 01 o'clock, within 8 inches of joint: NO - SEVERE AGG SPORATIC

All inspections of P09182Work order 0552359

Observations (11)

DistanceCodeObservation
0AMH4:00AM
14SAVSEVERE AGG SPORATIC
55SAVSEVERE AGG SPORATIC
370.2MGOMAG COAT 80% FINISH
370.2SSSPEELING BLISTERING LAITANCE COAT
2MGOMAG COAT 80% 8:00 TO 4:00
39.8SAVSEVERE AGG SPORATIC
2SSSPEELING BLISTERING LAITANCE COAT
0MWM—
0MWL—
370.6AMH4:30AM

Properties (4)

custom_field_three
SEVERE AGG VERY SPORATIC
custom_field_two
3
customer
LACSD
datetime
2016-04-13T04:00:06-07:00
