Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 13, 2016, 10:05 AM
Date
04/13/2016
W/O
0552359
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00105
PipeID
P09183
Time
3:05 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6688
Sewer Name
B JOINT OUTFALL B - UNIT 8B
City
EL MONTE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
16
Purpose
Routine Assessment
Project
20160413MDM_JOINT_OUTFALL_B_UNIT_8B
Material
Reinforced Concrete Pipe
Shape
Circular
Height
30 in.
Upstream MH
B 0611
Downstream MH
B 0610
Dir. of Survey
Downstream
Length Surveyed
370.8 ft.
Total Length
370.8 ft.
Structural Index
2
Structural Quick
2N00
Structural Rating
152
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
152
Pipe schematic from manhole B 0611 to B 0610
MH: B 0611MH: B 0610downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 3:05AM0 ft. MGO - General Observation - MH CONN ACTIVE 3:000 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. MGO - General Observation - MH CONN OPEN 9:002 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - PEELIN BLISTERING LAITANCE COAT2 ft. MGO - General Observation - MAG COAT 95% START 8:00 TO 4:0027 ft. SSS - Surface Spalling, from 02 to 04 o'clock, within 8 inches of joint: NO - PEELING LAITANCE COAT98.8 ft. SSS - Surface Spalling, from 02 to 04 o'clock, within 8 inches of joint: NO113 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - ACTIVE220.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - ACTIVE311.7 ft. MGP - General Photograph370.3 ft. MGO - General Observation - MAG COAT 95% FINISH370.3 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - PELING BLISTERING LAITANCE COAT370.8 ft. AMH - Downstream Manhole, Survey Ends - 3:35AM

Observation photos (5)

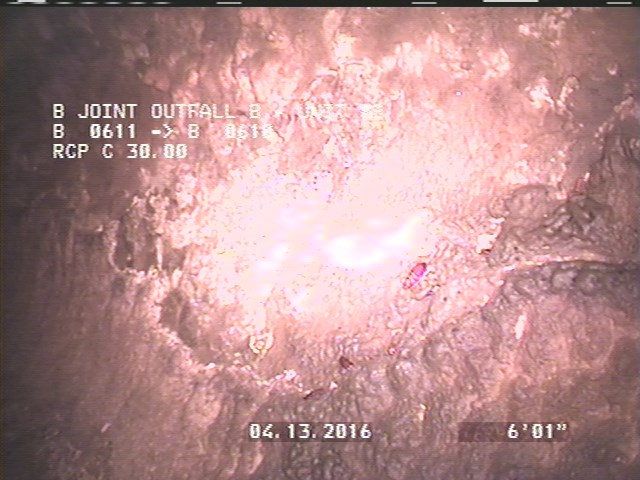

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - PEELIN BLISTERING LAITANCE COAT

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - PEELIN BLISTERING LAITANCE COAT

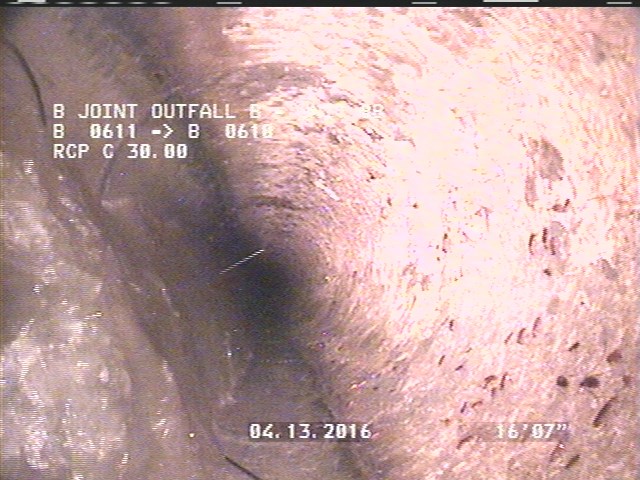

  • General Observation - MAG COAT 95% START 8:00 TO 4:00

    2 ft. - General Observation - MAG COAT 95% START 8:00 TO 4:00

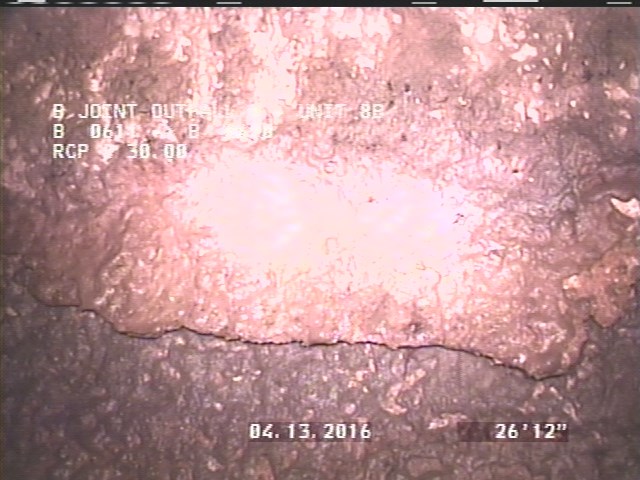

  • Surface Spalling, from 02 to 04 o'clock, within 8 inches of joint: NO - PEELING LAITANCE COAT

    27 ft. - Surface Spalling, from 02 to 04 o'clock, within 8 inches of joint: NO - PEELING LAITANCE COAT

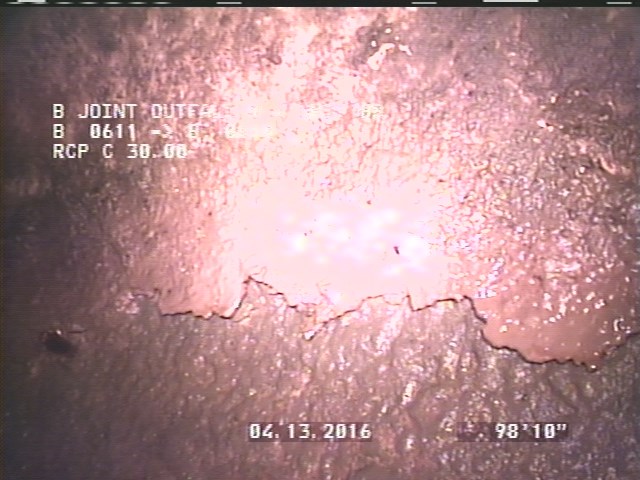

  • Surface Spalling, from 02 to 04 o'clock, within 8 inches of joint: NO

    98.8 ft. - Surface Spalling, from 02 to 04 o'clock, within 8 inches of joint: NO

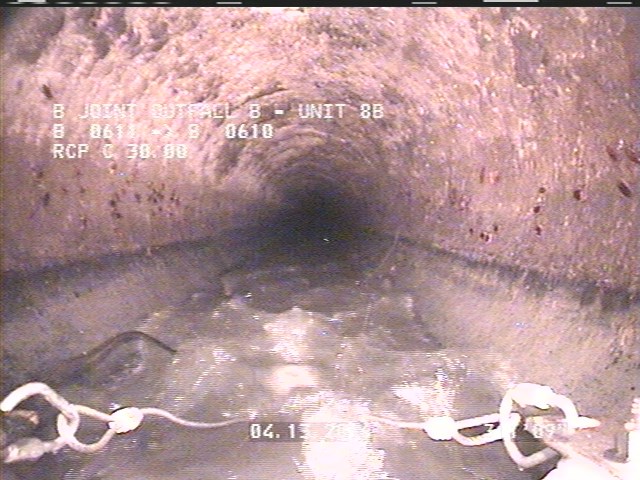

  • General Photograph

    311.7 ft. - General Photograph

All inspections of P09183Work order 0552359

Observations (15)

DistanceCodeObservation
370.3MGOMAG COAT 95% FINISH
2SSSPEELIN BLISTERING LAITANCE COAT
2MGOMAG COAT 95% START 8:00 TO 4:00
27SSSPEELING LAITANCE COAT
98.8SSS—
0MWL—
0AMH3:05AM
370.8AMH3:35AM
220.5TFACTIVE
113TFACTIVE
0MGOMH CONN ACTIVE 3:00
311.7MGP—
370.3SSSPELING BLISTERING LAITANCE COAT
0MWM—
0MGOMH CONN OPEN 9:00

Properties (4)

custom_field_three
PEELING BLISTERING LAITANCE COAT-95% MAG COAT
custom_field_two
4
customer
LACSD
datetime
2016-04-13T03:05:00-07:00
