Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 12, 2016, 03:46 PM

  • 29 0468_29 0460_4122016_092335.mp4

Date
04/12/2016
W/O
0547103
Weather
Dry
Operator/Surveyor
IGNACIO
Sewer ID
Z00989
PipeID
P24513
Time
8:46 AM
Certificate
U-115-06022628
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7089
Sewer Name
29 LEWIS AVENUE SEWER
City
SIGNAL HILL
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
03
Purpose
Routine Assessment
Project
20160412MI_LEWIS_AVENUE_SEWER
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
29 0460
Downstream MH
29 0468
Dir. of Survey
Upstream
Length Surveyed
227.3 ft.
Total Length
227.3 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
3
Pipe schematic from manhole 29 0460 to 29 0468
MH: 29 0460MH: 29 0468upstream0 ft. AMH - Upstream Manhole, Survey Ends - LAMP HOLE3.2 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 6"5.8 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 6" - Open23.4 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 6"47 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 6"61.7 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 6"73.3 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 6"145.2 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: YES, 6"193.1 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES195.9 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 6" - Capped216.7 ft. MGO - General Observation - ROACHES INSIDE THE LINE227.3 ft. MWM - Water Mark, 10 %of cross sectional area227.3 ft. AMH - Downstream Manhole, Survey Begins - 09:16AM227.3 ft. MWL - Water Level, 5 %of cross sectional area

Observation photos (3)

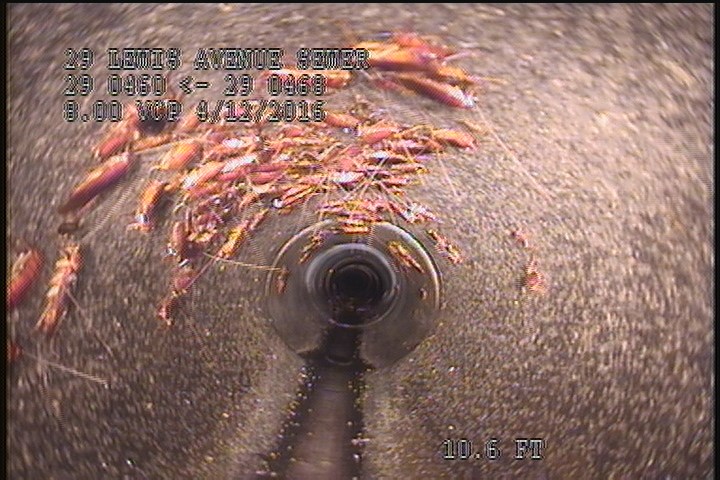

  • General Observation - ROACHES INSIDE THE LINE

    10.6 ft. - General Observation - ROACHES INSIDE THE LINE

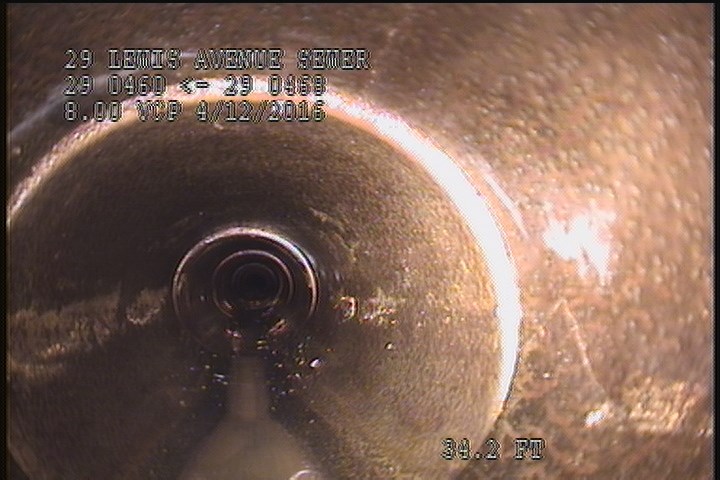

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    34.2 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

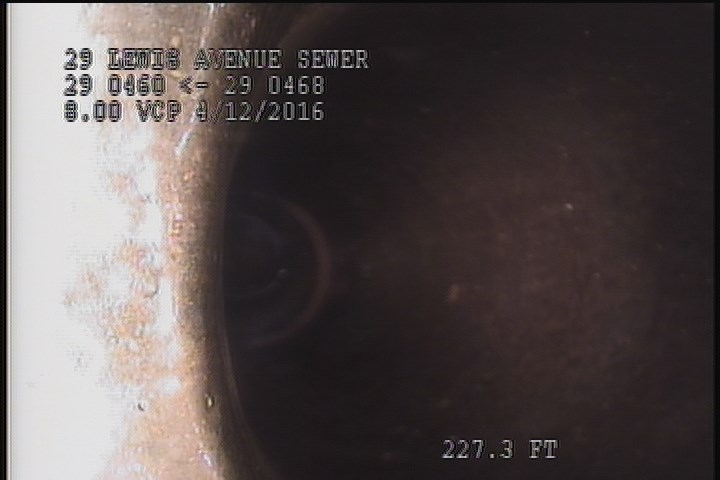

  • Upstream Manhole, Survey Ends - LAMP HOLE

    227.3 ft. - Upstream Manhole, Survey Ends - LAMP HOLE

All inspections of P24513Work order 0547103

Observations (14)

DistanceCodeObservation
31.4TFCCapped
203.9TFC—
165.6TFC—
221.5TFOpen
34.2CM—
0MWM—
82.1TFC—
224.1TFC—
180.3TFC—
10.6MGOROACHES INSIDE THE LINE
227.3AMHLAMP HOLE
0AMH09:16AM
0MWL—
154TFC—
