Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 12, 2016, 10:35 AM
Date
04/12/2016
W/O
0557603
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00488
PipeID
P06294
Time
3:35 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6686
Sewer Name
05 MONETA EXTENSION TRUNK, SECTION 1
City
GARDENA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
21
Purpose
Routine Assessment
Project
20160408MDM_MONETA_EXTENSION_TRUNK_SECTION_1
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Upstream MH
05 1060
Downstream MH
05 1059
Dir. of Survey
Downstream
Length Surveyed
377.8 ft.
Total Length
377.8 ft.
Structural Index
2
Structural Quick
2912
Structural Rating
20
O&M Index
2
O&M Quick
422O
O&M Rating
168
Overall Index
2
Overall Quick
—
Overall Rating
188
Pipe schematic from manhole 05 1060 to 05 1059
MH: 05 1060MH: 05 1059downstream0 ft. AMH - Upstream Manhole, Survey Begins - 4:10AM0 ft. MWM - Water Mark, 60 %of cross sectional area0 ft. MWL - Water Level, 40 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 02 to 10 o'clock, , within 8 inches of joint: YES, Start8 ft. MGO - General Observation - 24" VCP33.3 ft. CL - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES38.3 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: YES, 6" - STUB49.2 ft. CL - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES57.1 ft. CL - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES57.1 ft. CL - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES65.2 ft. CC - Crack Circumferential, from 12 to 01 o'clock, within 8 inches of joint: YES100.6 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 11 to 01 o'clock, , within 8 inches of joint: YES141.9 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6" - OPEN164 ft. CC - Crack Circumferential, from 01 to 02 o'clock, within 8 inches of joint: YES164 ft. CL - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES180.4 ft. FC - Fracture Circumferential, from 01 to 02 o'clock, within 8 inches of joint: YES - HAIRLINE213.5 ft. MWM - Water Mark, 70 %of cross sectional area213.5 ft. MWL - Water Level, 60 %of cross sectional area216.4 ft. CL - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES241.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 12 to 03 o'clock, , within 8 inches of joint: YES241.3 ft. TFD - Tap Factory Made Defective, at 12 o'clock, -, within 8 inches of joint: YES, 6" - 50% GREASE252.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 11 to 01 o'clock, , within 8 inches of joint: YES255.6 ft. CL - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES255.6 ft. FC - Fracture Circumferential, from 11 to 12 o'clock, within 8 inches of joint: YES - HAIRLINE340.6 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: YES, 6" - STUB353.7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 11 to 01 o'clock, , within 8 inches of joint: YES377.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 02 to 10 o'clock, , within 8 inches of joint: YES, Finish377.1 ft. MGO - General Observation - MH CONN ACTIVE 3:00377.8 ft. AMH - Downstream Manhole, Survey Ends - 4:45AM

Observation photos (2)

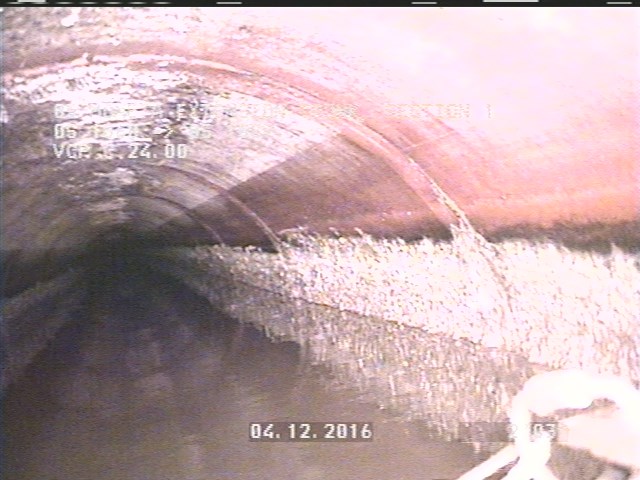

  • Deposits Attached Grease, 5 %of cross sectional area, from 02 to 10 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 02 to 10 o'clock, , within 8 inches of joint: YES, Start

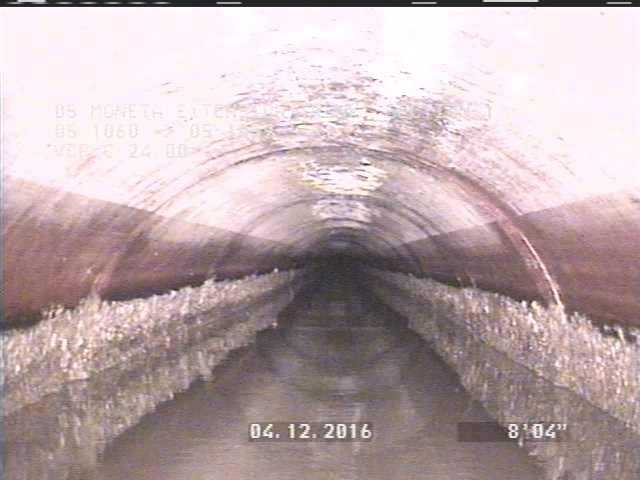

  • General Observation - 24" VCP

    8 ft. - General Observation - 24" VCP

All inspections of P06294Work order 0557603

Observations (29)

DistanceCodeObservation
49.2CL—
33.3CL—
0AMH4:10AM
377.8AMH4:45AM
141.9TFOPEN
100.6DAGS—
57.1CL—
241.3DAGS—
2DAGS—
252.3DAGS—
353.7DAGS—
0MWM—
164CC—
241.3TFD50% GREASE
8MGO24" VCP
340.6TFCSTUB
216.4CL—
65.2CC—
164CL—
180.4FCHAIRLINE
38.3TFCSTUB
255.6CL—
377.1DAGS—
377.1MGOMH CONN ACTIVE 3:00
0MWL—
213.5MWM—
57.1CL—
255.6FCHAIRLINE
213.5MWL—

Properties (3)

custom_field_two
4
customer
LACSD
datetime
2016-04-12T03:35:02-07:00
