Wastewater/Activity/PacpInspection/1.0Apr 8, 2016, 07:21 PM
- Date
- 04/08/2016
- W/O
- PENDING
- Weather
- Light Rain
- Operator/Surveyor
- MIRANDA
- Sewer ID
- Z00385
- PipeID
- P04842
- Time
- 12:21 PM
- Certificate
- U-1014-06022542
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G6683
- Sewer Name
- 03 MARKET STREET TRUNK
- City
- LONG BEACH
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 07
- Purpose
- Maintenance Related
- Project
- 20160408AM_MARKET_STREET_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 25.540000915527344 in.
- Upstream MH
- 03 0240
- Downstream MH
- 03 0239
- Dir. of Survey
- Downstream
- Length Surveyed
- 233.6 ft.
- Total Length
- 233.6 ft.
- Structural Index
- 4
- Structural Quick
- 4500
- Structural Rating
- 20
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 20
Observation photos (3)
0 ft. - Upstream Manhole, Survey Begins - 12:32 PM

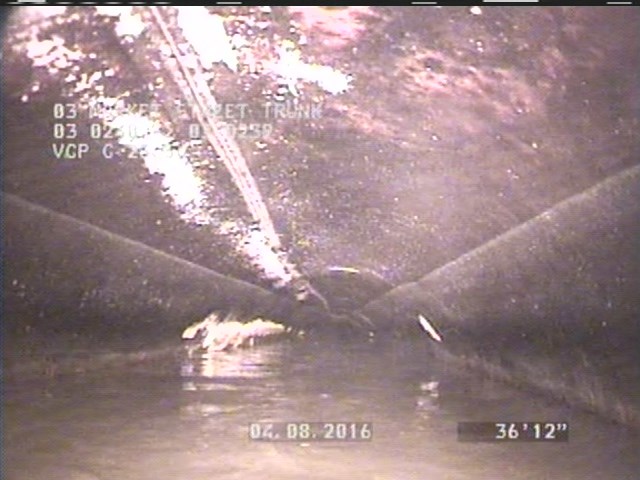

37 ft. - Water Level, Sag in pipe, 70 %of cross sectional area, Start

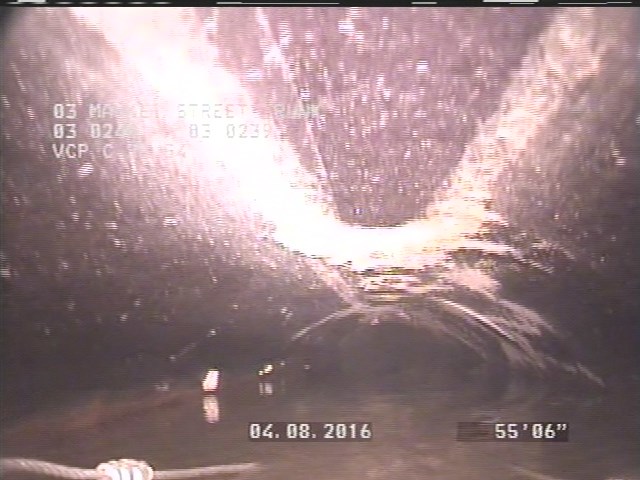

57 ft. - Water Level, Sag in pipe, 90 %of cross sectional area, Change
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 233.6 | AMH | 12:48 PM |
| 104 | MWLS | — |
| 37 | MWLS | — |
| 57 | MWLS | — |
| 0 | AMH | 12:32 PM |
Properties (6)
- additional_info
- EMERGENCY INSPECTION, LOOKING FOR DAMAGED LINER APPROX. 70' D/S
- custom_field_three
- EMERGENCY
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2016-04-08T12:21:57-07:00
- year_laid
- 20061231
