Wastewater/Activity/PacpInspection/1.0Apr 7, 2016, 08:24 AM
- Date
- 04/07/2016
- W/O
- 0552270
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00431
- PipeID
- P21393
- Time
- 1:24 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G6681
- Sewer Name
- 05 DISTRICT #5 MAIN TRUNK
- City
- TORANCE
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 24
- Purpose
- Routine Assessment
- Project
- 20160406MDM_DISTRICT_5_MAIN_TRUNK
- Material
- RCP-CTL
- Shape
- Circular
- Height
- 48 in.
- Upstream MH
- 05 0040
- Downstream MH
- A 0983
- Dir. of Survey
- Downstream
- Length Surveyed
- 190.1 ft.
- Total Length
- 190.1 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 0
- Overall Quick
- —
- Overall Rating
- 0
Observation photos (5)

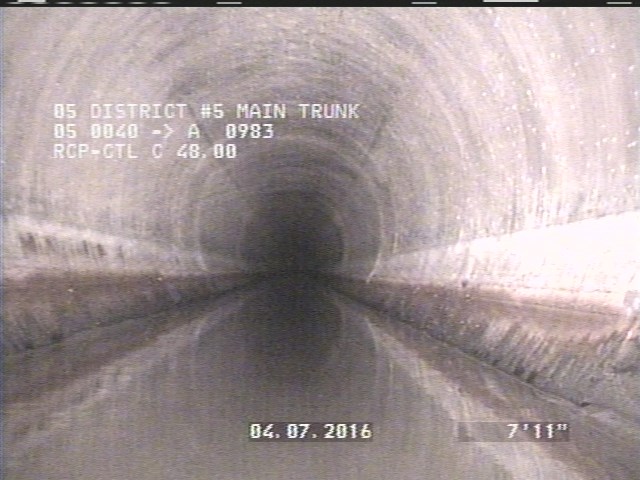

8 ft. - General Observation - 48" RCP-CTL FR POLY

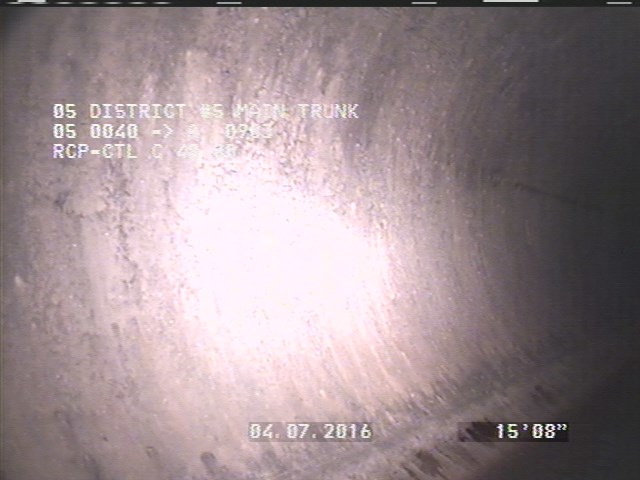

15.7 ft. - General Observation - WHITE BUILDUP ON PIPE

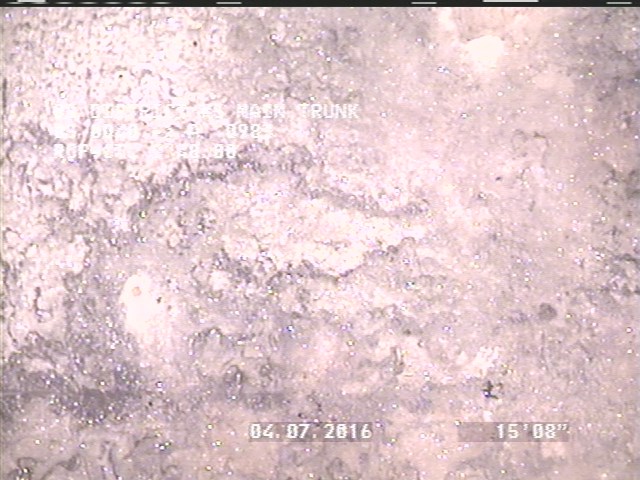

15.7 ft. - General Photograph

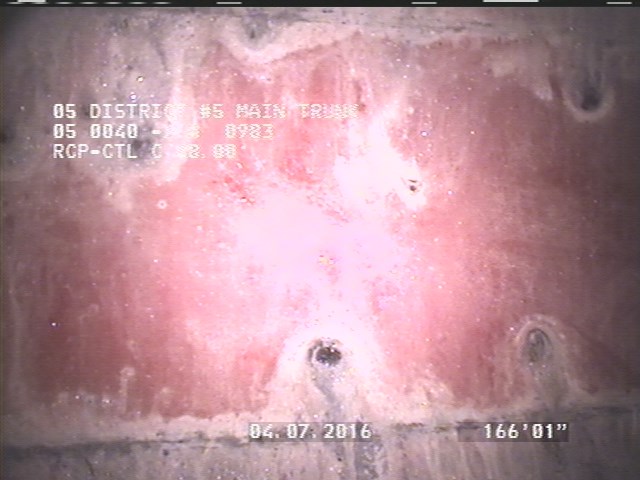

166.1 ft. - General Photograph

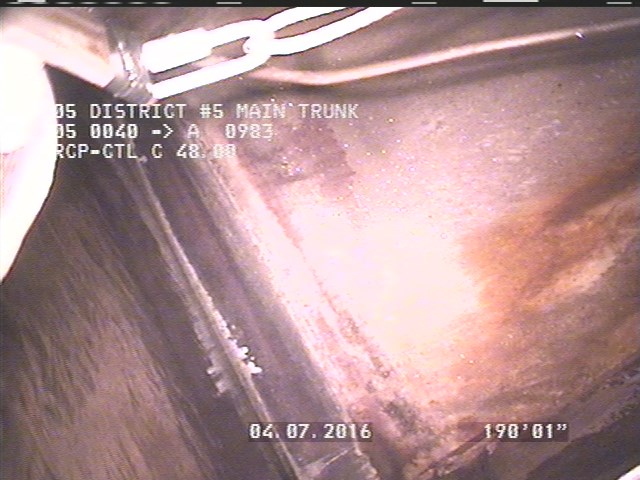

190.1 ft. - Downstream Manhole, Survey Ends - 5:15AM STOPLOG IN PLACE NO FLOW DOWNSTREAM
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 15.7 | MGO | WHITE BUILDUP ON PIPE |
| 166.1 | MGP | — |
| 15.7 | MGP | — |
| 0 | MWM | — |
| 190.1 | AMH | 5:15AM STOPLOG IN PLACE NO FLOW DOWNSTREAM |
| 0 | MWL | — |
| 0 | AMH | 4:55AM |
| 8 | MGO | 48" RCP-CTL FR POLY |
Properties (3)
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-04-07T01:24:54-07:00
