Wastewater/Activity/PacpInspection/1.0Apr 6, 2016, 08:12 AM
- Date
- 04/06/2016
- W/O
- 0552270
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00431
- PipeID
- P05323
- Time
- 1:12 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G6681
- Sewer Name
- 05 DISTRICT #5 MAIN TRUNK
- City
- TORANCE
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 24
- Purpose
- Routine Assessment
- Project
- 20160406MDM_DISTRICT_5_MAIN_TRUNK
- Material
- RCP-CTL
- Shape
- Circular
- Height
- 48 in.
- Upstream MH
- 05 0038
- Downstream MH
- 05 0037
- Dir. of Survey
- Downstream
- Length Surveyed
- 437.8 ft.
- Total Length
- 437.8 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 412Q
- O&M Rating
- 180
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 180
Observation photos (4)

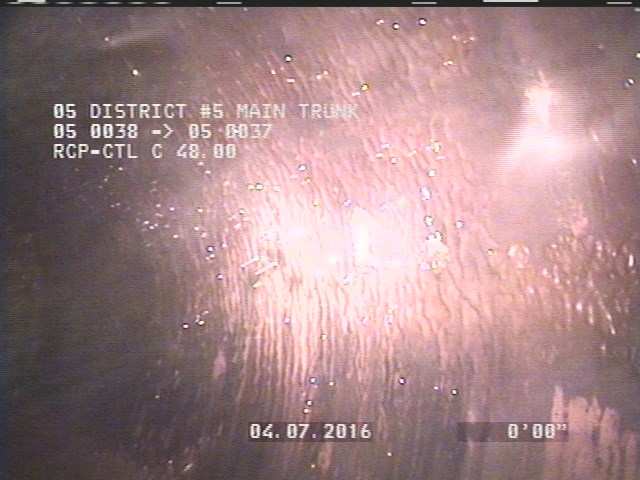

2 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

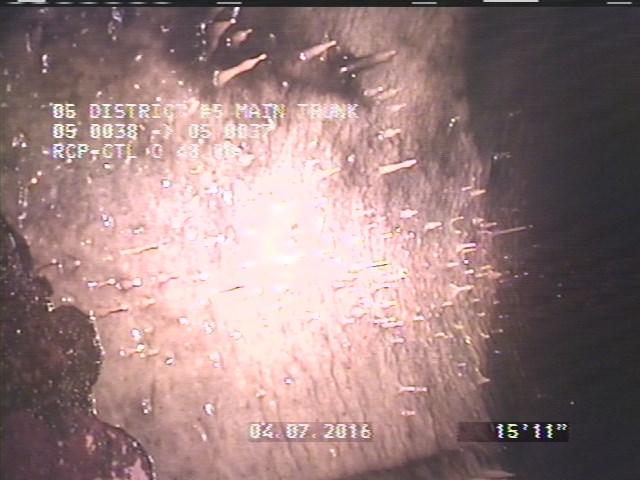

16 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: NO

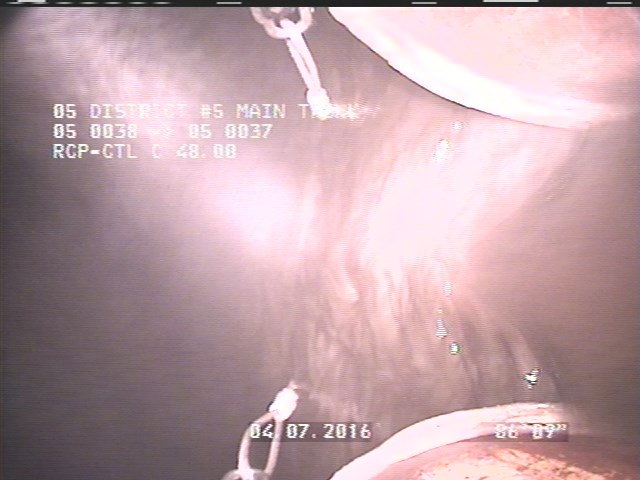

86.7 ft. - General Observation - HOT FLOW STEAM PROBLEMS FOR CAMERA

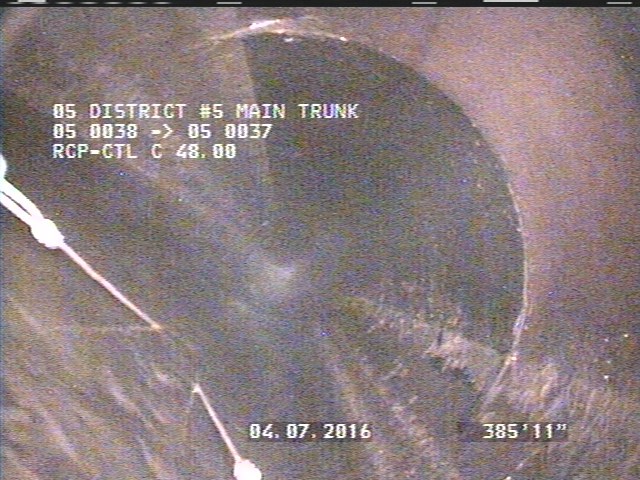

371.9 ft. - General Observation - 48" RCP- CTL FR POLY
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 86.7 | MGO | HOT FLOW STEAM PROBLEMS FOR CAMERA |
| 437.1 | DAGS | — |
| 0 | AMH | 1:45AM |
| 371.9 | MGO | 48" RCP- CTL FR POLY |
| 437.8 | AMH | 2:30AM |
| 0 | MWL | — |
| 16 | DAGS | — |
| 0 | MWM | — |
| 2 | DAGS | — |
| 12.5 | MGO | FLOW IS HOT & OILY SMELL |
Properties (3)
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-04-06T01:12:55-07:00
