Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 6, 2016, 07:39 AM
Date
04/06/2016
W/O
0552270
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00431
PipeID
P05329
Time
12:39 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6680
Sewer Name
05 DISTRICT #5 MAIN TRUNK
City
TORANCE
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
24
Purpose
Routine Assessment
Project
20160406MDM_DISTRICT_5_MAIN_TRUNK
Material
RCP-CTL
Shape
Circular
Height
48 in.
Upstream MH
05 0043
Downstream MH
05 0042
Dir. of Survey
Downstream
Length Surveyed
660.7 ft.
Total Length
660.7 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
2
Pipe schematic from manhole 05 0043 to 05 0042
MH: 05 0043MH: 05 0042downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 1:55AM0 ft. MGO - General Observation - MH CONN ACTIVE 3:0023.7 ft. MGO - General Observation - 48" RCP-CTL FR POLY30.5 ft. MGO - General Observation - WHITE BUILDUP GROWING OVER PIPE30.8 ft. MGP - General Photograph338.3 ft. MGP - General Photograph - 48" RCP-CTL FR POLY660.1 ft. MGO - General Observation - MH CONN ACTIVE 9:00660.1 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 07 to 08 o'clock, , within 8 inches of joint: NO - PAPER-RAGS660.7 ft. AMH - Downstream Manhole, Survey Ends - 2:40AM

Observation photos (4)

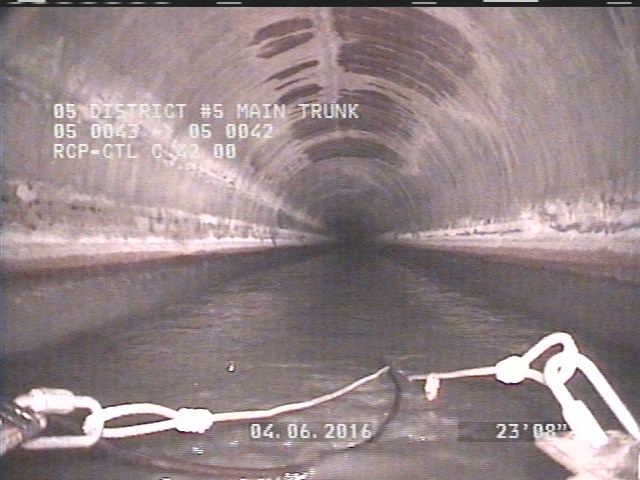

  • General Observation - 48" RCP-CTL FR POLY

    23.7 ft. - General Observation - 48" RCP-CTL FR POLY

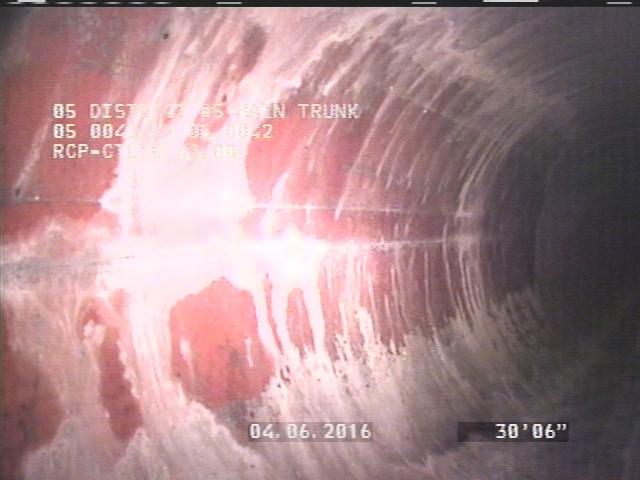

  • General Observation - WHITE BUILDUP GROWING OVER PIPE

    30.5 ft. - General Observation - WHITE BUILDUP GROWING OVER PIPE

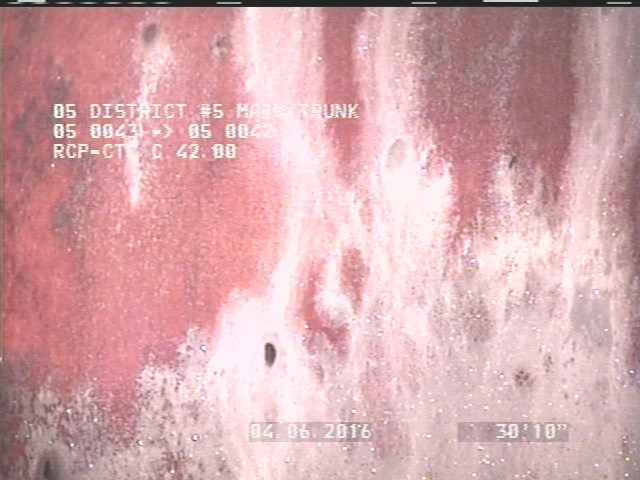

  • General Photograph

    30.8 ft. - General Photograph

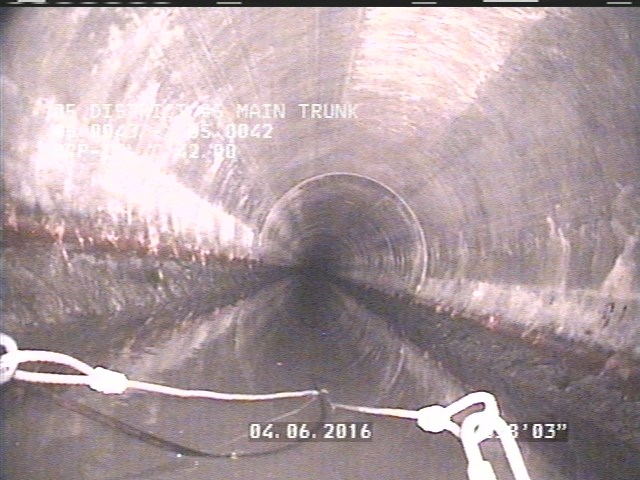

  • General Photograph - 48" RCP-CTL FR POLY

    338.3 ft. - General Photograph - 48" RCP-CTL FR POLY

All inspections of P05329Work order 0552270

Observations (11)

DistanceCodeObservation
660.1MGOMH CONN ACTIVE 9:00
0MWL—
0MWM—
23.7MGO48" RCP-CTL FR POLY
660.7AMH2:40AM
30.5MGOWHITE BUILDUP GROWING OVER PIPE
0AMH1:55AM
338.3MGP48" RCP-CTL FR POLY
660.1DSZPAPER-RAGS
30.8MGP—
0MGOMH CONN ACTIVE 3:00

Properties (4)

custom_field_two
4
customer
LACSD
datetime
2016-04-06T00:39:06-07:00
year_laid
19991031
