Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 5, 2016, 08:34 AM
Date
04/05/2016
W/O
0557603
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00488
PipeID
P06311
Time
1:34 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6677
Sewer Name
05 MONETA EXTENSION TRUNK, SECTION 1
City
GARDENA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
21
Purpose
Routine Assessment
Project
20160405MDM_MONETA_EXTENSION_TRUNK_SECTION_1
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Upstream MH
05 1077
Downstream MH
05 1076
Dir. of Survey
Downstream
Length Surveyed
320.5 ft.
Total Length
320.5 ft.
Structural Index
2
Structural Quick
3125
Structural Rating
14
O&M Index
2
O&M Quick
412L
O&M Rating
134
Overall Index
2
Overall Quick
—
Overall Rating
148
Pipe schematic from manhole 05 1077 to 05 1076
MH: 05 1077MH: 05 1076downstream0 ft. MWM - Water Mark, 60 %of cross sectional area0 ft. MGO - General Observation - MH CONN ACTIVE 3:000 ft. AMH - Upstream Manhole, Survey Begins - 1:55AM0 ft. MGO - General Observation - MH CONN STUB 9:000 ft. MWL - Water Level, 10 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 08 to 09 o'clock, , within 8 inches of joint: NO2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start5.6 ft. CL - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES20.9 ft. FC - Fracture Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES - HAIRLINE45.1 ft. CC - Crack Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES52.8 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES - HAIRLINE80.4 ft. FC - Fracture Circumferential, from 10 to 11 o'clock, within 8 inches of joint: YES - HAIRLINE157.2 ft. MGO - General Observation - 24" VCP181.6 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6" - ACTIVE192.6 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - HAIRLINE274.4 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6" - ACTIVE289.7 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: YES, 6" - ACTIVE305.9 ft. CL - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES320 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish320.5 ft. AMH - Downstream Manhole, Survey Ends - 2:25AM

Observation photos (2)

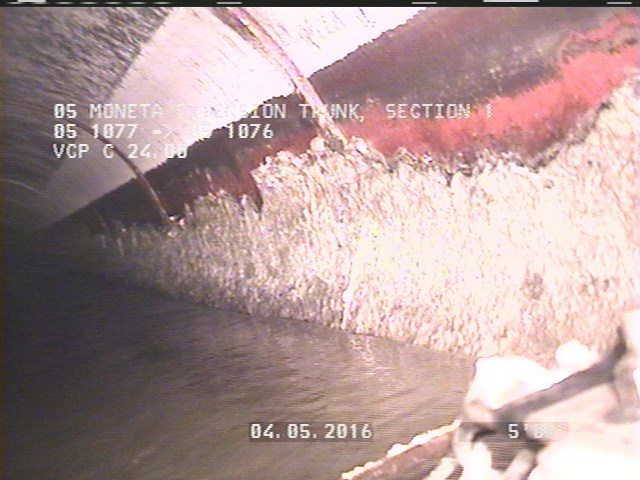

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

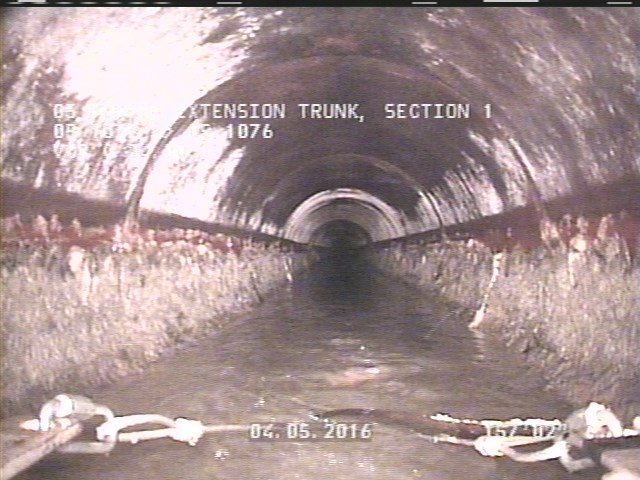

  • General Observation - 24" VCP

    157.2 ft. - General Observation - 24" VCP

All inspections of P06311Work order 0557603

Observations (20)

DistanceCodeObservation
305.9CL—
157.2MGO24" VCP
45.1CC—
181.6TFACTIVE
2DAGS—
0MWM—
80.4FCHAIRLINE
0MGOMH CONN ACTIVE 3:00
5.6CL—
20.9FCHAIRLINE
52.8FLHAIRLINE
274.4TFACTIVE
320DAGS—
2DAGS—
0AMH1:55AM
0MGOMH CONN STUB 9:00
289.7TBACTIVE
192.6FCHAIRLINE
0MWL—
320.5AMH2:25AM

Properties (3)

custom_field_two
4
customer
LACSD
datetime
2016-04-05T01:34:00-07:00
