Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 1, 2016, 08:18 AM

  • 05 1084_05 1083_412016_034755.mp4

Date
04/01/2016
W/O
0557603
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00488
PipeID
P06318
Time
1:18 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0106
Sewer Name
05 MONETA EXTENSION TRUNK, SECTION 1
City
GARDENA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
18
Purpose
Routine Assessment
Project
20160401MDM_MONETA_EXTENSION_TRUNK_SECTION_1
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Upstream MH
05 1084
Downstream MH
05 1083
Dir. of Survey
Downstream
Length Surveyed
209.8 ft.
Total Length
209.8 ft.
Structural Index
1
Structural Quick
1100
Structural Rating
1
O&M Index
2
O&M Quick
2300
O&M Rating
6
Overall Index
2
Overall Quick
—
Overall Rating
7
Pipe schematic from manhole 05 1084 to 05 1083
MH: 05 1084MH: 05 1083downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 3:40AM0 ft. MWM - Water Mark, 40 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start8 ft. MGO - General Observation - 24" VCP113.1 ft. DSGV - Deposits Settled Gravel, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: NO132.6 ft. DSGV - Deposits Settled Gravel, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES171.3 ft. CC - Crack Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES171.3 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: YES, 6"209.4 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active209.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish209.8 ft. AMH - Downstream Manhole, Survey Ends - 4:00AM

Observation photos (2)

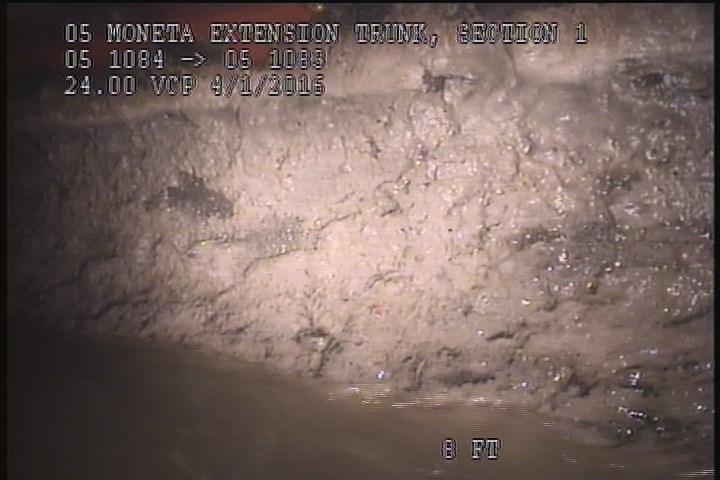

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

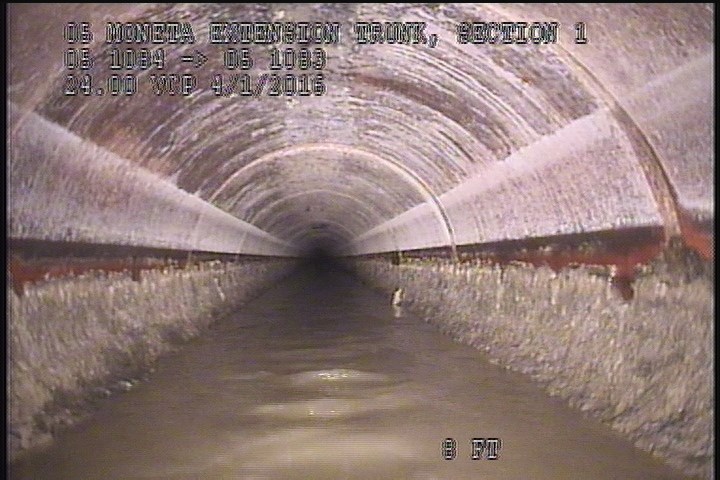

  • General Observation - 24" VCP

    8 ft. - General Observation - 24" VCP

All inspections of P06318Work order 0557603

Observations (12)

DistanceCodeObservation
132.6DSGV—
171.3CC—
0MWL—
209.4MGOConn. @ Mh, 9 O' Clock. Active
2DAGS—
0AMH3:40AM
8MGO24" VCP
113.1DSGV—
171.3TFC—
209.8AMH4:00AM
0MWM—
209.4DAGS—

Properties (3)

custom_field_two
4
customer
LACSD
datetime
2016-04-01T01:18:27-07:00
