Wastewater/Activity/PacpInspection/1.0Apr 5, 2016, 05:13 PM
05 2485_05 2484_452016_101612.mp4
- Date
- 04/05/2016
- W/O
- 0557575
- Weather
- Dry
- Operator/Surveyor
- MIRANDA
- Sewer ID
- Z00462
- PipeID
- P20880
- Time
- 10:13 AM
- Certificate
- U-1014-06022542
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7087
- Sewer Name
- 05 INGLEWOOD TRUNK #1 RELIEF
- City
- INGLEWOOD
- Loc. details
- Other
- Location Code
- Z
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 05
- Purpose
- Routine Assessment
- Project
- 20160331AM_INGLEWOOD_TRUNK_1_RELIEF
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Upstream MH
- 05 2485
- Downstream MH
- 05 2484
- Dir. of Survey
- Downstream
- Length Surveyed
- 122.7 ft.
- Total Length
- 122.7 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 5
- O&M Quick
- 5100
- O&M Rating
- 5
- Overall Index
- 5
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (5)

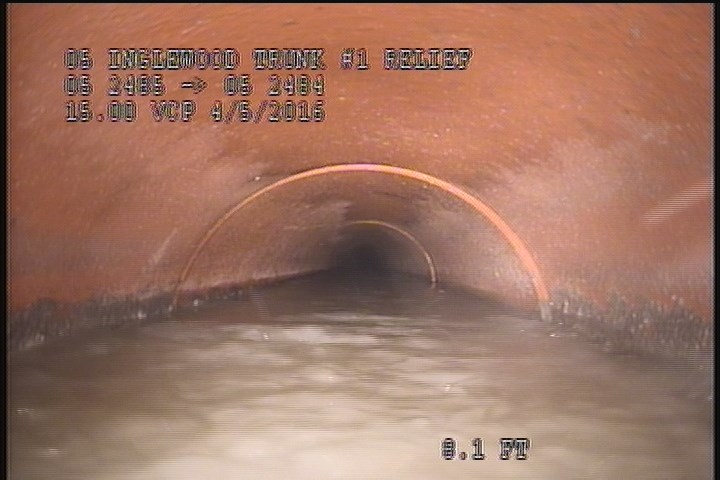

0 ft. - Upstream Manhole, Survey Begins - 10:14 AM

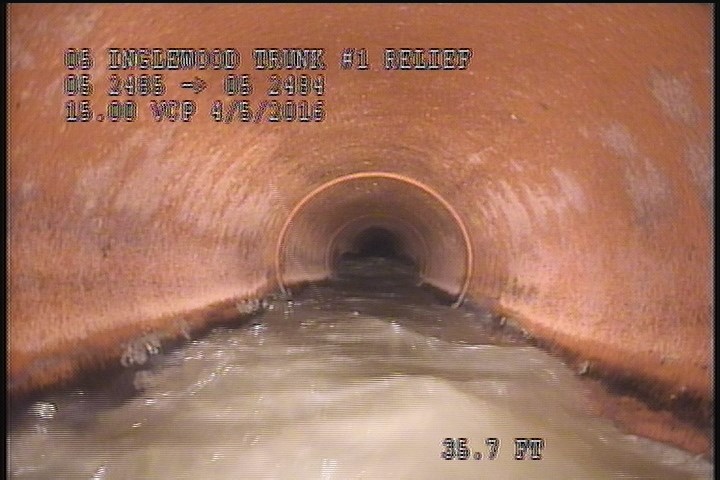

35.1 ft. - Water Level, 25 %of cross sectional area

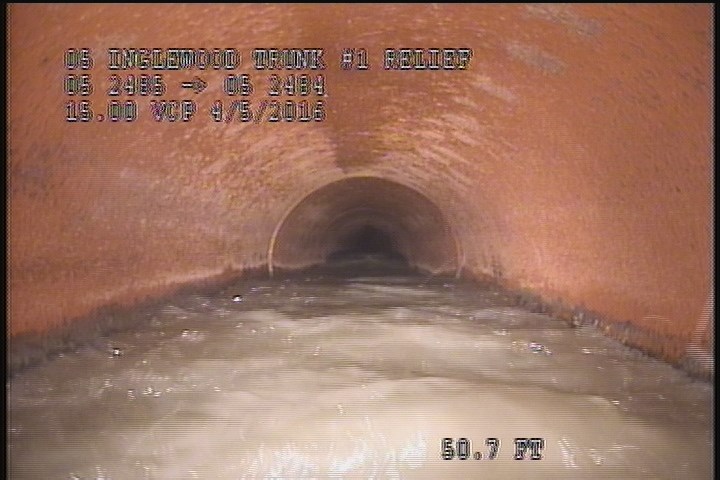

50.7 ft. - Water Level, 50 %of cross sectional area

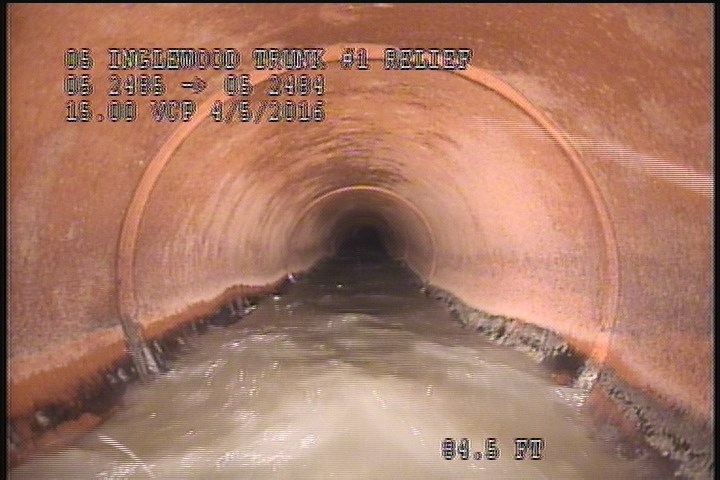

84.5 ft. - Water Level, 20 %of cross sectional area

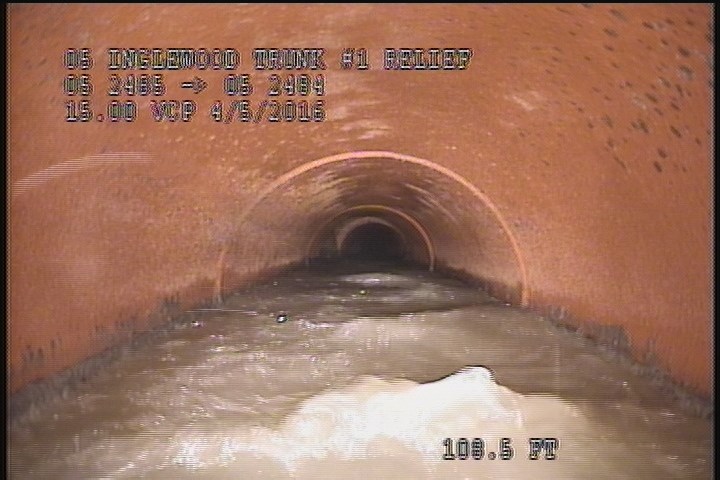

108.5 ft. - Water Level, 50 %of cross sectional area
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 35.1 | MWL | — |
| 120.1 | MGO | SLIGHT GREASE THROUGHOUT THE REACH |
| 0 | AMH | 10:14 AM |
| 120.1 | MGO | SAGS THROUGHOUT THE REACH |
| 122.7 | AMH | 10:26 AM |
| 50.7 | MWL | — |
| 108.5 | MWL | — |
| 0 | MWL | — |
| 0 | MWM | — |
| 84.5 | MWL | — |
Properties (3)
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-04-05T10:13:05-07:00
