Wastewater/Activity/PacpInspection/1.0Apr 1, 2016, 05:53 PM
05 2487_05 2486_412016_105821.mp4
- Date
- 04/01/2016
- W/O
- 0557575
- Weather
- Dry
- Operator/Surveyor
- MIRANDA
- Sewer ID
- Z00462
- PipeID
- P20882
- Time
- 10:53 AM
- Certificate
- U-1014-06022542
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7086
- Sewer Name
- 05 INGLEWOOD TRUNK #1 RELIEF
- City
- INGLEWOOD
- Loc. details
- Other
- Location Code
- Z
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 05
- Purpose
- Routine Assessment
- Project
- 20160331AM_INGLEWOOD_TRUNK_1_RELIEF
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Upstream MH
- 05 2487
- Downstream MH
- 05 2486
- Dir. of Survey
- Downstream
- Length Surveyed
- 198.5 ft.
- Total Length
- 198.5 ft.
- Structural Index
- 3
- Structural Quick
- 3221
- Structural Rating
- 8
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 8
Observation photos (2)

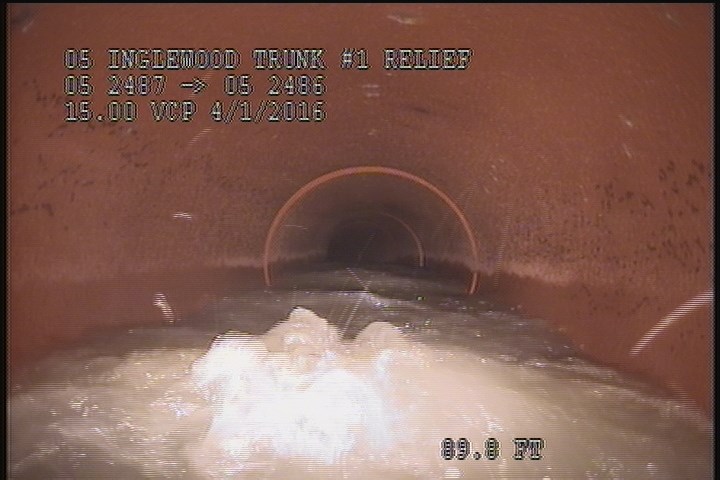

89.8 ft. - Water Level, Sag in pipe, 45 %of cross sectional area, Start

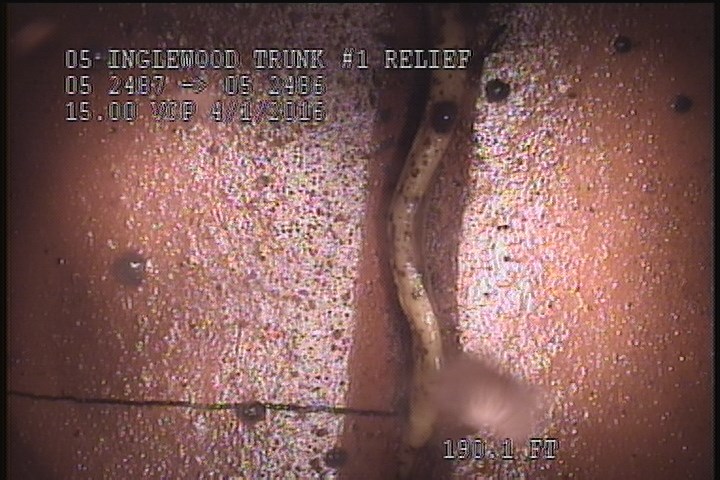

190.1 ft. - General Observation - GASKET HANGING OUT FROM 12 TO 01 O'CLOCK
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 10:56 AM |
| 145.3 | MWLS | — |
| 190.1 | MGO | GASKET HANGING OUT FROM 12 TO 01 O'CLOCK |
| 164.2 | MWLS | — |
| 198.5 | AMH | 11:10 AM |
| 190.4 | CL | — |
| 0 | MGO | STOPLOG IN PLACE INSIDE THE MH. @ 09 O'CLOCK |
| 0 | MWL | — |
| 0 | MWM | — |
| 89.8 | MWLS | — |
| 106.1 | MWLS | — |
| 197 | MGO | SLIGHT GREASE THROUGHOUT THE REACH |
| 0 | MGO | ACTIVE CONN. INSIDE THE MH. @ 03 O'CLOCK |
Properties (3)
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-04-01T10:53:18-07:00
