Wastewater/Activity/PacpInspection/1.0Apr 6, 2016, 04:57 PM
BLANK_05 0627_462016_102404.mp4
- Date
- 04/06/2016
- W/O
- 0557575
- Weather
- Dry
- Operator/Surveyor
- MIRANDA
- Sewer ID
- Z00462
- PipeID
- P20876
- Time
- 9:57 AM
- Certificate
- U-1014-06022542
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7087
- Sewer Name
- 05 INGLEWOOD TRUNK #1 RELIEF
- City
- INGLEWOOD
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 05
- Purpose
- Routine Assessment
- Project
- 20160331AM_INGLEWOOD_TRUNK_1_RELIEF
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Upstream MH
- BLANK
- Downstream MH
- 05 0627
- Dir. of Survey
- Downstream
- Length Surveyed
- 16.3 ft.
- Total Length
- 16.3 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 0
- Overall Quick
- —
- Overall Rating
- 0
Observation photos (2)

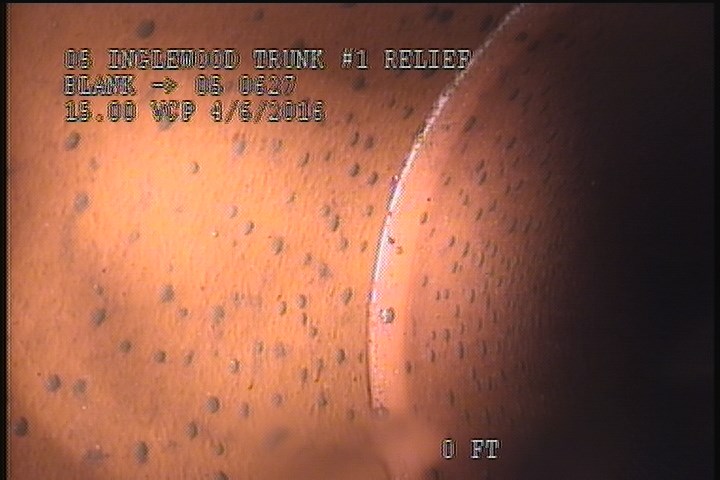

0 ft. - Upstream Manhole, Survey Begins - NO MH.

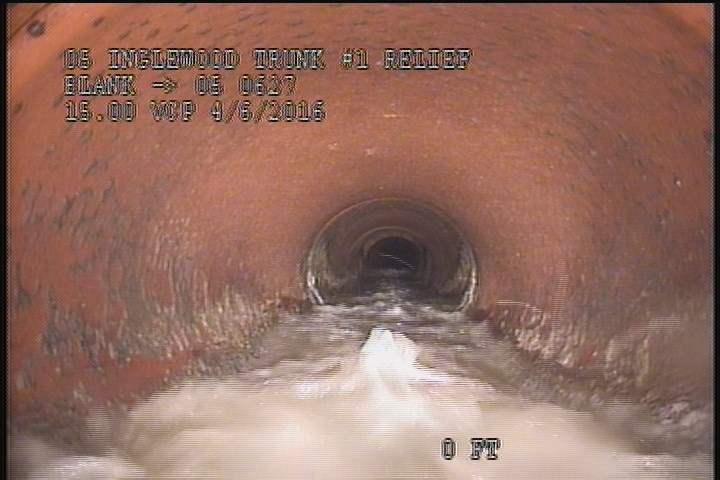

0 ft. - Water Level, 30 %of cross sectional area
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | NO MH. |
| 13.7 | MGO | ROACHES INSIDE THE MH. |
| 13.7 | MGO | SLIGHT GREASE THROUGHOUT THE REACH |
| 16.3 | AMH | 10:26 AM |
| 0 | MWL | — |
| 0 | MWM | — |
Properties (3)
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-04-06T09:57:25-07:00
