Wastewater/Activity/PacpInspection/1.0Apr 5, 2016, 06:45 PM
05 0520_05 2484_452016_120801.mp4
- Date
- 04/05/2016
- W/O
- 0557575
- Weather
- Dry
- Operator/Surveyor
- MIRANDA
- Sewer ID
- Z00462
- PipeID
- P20887
- Time
- 11:45 AM
- Certificate
- U-1014-06022542
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7087
- Sewer Name
- 05 INGLEWOOD TRUNK #1 RELIEF
- City
- INGLEWOOD
- Loc. details
- Other
- Location Code
- Z
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 05
- Purpose
- Routine Assessment
- Project
- 20160331AM_INGLEWOOD_TRUNK_1_RELIEF
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Upstream MH
- 05 2484
- Downstream MH
- 05 0520
- Dir. of Survey
- Upstream
- Length Surveyed
- 2.1 ft.
- Total Length
- 2.1 ft.
- Structural Index
- 4
- Structural Quick
- 5121
- Structural Rating
- 7
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 7
Observation photos (6)

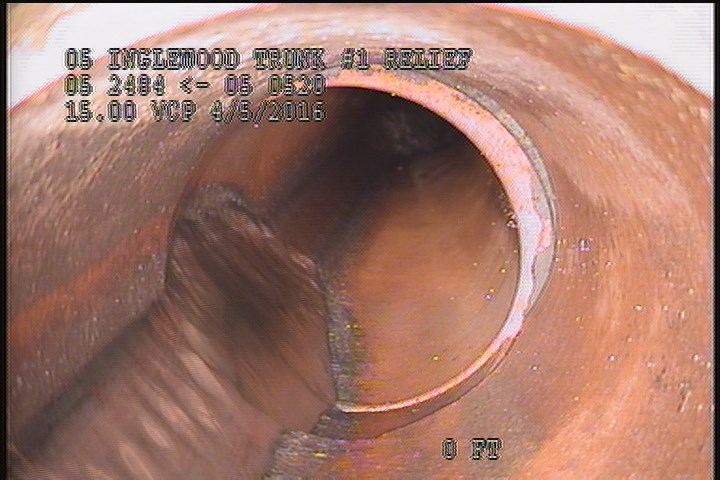

0 ft. - Upstream Manhole, Survey Begins - 12:13 PM

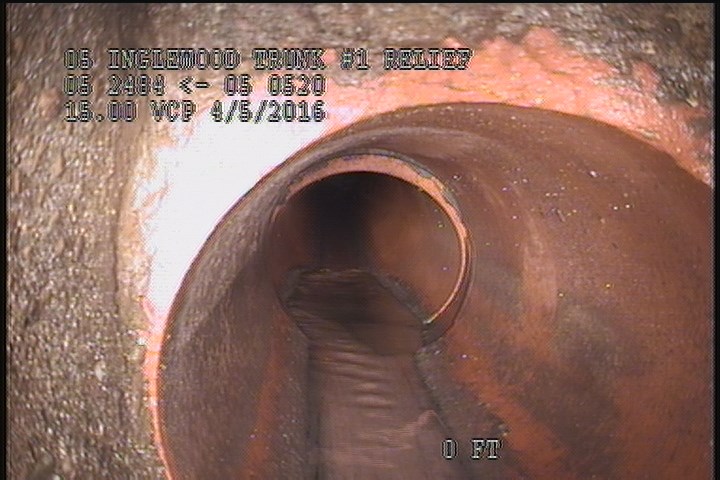

0 ft. - Water Level, 5 %of cross sectional area

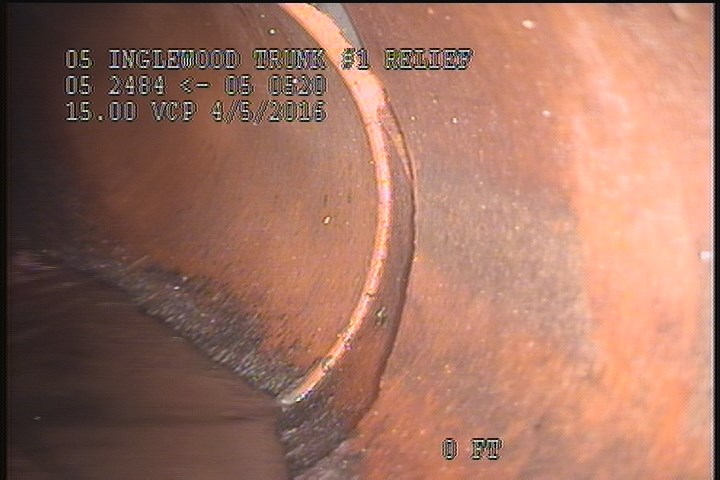

0 ft. - General Observation - ROACHES INSIDE THE MH.

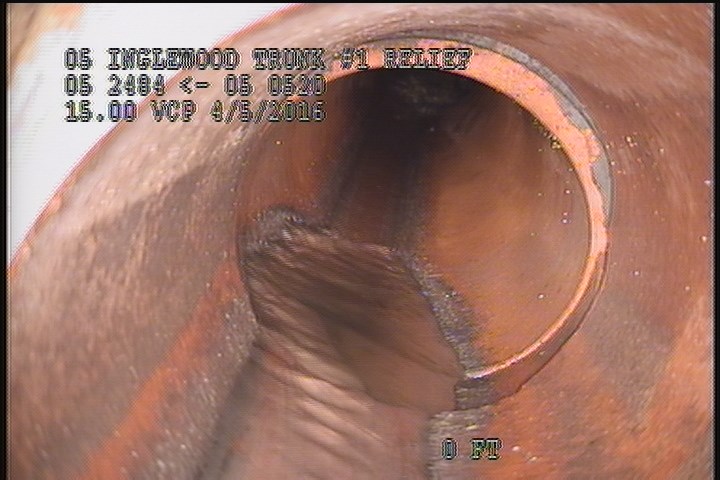

2 ft. - Broken, from 02 to 05 o'clock, within 8 inches of joint: YES

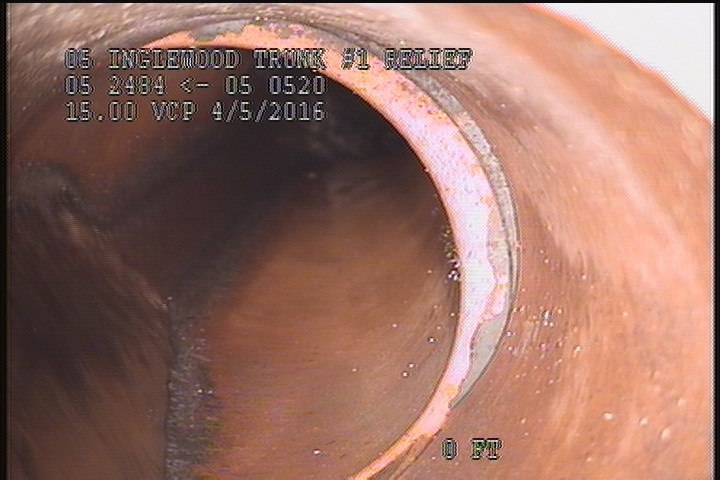

2 ft. - Joint Offset Large

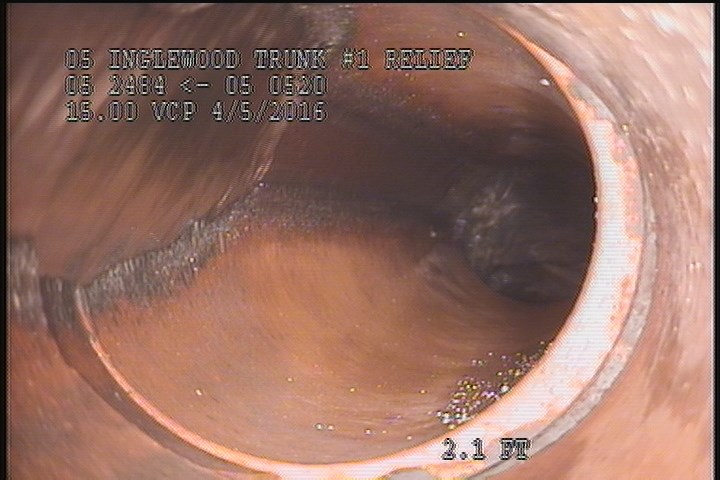

2.1 ft. - Downstream Manhole, Survey Ends - 12:22 PM
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 12:13 PM |
| 0 | MWL | — |
| 0 | MWM | — |
| 2.1 | AMH | 12:22 PM |
| 2 | B | — |
| 2 | JOL | — |
| 0 | MGO | ROACHES INSIDE THE MH. |
Properties (5)
- additional_info
- MIGHT NOT BE A 15" PIPE
- custom_field_three
- BROKEN PIPE
- custom_field_two
- 1
- customer
- LACSD
- datetime
- 2016-04-05T11:45:24-07:00
