Wastewater/Activity/PacpInspection/1.0Mar 31, 2016, 05:22 PM
05 0614_05 0524_3312016_102434.mp4
- Date
- 03/31/2016
- W/O
- 0557575
- Weather
- Saturated
- Operator/Surveyor
- MIRANDA
- Sewer ID
- Z00462
- PipeID
- P05838
- Time
- 10:22 AM
- Certificate
- U-1014-06022542
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7085
- Sewer Name
- 05 INGLEWOOD TRUNK #1 RELIEF
- City
- INGLEWOOD
- Loc. details
- Other
- Location Code
- Z
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 05
- Purpose
- Routine Assessment
- Project
- 20160331AM_INGLEWOOD_TRUNK_1_RELIEF
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Upstream MH
- 05 0614
- Downstream MH
- 05 0524
- Dir. of Survey
- Downstream
- Length Surveyed
- 510.4 ft.
- Total Length
- 510.4 ft.
- Structural Index
- 3
- Structural Quick
- 3200
- Structural Rating
- 6
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 6
Observation photos (5)

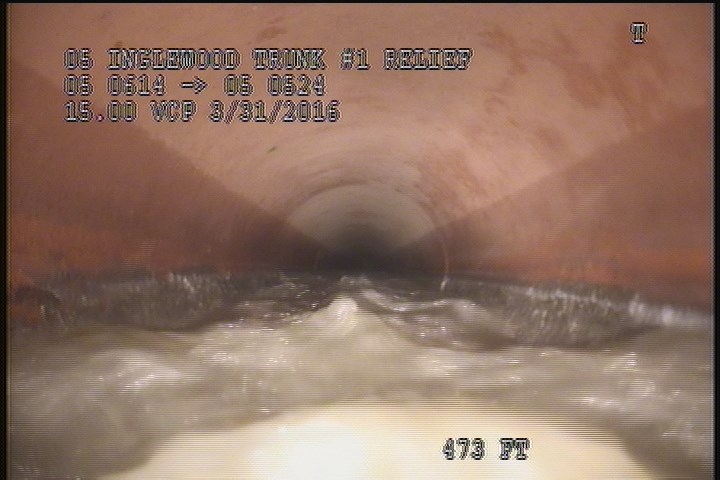

0 ft. - Water Mark, 30 %of cross sectional area

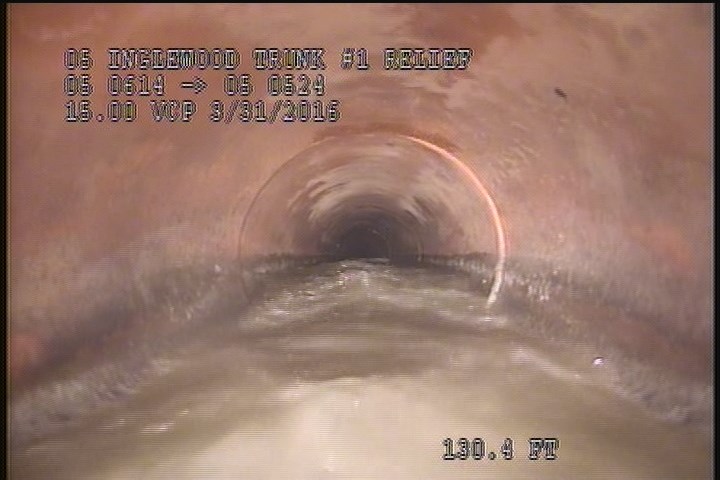

134 ft. - Water Level, Sag in pipe, 50 %of cross sectional area, Start

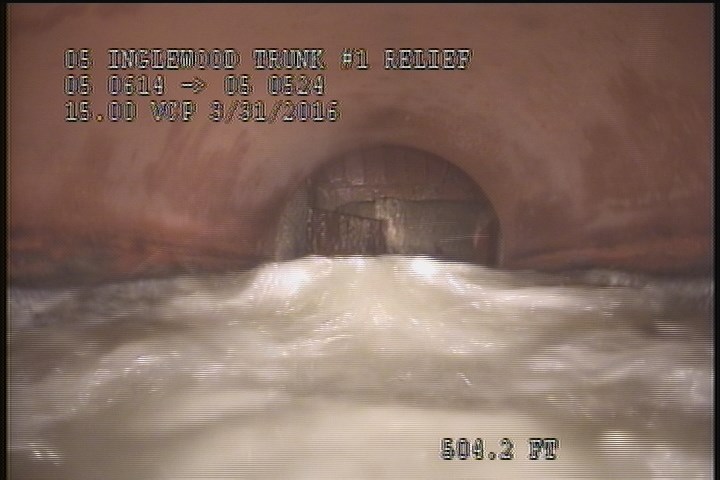

472 ft. - Water Level, Sag in pipe, 45 %of cross sectional area, Start

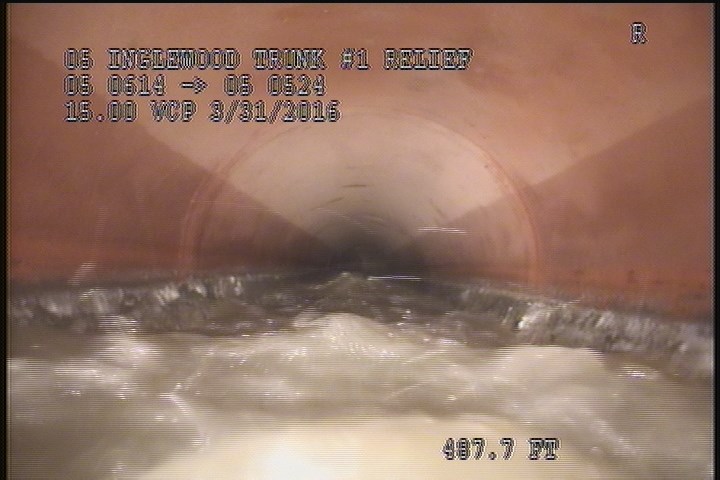

508.6 ft. - Water Level, Sag in pipe, 45 %of cross sectional area, Finish

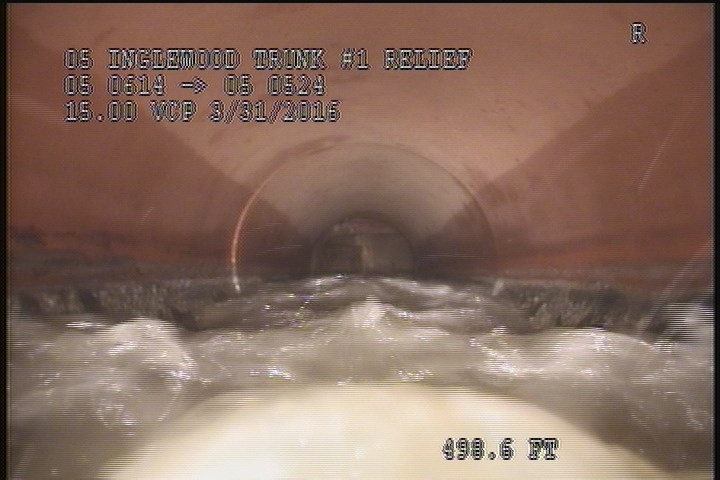

508.6 ft. - General Observation - SLIGHT GREASE THROUGHOUT THE REACH
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 10:23 AM |
| 472 | MWLS | — |
| 134 | MWLS | — |
| 0 | MWL | — |
| 508.6 | MGO | STOPLOG IN PLACE INSIDE THE MH. @ 10 O'CLOCK |
| 508.6 | MWLS | — |
| 508.6 | MGO | SLIGHT GREASE THROUGHOUT THE REACH |
| 148 | MWLS | — |
| 150.3 | TBA | — |
| 510.4 | AMH | 10:49 AM |
| 0 | MWM | — |
Properties (3)
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-03-31T10:22:38-07:00
