Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 21, 2016, 08:13 AM

  • J 0237_J 0236_3212016_024735.mp4

Date
03/21/2016
W/O
0557681
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00057
PipeID
P11483
Time
1:13 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0096
Sewer Name
J JOINT OUTFALL J - UNIT 1E
City
PALOS VERDES
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
46
Purpose
Capital Improvement Program Assesment
Project
201603MDM_JOINT_OUTFALL_J_UNIT_1E
Material
Reinforced Concrete Pipe
Shape
Circular
Height
27 in.
Upstream MH
J 0237
Downstream MH
J 0236
Dir. of Survey
Downstream
Length Surveyed
355.4 ft.
Total Length
355.4 ft.
Structural Index
2
Structural Quick
2500
Structural Rating
10
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
10
Pipe schematic from manhole J 0237 to J 0236
MH: J 0237MH: J 0236downstream0 ft. MGO - General Observation - MH CONN STUB 9:000 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 40 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 2:45AM2 ft. MGO - General Observation - MAG COAT 98% START 9:00 TO 3:002 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - PEELING BLISTERING LAITANCE COAT UNDER MAG COAT12.3 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: NO - PEELING LAITANCE COAT26.6 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES - BLISTERING LAITANCE COAT183 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: NO - BLISTERING LAITANCE COAT339.5 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES - PEELING LAITANCE COAT355.1 ft. MGO - General Observation - MAG COAT 98% FINISH355.1 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish - PEELING BLISTERING LAITANCE COAT355.1 ft. MGO - General Observation - MH CONN STUB 9:00355.4 ft. AMH - Downstream Manhole, Survey Ends - 3:15AM

Observation photos (6)

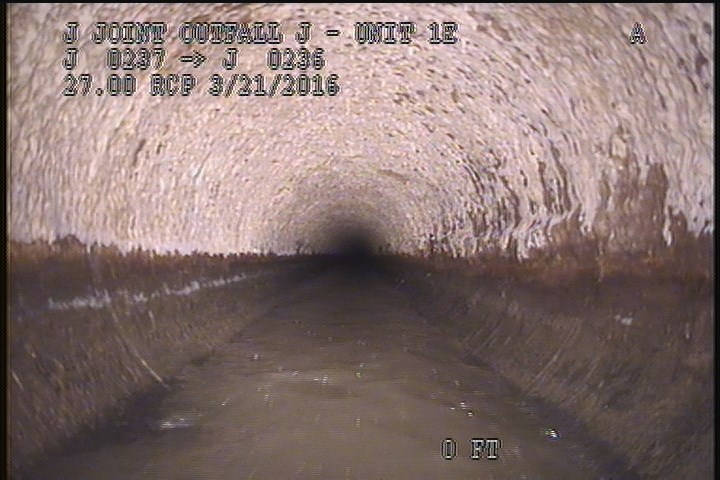

  • General Observation - MAG COAT 98% START 9:00 TO 3:00

    2 ft. - General Observation - MAG COAT 98% START 9:00 TO 3:00

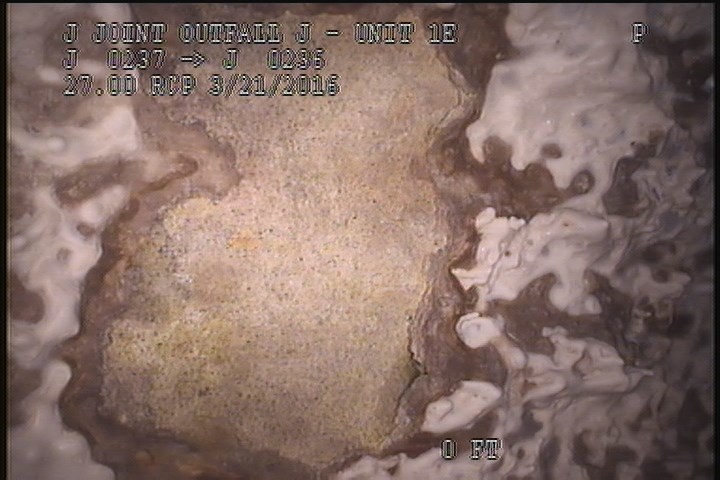

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - PEELING BLISTERING LAITANCE COAT UNDER MAG COAT

    2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - PEELING BLISTERING LAITANCE COAT UNDER MAG COAT

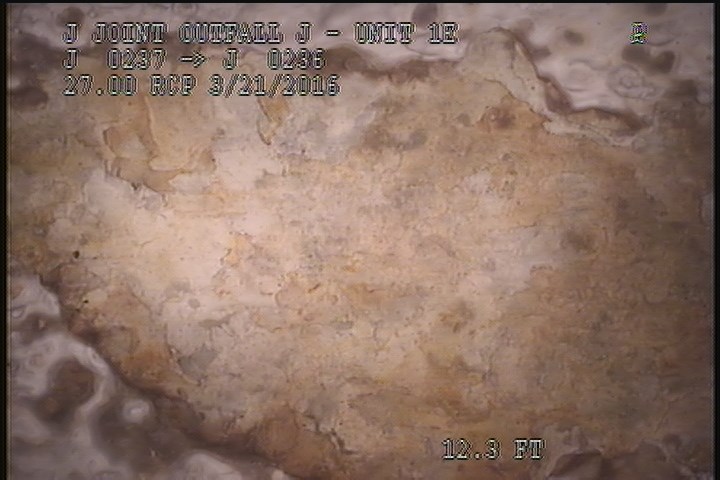

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: NO - PEELING LAITANCE COAT

    12.3 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: NO - PEELING LAITANCE COAT

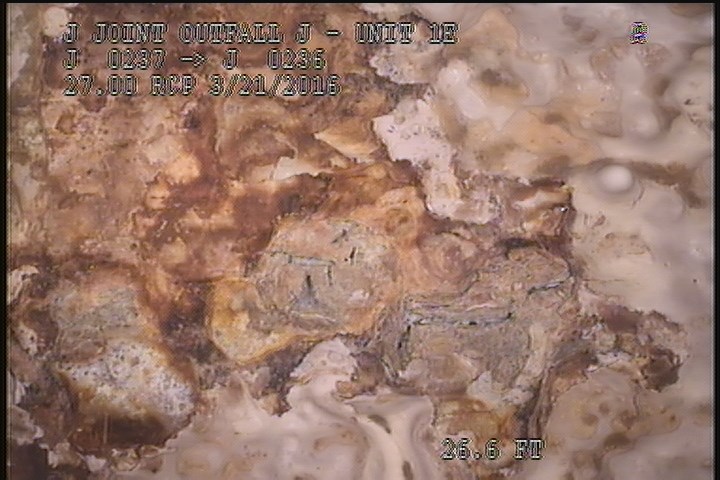

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES - BLISTERING LAITANCE COAT

    26.6 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES - BLISTERING LAITANCE COAT

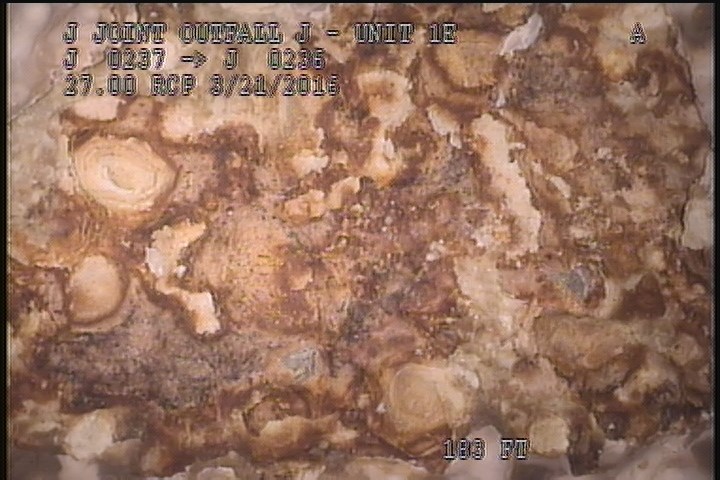

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: NO - BLISTERING LAITANCE COAT

    183 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: NO - BLISTERING LAITANCE COAT

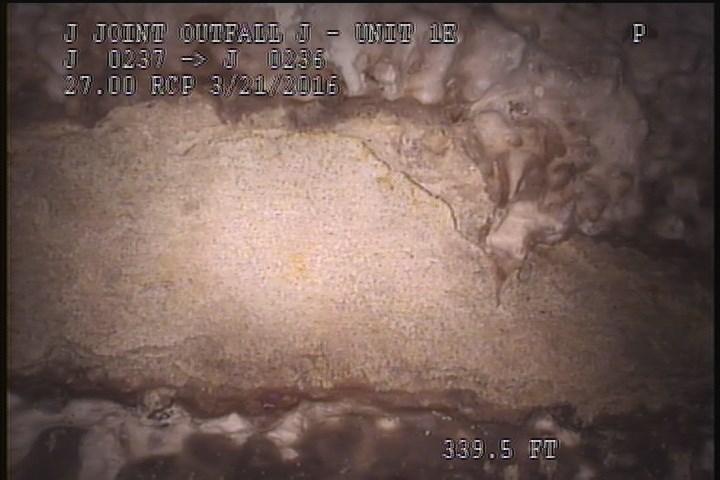

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES - PEELING LAITANCE COAT

    339.5 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES - PEELING LAITANCE COAT

All inspections of P11483Work order 0557681

Observations (14)

DistanceCodeObservation
355.1MGOMAG COAT 98% FINISH
183SSSBLISTERING LAITANCE COAT
0MGOMH CONN STUB 9:00
355.1SSSPEELING BLISTERING LAITANCE COAT
0MWL—
355.1MGOMH CONN STUB 9:00
339.5SSSPEELING LAITANCE COAT
355.4AMH3:15AM
12.3SSSPEELING LAITANCE COAT
0MWM—
0AMH2:45AM
26.6SSSBLISTERING LAITANCE COAT
2MGOMAG COAT 98% START 9:00 TO 3:00
2SSSPEELING BLISTERING LAITANCE COAT UNDER MAG COAT

Properties (3)

custom_field_two
3
customer
LACSD
datetime
2016-03-21T01:13:53-07:00
