Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 30, 2016, 10:44 AM

  • 05 1091_05 2490_3302016_044743.mp4

Date
03/30/2016
W/O
0557603
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00488
PipeID
P20889
Time
3:44 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0104
Sewer Name
05 MONETA EXTENSION TRUNK, SECTION 1
City
LAWNDALE
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
18
Purpose
Routine Assessment
Project
20160325MDM_MONETA_EXTENSION_TRUNK_SECTION_1
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Upstream MH
05 2490
Downstream MH
05 1091
Dir. of Survey
Upstream
Length Surveyed
27.9 ft.
Total Length
27.9 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2200
O&M Rating
4
Overall Index
2
Overall Quick
—
Overall Rating
4
Pipe schematic from manhole 05 2490 to 05 1091
MH: 05 2490MH: 05 1091upstream0 ft. AMH - Upstream Manhole, Survey Ends - 4:45AM0.3 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active0.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish0.3 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active2.6 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 03 to 04 o'clock, , within 8 inches of joint: NO14.6 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start26 ft. MGO - General Observation - 24" VCP27.9 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active27.9 ft. AMH - Downstream Manhole, Survey Begins - 4:35AM27.9 ft. MWM - Water Mark, 40 %of cross sectional area27.9 ft. MWL - Water Level, 10 %of cross sectional area

Observation photos (2)

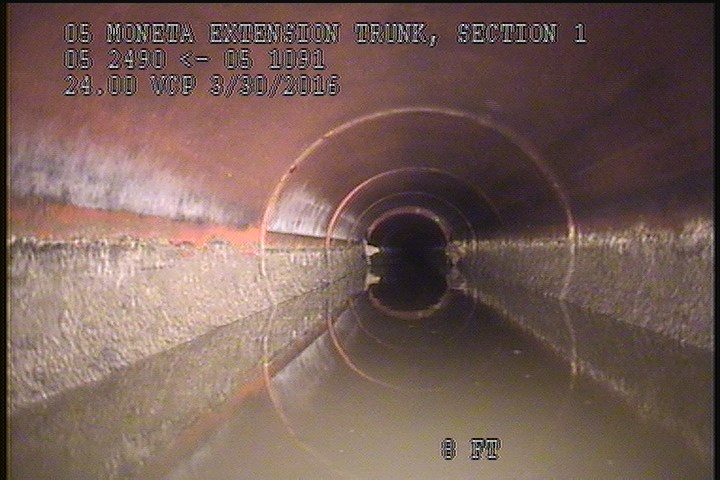

  • General Observation - 24" VCP

    1.9 ft. - General Observation - 24" VCP

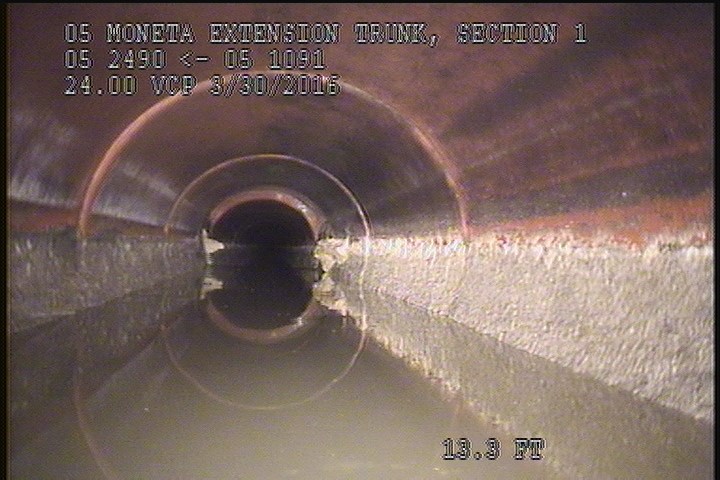

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    13.3 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

All inspections of P20889Work order 0557603

Observations (11)

DistanceCodeObservation
0MGOConn. @ Mh, 9 O' Clock. Active
27.6MGOConn. @ Mh, 3 O' Clock. Active
13.3DAGS—
27.6DAGS—
27.6MGOConn. @ Mh, 9 O' Clock. Active
0AMH4:35AM
25.3DAGS—
0MWM—
27.9AMH4:45AM
1.9MGO24" VCP
0MWL—

Properties (3)

custom_field_two
4
customer
LACSD
datetime
2016-03-30T03:44:35-07:00
