Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 30, 2016, 09:31 AM

  • 05 1093_05 1092_3302016_024643.mp4

Date
03/30/2016
W/O
0557603
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00488
PipeID
P06327
Time
2:31 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0103
Sewer Name
05 MONETA EXTENSION TRUNK, SECTION 1
City
LAWNDALE
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
17
Purpose
Routine Assessment
Project
20160325MDM_MONETA_EXTENSION_TRUNK_SECTION_1
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Upstream MH
05 1093
Downstream MH
05 1092
Dir. of Survey
Downstream
Length Surveyed
322.3 ft.
Total Length
322.3 ft.
Structural Index
2
Structural Quick
5141
Structural Rating
77
O&M Index
3
O&M Quick
4121
O&M Rating
6
Overall Index
2
Overall Quick
—
Overall Rating
83
Pipe schematic from manhole 05 1093 to 05 1092
MH: 05 1093MH: 05 1092downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 2:35AM0 ft. MWM - Water Mark, 40 %of cross sectional area5.4 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Active17 ft. FC - Fracture Circumferential, from 08 to 11 o'clock, within 8 inches of joint: YES - SLIGHT17 ft. FC - Fracture Circumferential, from 11 to 12 o'clock, within 8 inches of joint: YES - SLIGHT32.3 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - H93 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - H98.5 ft. BVV - Broken Void Visible, from 02 to 05 o'clock, within 8 inches of joint: YES - SEVERE FRACTURE98.8 ft. MGP - General Photograph102.8 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Open105 ft. FC - Fracture Circumferential, from 10 to 01 o'clock, within 8 inches of joint: YES - H105 ft. MWM - Water Mark, 60 %of cross sectional area111.2 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - SLIGHT120.5 ft. CC - Crack Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES144.7 ft. FC - Fracture Circumferential, from 11 to 03 o'clock, within 8 inches of joint: YES - SLIGHT154 ft. FL - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES - SLIGHT169.3 ft. FC - Fracture Circumferential, from 11 to 04 o'clock, within 8 inches of joint: YES - H181.7 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - H181.7 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H184.7 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - H190.8 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - SLIGHT196.9 ft. FC - Fracture Circumferential, from 09 to 01 o'clock, within 8 inches of joint: YES - SLIGHT205.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES205.9 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Active211.4 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - H257.7 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - H257.7 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - SLIGHT260.4 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - SLIGHT260.4 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - SLIGHT261.1 ft. CC - Crack Circumferential, from 01 to 03 o'clock, within 8 inches of joint: YES263.8 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - H266.5 ft. FC - Fracture Circumferential, from 09 to 03 o'clock, within 8 inches of joint: YES - H269.7 ft. FC - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - H275.6 ft. FC - Fracture Circumferential, from 09 to 01 o'clock, within 8 inches of joint: YES - H287.9 ft. FC - Fracture Circumferential, from 09 to 01 o'clock, within 8 inches of joint: YES - SLIGHT291.1 ft. FC - Fracture Circumferential, from 09 to 10 o'clock, within 8 inches of joint: YES - H297 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES - H306.5 ft. FL - Fracture Longitudinal, at 11 o'clock, within 8 inches of joint: YES - H309.8 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - H312.4 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - SLIGHT318.9 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES - SLIGHT322 ft. MGO - General Observation - MH CONN ACTIVE 20% GREASE322 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active322.3 ft. AMH - Downstream Manhole, Survey Ends - 3:25AM

Observation photos (5)

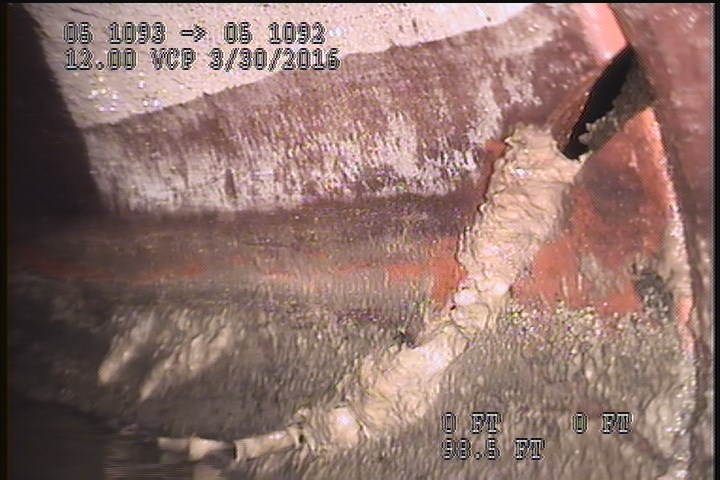

  • Broken Void Visible, from 02 to 05 o'clock, within 8 inches of joint: YES - SEVERE FRACTURE

    98.5 ft. - Broken Void Visible, from 02 to 05 o'clock, within 8 inches of joint: YES - SEVERE FRACTURE

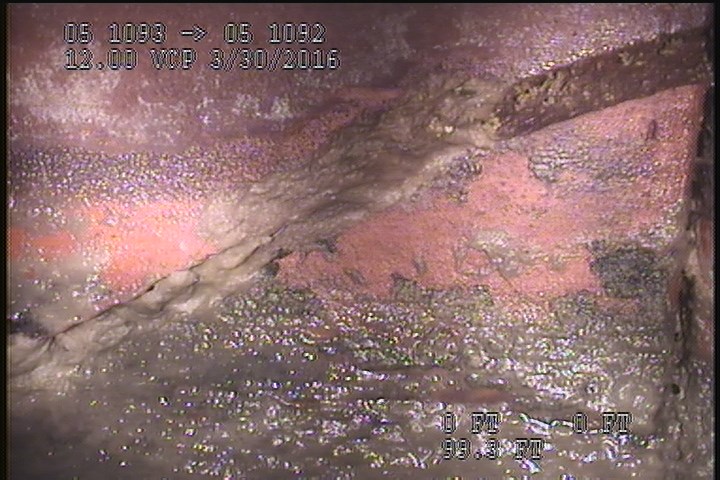

  • General Photograph

    98.8 ft. - General Photograph

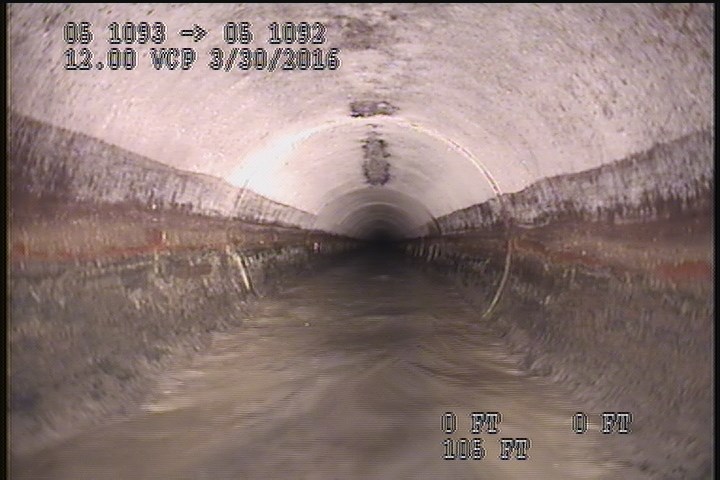

  • Water Mark, 60 %of cross sectional area

    105 ft. - Water Mark, 60 %of cross sectional area

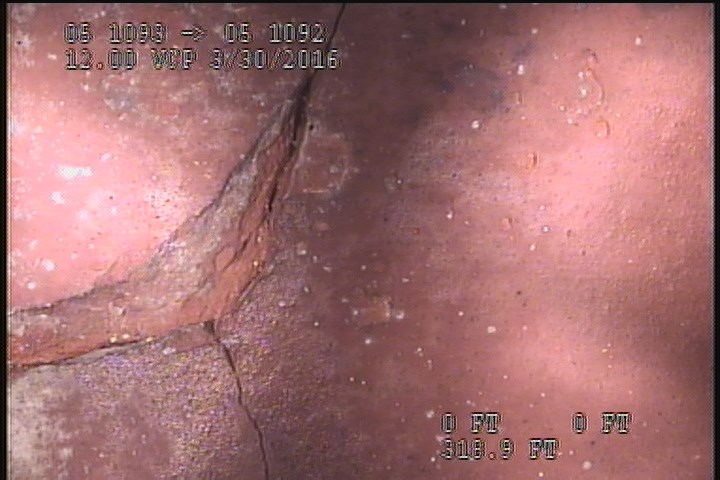

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES - SLIGHT

    318.9 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES - SLIGHT

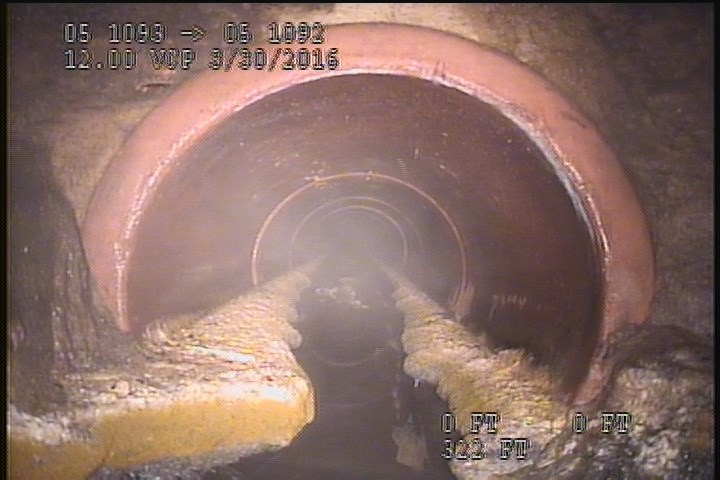

  • General Observation - MH CONN ACTIVE 20% GREASE

    322 ft. - General Observation - MH CONN ACTIVE 20% GREASE

All inspections of P06327Work order 0557603

Observations (45)

DistanceCodeObservation
0MWL—
105FCH
297FLH
32.3FLH
266.5FCH
260.4FLSLIGHT
269.7FCH
98.8MGP—
322.3AMH3:25AM
181.7FCH
93FCH
205.9DAGS—
211.4FCH
306.5FLH
0AMH2:35AM
257.7FCH
318.9FMSLIGHT
190.8FCSLIGHT
257.7FCSLIGHT
17FCSLIGHT
260.4FCSLIGHT
322MGOMH CONN ACTIVE 20% GREASE
5.4TFActive
184.7FCH
144.7FCSLIGHT
120.5CC—
102.8TFOpen
181.7FLH
105MWM—
275.6FCH
0MWM—
322MGOConn. @ Mh, 9 O' Clock. Active
98.5BVVSEVERE FRACTURE
312.4FCSLIGHT
17FCSLIGHT
111.2FLSLIGHT
291.1FCH
169.3FCH
309.8FCH
261.1CC—
287.9FCSLIGHT
205.9TFActive
263.8FLH
196.9FCSLIGHT
154FLSLIGHT

Properties (4)

custom_field_three
BROKEN PIPE VOID=SEVERE FRACTURE
custom_field_two
1
customer
LACSD
datetime
2016-03-30T02:31:25-07:00
