Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 25, 2016, 08:09 AM

  • 05 1100_05 1099_3252016_041940.mp4

Date
03/25/2016
W/O
0557603
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00488
PipeID
P06334
Time
1:09 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0100
Sewer Name
05 MONETA EXTENSION TRUNK, SECTION 1
City
LAWNDALE
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
17
Purpose
Routine Assessment
Project
20160325MDM_MONETA_EXTENSION_TRUNK_SECTION_1
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Upstream MH
05 1100
Downstream MH
05 1099
Dir. of Survey
Downstream
Length Surveyed
194.7 ft.
Total Length
194.7 ft.
Structural Index
3
Structural Quick
3827
Structural Rating
38
O&M Index
3
O&M Quick
4121
O&M Rating
6
Overall Index
3
Overall Quick
—
Overall Rating
44
Pipe schematic from manhole 05 1100 to 05 1099
MH: 05 1100MH: 05 1099downstream0 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active0 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 4:10AM0 ft. MWL - Water Level, 10 %of cross sectional area5.4 ft. FC - Fracture Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES - HAIRLINE24.4 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: YES, 6"43.7 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - H57.9 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES - H57.9 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H63.4 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - H78.5 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - H83.3 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - H94.8 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES - H98.4 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES, Start - H98.4 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES, Start - H103.6 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES, Finish - H103.6 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES, Finish - H115.2 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES, Start - H115.2 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES, Start - H120.1 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES, Finish - H122.3 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES, Finish - H123.8 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: YES, 6"125.6 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES - H133.9 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - H135.7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start142.6 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - H194.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish194.3 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active194.7 ft. AMH - Downstream Manhole, Survey Ends - 4:35AM

Observation photos (3)

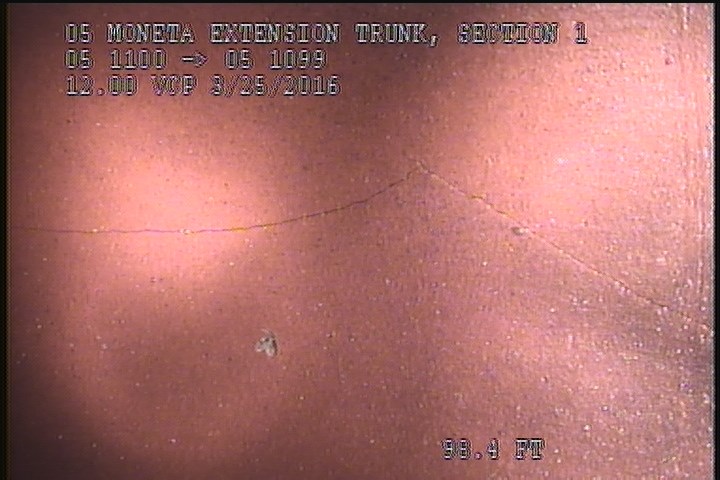

  • Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES, Start - H

    98.4 ft. - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES, Start - H

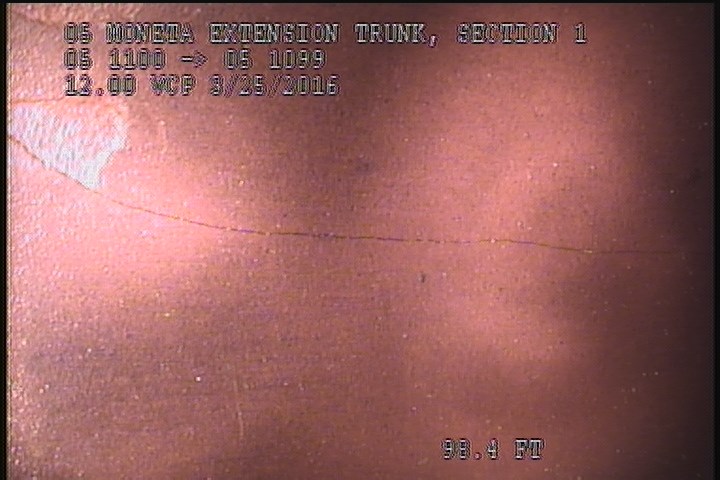

  • Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES, Start - H

    98.4 ft. - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES, Start - H

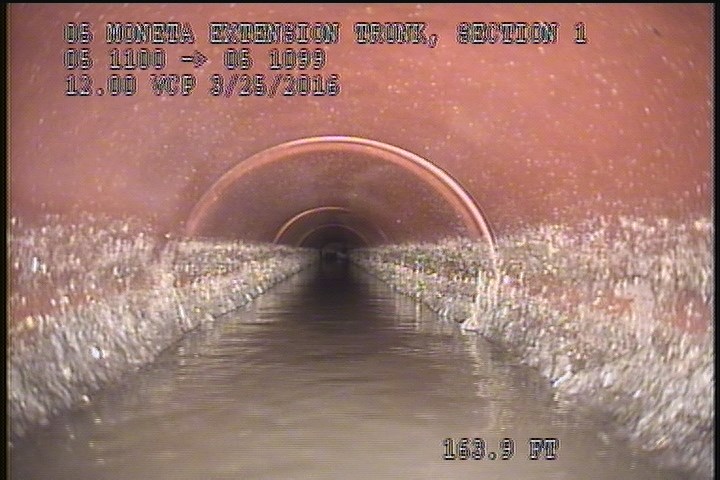

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    135.7 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

All inspections of P06334Work order 0557603

Observations (29)

DistanceCodeObservation
0MGOConn. @ Mh, 3 O' Clock. Active
83.3FCH
103.6FLH
0MWM—
123.8TFC—
142.6FCH
135.7DAGS—
0AMH4:10AM
98.4FLH
133.9FCH
98.4FLH
0MWL—
120.1FLH
115.2FLH
57.9FLH
122.3FLH
24.4TFC—
115.2FLH
43.7FCH
78.5FCH
5.4FCHAIRLINE
103.6FLH
194.3DAGS—
94.8FLH
125.6FLH
194.7AMH4:35AM
63.4FCH
57.9FLH
194.3MGOConn. @ Mh, 3 O' Clock. Active

Properties (4)

custom_field_three
HAIRLINE LONG FRACTURES JOINT TO JOINT
custom_field_two
2
customer
LACSD
datetime
2016-03-25T01:09:24-07:00
