Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 25, 2016, 03:59 PM

  • 05 1820_05 1819_3252016_093730.mp4

Date
03/25/2016
W/O
0552367
Weather
Dry
Operator/Surveyor
MIRANDA
Sewer ID
Z00508
PipeID
P07043
Time
8:59 AM
Certificate
U-1014-06022542
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7084
Sewer Name
05 PALOS VERDES-TORRANCE CONNECTION TRUNK
City
PALOS VERDES
Loc. details
Other
Location Code
Z
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
31
Purpose
Routine Assessment
Project
20160325AM_PALOS_VERDES_TORRANCE_CONNECTION_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
05 1819
Downstream MH
05 1820
Dir. of Survey
Upstream
Length Surveyed
85.1 ft.
Total Length
85.1 ft.
Structural Index
5
Structural Quick
5100
Structural Rating
5
O&M Index
2
O&M Quick
3614
O&M Rating
22
Overall Index
2
Overall Quick
—
Overall Rating
27
Pipe schematic from manhole 05 1819 to 05 1820
MH: 05 1819MH: 05 1820upstream0 ft. MGP - General Photograph - BROKEN PIPE0 ft. AMH - Upstream Manhole, Survey Ends - 9:56 AM, INSPECTION COMPLETED @ THE BRICK/CONCRETE BULKHEAD0.3 ft. MGO - General Observation - ROOTS INSIDE THE MH. STACK0.4 ft. B - Broken, from 01 to 11 o'clock, within 8 inches of joint: NO3.2 ft. RFJ - Roots Fine Joint, from 12 to 12 o'clock, within 8 inches of joint: YESR, Finish43.5 ft. RMJ - Roots Medium Joint, from 04 to 08 o'clock, 10 %, within 8 inches of joint: YESR46.7 ft. RMJ - Roots Medium Joint, from 12 to 12 o'clock, 15 %, within 8 inches of joint: YESR50.3 ft. RMJ - Roots Medium Joint, from 12 to 12 o'clock, 15 %, within 8 inches of joint: YESR53.4 ft. RMJ - Roots Medium Joint, from 12 to 12 o'clock, 15 %, within 8 inches of joint: YESR57.2 ft. RMJ - Roots Medium Joint, from 12 to 12 o'clock, 15 %, within 8 inches of joint: YESR63.7 ft. RFJ - Roots Fine Joint, from 12 to 12 o'clock, within 8 inches of joint: YESR, Start67.3 ft. RFJ - Roots Fine Joint, from 12 to 12 o'clock, within 8 inches of joint: YESR70.2 ft. RFJ - Roots Fine Joint, from 12 to 12 o'clock, within 8 inches of joint: YESR - 20%73.8 ft. RFJ - Roots Fine Joint, from 12 to 12 o'clock, within 8 inches of joint: YESR - 10%79.4 ft. RMJ - Roots Medium Joint, from 06 to 02 o'clock, 10 %, within 8 inches of joint: YESR85.1 ft. MWL - Water Level, 0 %of cross sectional area - DRY LINE85.1 ft. MGO - General Observation - ACTIVE CONN. INSIDE THE MH. @ 03 O'CLOCK85.1 ft. AMH - Downstream Manhole, Survey Begins - 9:35 AM

Observation photos (6)

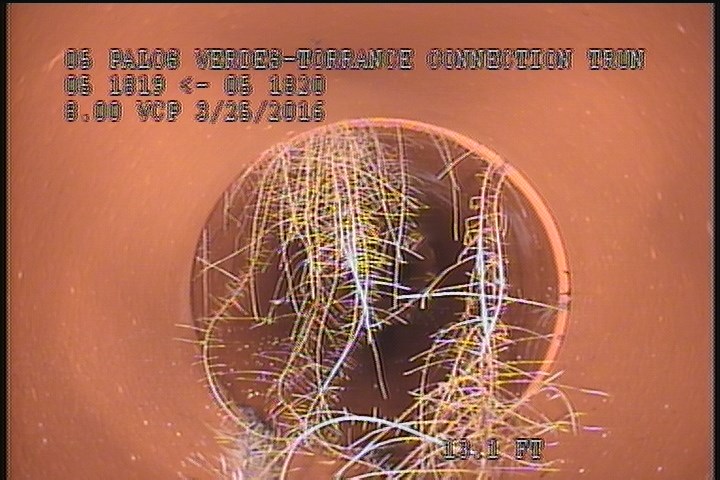

  • Roots Fine Joint, from 12 to 12 o'clock, within 8 inches of joint: YESR - 20%

    14.9 ft. - Roots Fine Joint, from 12 to 12 o'clock, within 8 inches of joint: YESR - 20%

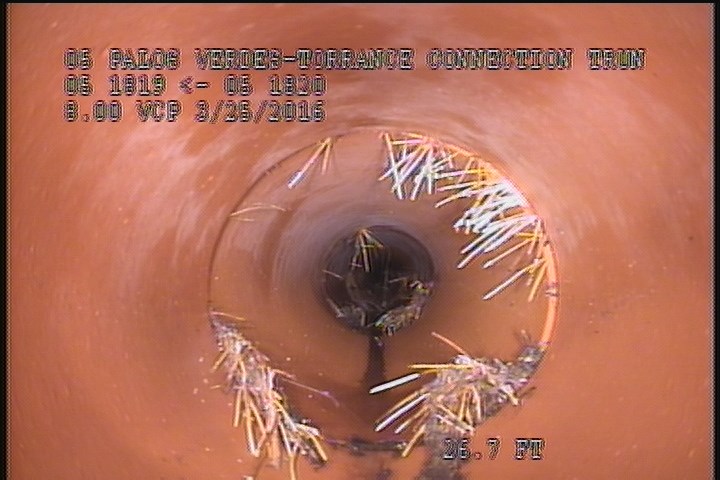

  • Roots Medium Joint, from 12 to 12 o'clock, 15 %, within 8 inches of joint: YESR

    27.9 ft. - Roots Medium Joint, from 12 to 12 o'clock, 15 %, within 8 inches of joint: YESR

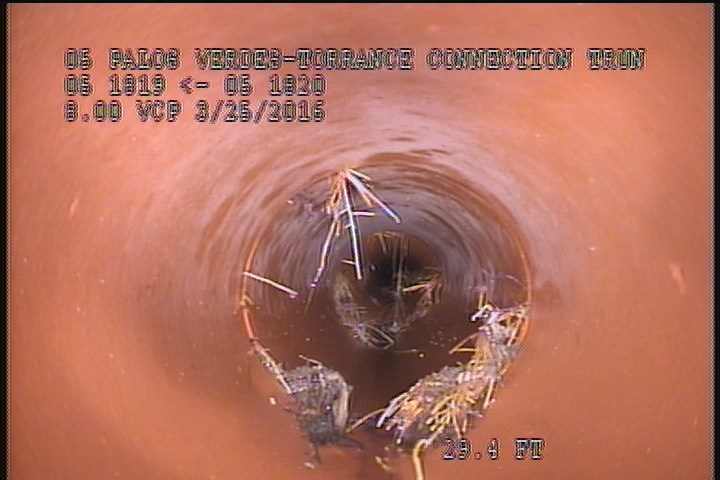

  • Roots Medium Joint, from 12 to 12 o'clock, 15 %, within 8 inches of joint: YESR

    31.7 ft. - Roots Medium Joint, from 12 to 12 o'clock, 15 %, within 8 inches of joint: YESR

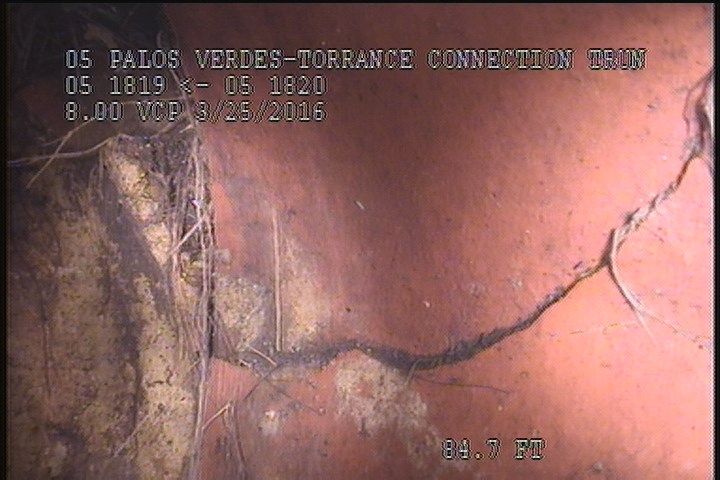

  • Broken, from 01 to 11 o'clock, within 8 inches of joint: NO

    84.7 ft. - Broken, from 01 to 11 o'clock, within 8 inches of joint: NO

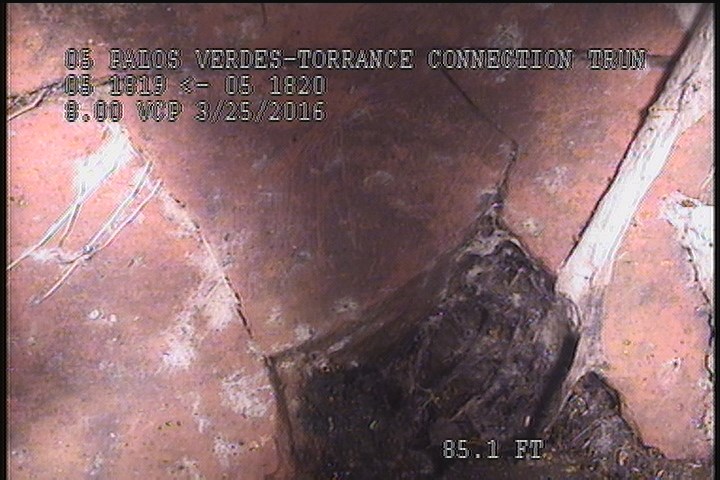

  • General Photograph - BROKEN PIPE

    85.1 ft. - General Photograph - BROKEN PIPE

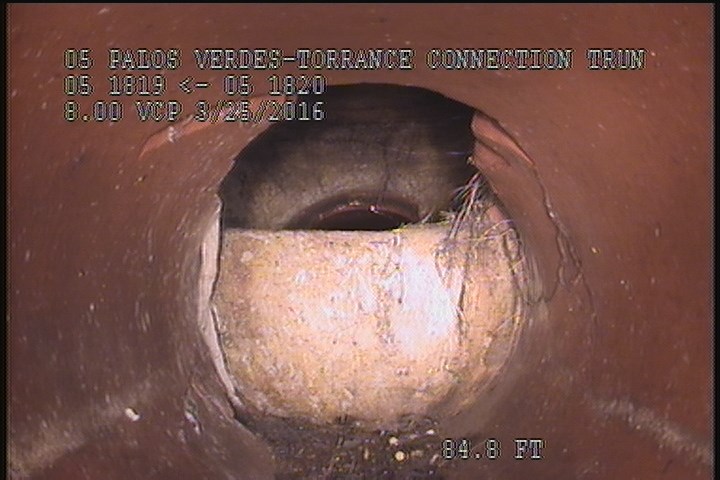

  • Upstream Manhole, Survey Ends - 9:56 AM, INSPECTION COMPLETED @ THE BRICK/CONCRETE BULKHEAD

    85.1 ft. - Upstream Manhole, Survey Ends - 9:56 AM, INSPECTION COMPLETED @ THE BRICK/CONCRETE BULKHEAD

All inspections of P07043Work order 0552367

Observations (18)

DistanceCodeObservation
81.9RFJ—
11.3RFJ10%
14.9RFJ20%
27.9RMJ—
38.4RMJ—
85.1MGPBROKEN PIPE
0MWLDRY LINE
31.7RMJ—
17.8RFJ—
0MGOACTIVE CONN. INSIDE THE MH. @ 03 O'CLOCK
34.8RMJ—
41.6RMJ—
21.4RFJ—
85.1AMH9:56 AM, INSPECTION COMPLETED @ THE BRICK/CONCRETE BULKHEAD
5.7RMJ—
0AMH9:35 AM
84.8MGOROOTS INSIDE THE MH. STACK
84.7B—

Properties (4)

custom_field_three
PIPE IS GOOD, BUT BROKEN @ THE U/S SOFFIT
custom_field_two
1
customer
LACSD
datetime
2016-03-25T08:59:22-07:00
