Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 24, 2016, 07:40 PM

  • 05 2311_05 2310_3242016_124735.mp4

Date
03/24/2016
W/O
0557575
Weather
Dry
Operator/Surveyor
MIRANDA
Sewer ID
Z00462
PipeID
P07433
Time
12:40 PM
Certificate
U-1014-06022542
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7083
Sewer Name
05 INGLEWOOD TRUNK #1 RELIEF
City
INGLEWOOD
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
05
Purpose
Routine Assessment
Project
20160324AM_INGLEWOOD_TRUNK_1_RELIEF
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
05 2311
Downstream MH
05 2310
Dir. of Survey
Downstream
Length Surveyed
511.5 ft.
Total Length
511.5 ft.
Structural Index
5
Structural Quick
5100
Structural Rating
5
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
5
Overall Quick
—
Overall Rating
5
Pipe schematic from manhole 05 2311 to 05 2310
MH: 05 2311MH: 05 2310downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 12:47 PM0 ft. MWM - Water Mark, 20 %of cross sectional area91.2 ft. B - Broken, from 03 to 05 o'clock, within 8 inches of joint: YES509.8 ft. MGO - General Observation - SLIGHT GREASE THROUGHOUT THE REACH510.4 ft. MGO - General Observation - ROACHES INSIDE THE MH.510.4 ft. MGO - General Observation - ACTIVE CONN. INSIDE THE MH. @ 09 O'CLOCK510.7 ft. MGO - General Observation - CONCRETE BULKHEADED CONN. INSIDE THE MH. @ 03 O'CLOCK511.5 ft. AMH - Downstream Manhole, Survey Ends - 1:09 PM

Observation photos (2)

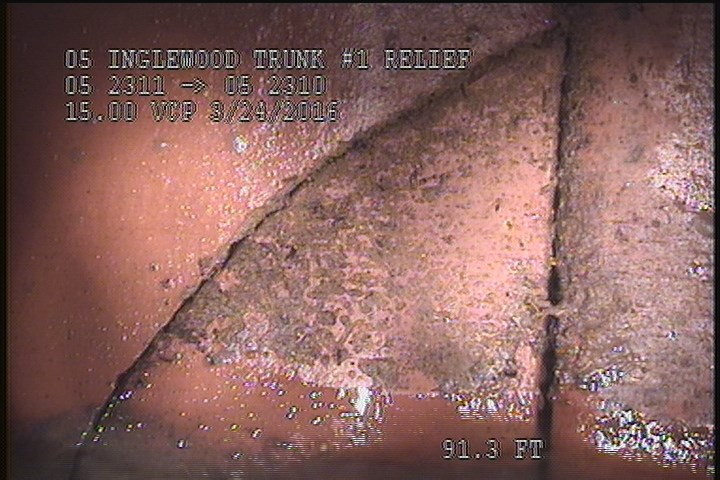

  • Broken, from 03 to 05 o'clock, within 8 inches of joint: YES

    91.2 ft. - Broken, from 03 to 05 o'clock, within 8 inches of joint: YES

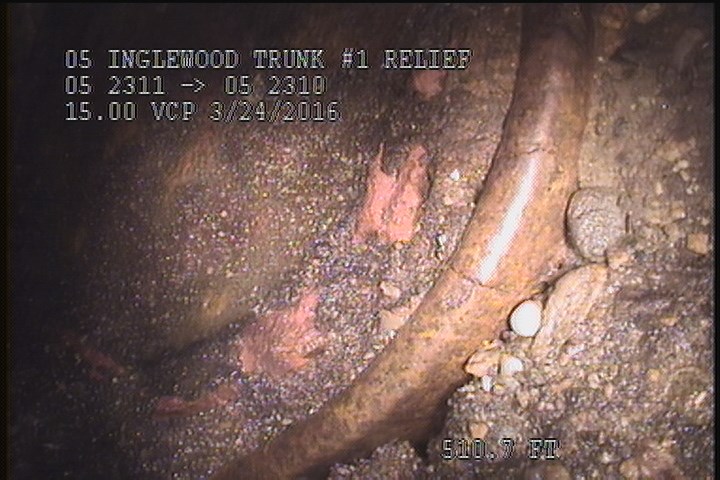

  • General Observation - CONCRETE BULKHEADED CONN. INSIDE THE MH. @ 03 O'CLOCK

    510.7 ft. - General Observation - CONCRETE BULKHEADED CONN. INSIDE THE MH. @ 03 O'CLOCK

All inspections of P07433Work order 0557575

Observations (9)

DistanceCodeObservation
510.4MGOROACHES INSIDE THE MH.
0MWL—
510.7MGOCONCRETE BULKHEADED CONN. INSIDE THE MH. @ 03 O'CLOCK
509.8MGOSLIGHT GREASE THROUGHOUT THE REACH
91.2B—
510.4MGOACTIVE CONN. INSIDE THE MH. @ 09 O'CLOCK
0AMH12:47 PM
0MWM—
511.5AMH1:09 PM

Properties (5)

custom_field_three
BROKEN PIPE- 91' D/S
custom_field_two
1
customer
LACSD
datetime
2016-03-24T12:40:19-07:00
year_laid
19831123
