Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 24, 2016, 08:04 AM

  • 05 0044_05 0043_3242016_025059.mp4

Date
03/24/2016
W/O
0552270
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00431
PipeID
P05330
Time
1:04 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0099
Sewer Name
05 DISTRICT #5 MAIN TRUNK
City
TORRANCE
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
24
Purpose
Routine Assessment
Project
20160323MDM_DISTRICT_5_MAIN_TRUNK
Material
RCP-CTL
Shape
Circular
Height
48 in.
Upstream MH
05 0044
Downstream MH
05 0043
Dir. of Survey
Downstream
Length Surveyed
658.5 ft.
Total Length
658.5 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
2
Pipe schematic from manhole 05 0044 to 05 0043
MH: 05 0044MH: 05 0043downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 2:50AM4.4 ft. DSZ - Deposits Settled Other, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES - SLUDGE DEBRIES13.5 ft. MGO - General Observation - 48" RCP CTL - FR POLY326.8 ft. MGP - General Photograph - 48" RCP CTL-FR POLY365.6 ft. MGP - General Photograph602.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Active658.2 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active658.5 ft. AMH - Downstream Manhole, Survey Ends - 3:15AM

Observation photos (3)

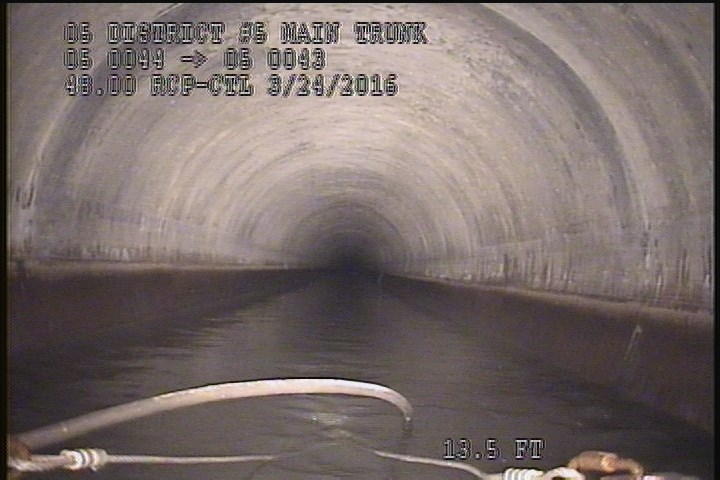

  • General Observation - 48" RCP CTL - FR POLY

    13.5 ft. - General Observation - 48" RCP CTL - FR POLY

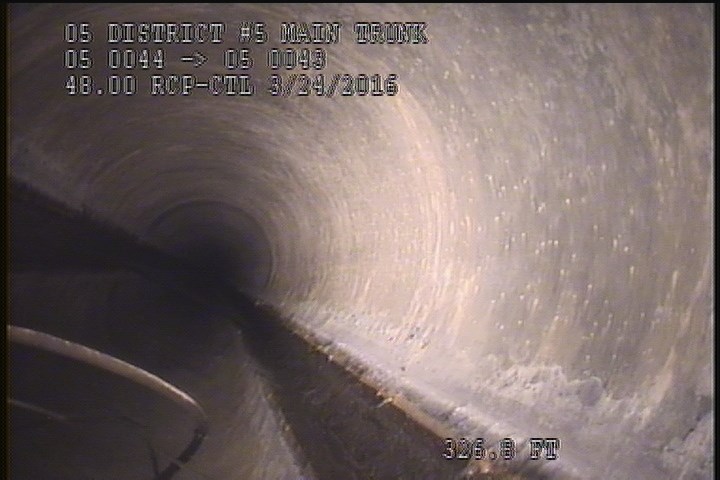

  • General Photograph - 48" RCP CTL-FR POLY

    326.8 ft. - General Photograph - 48" RCP CTL-FR POLY

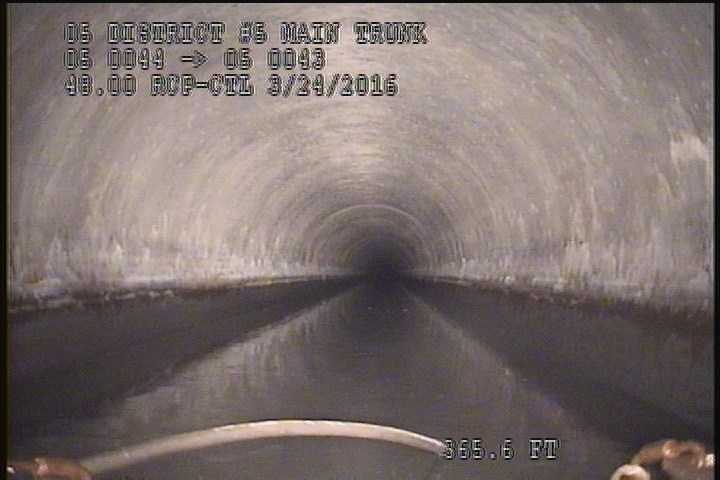

  • General Photograph

    365.6 ft. - General Photograph

All inspections of P05330Work order 0552270

Observations (10)

DistanceCodeObservation
0MWL—
0MWM—
326.8MGP48" RCP CTL-FR POLY
0AMH2:50AM
13.5MGO48" RCP CTL - FR POLY
658.5AMH3:15AM
602.7TFActive
365.6MGP—
658.2MGOConn. @ Mh, 3 O' Clock. Active
4.4DSZSLUDGE DEBRIES

Properties (3)

custom_field_two
4
customer
LACSD
datetime
2016-03-24T01:04:22-07:00
