Wastewater/Activity/PacpInspection/1.0Mar 16, 2016, 05:39 PM
21 0929_21 0928_3162016_105758.mp4
- Date
- 03/16/2016
- W/O
- 0552361
- Weather
- Dry
- Operator/Surveyor
- MIRANDA
- Sewer ID
- Z00760
- PipeID
- P16017
- Time
- 10:39 AM
- Certificate
- U-1014-06022542
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7077
- Sewer Name
- 21 CLAREMONT OUTFALL TRUNK
- City
- POMONA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 10
- Purpose
- Routine Assessment
- Project
- 20160316AM_CLAREMONT_OUTFALL_TRUNK
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Upstream MH
- 21 0929
- Downstream MH
- 21 0928
- Dir. of Survey
- Downstream
- Length Surveyed
- 528.9 ft.
- Total Length
- 528.9 ft.
- Structural Index
- 3
- Structural Quick
- 3121
- Structural Rating
- 5
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 9
Observation photos (4)

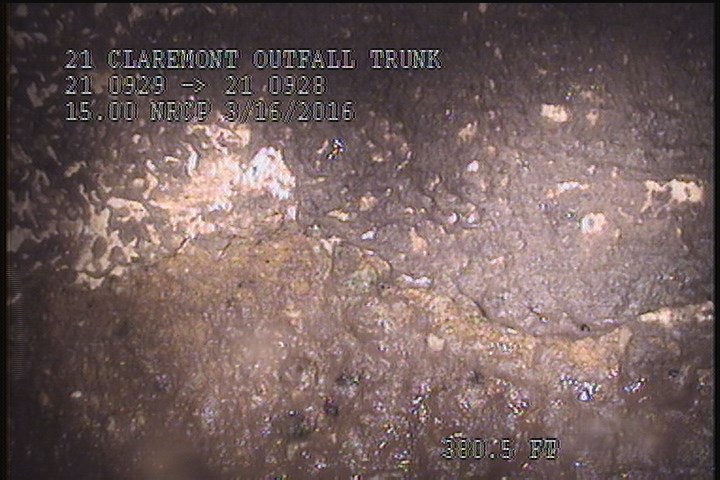

0 ft. - General Observation - ROACHES INSIDE THE MH.

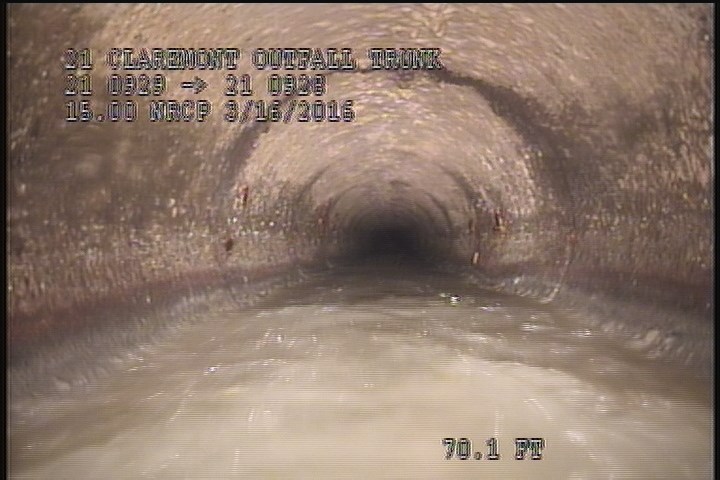

2 ft. - General Observation - 65% MAG COAT FROM 09 TO 03 O'CLOCK, START

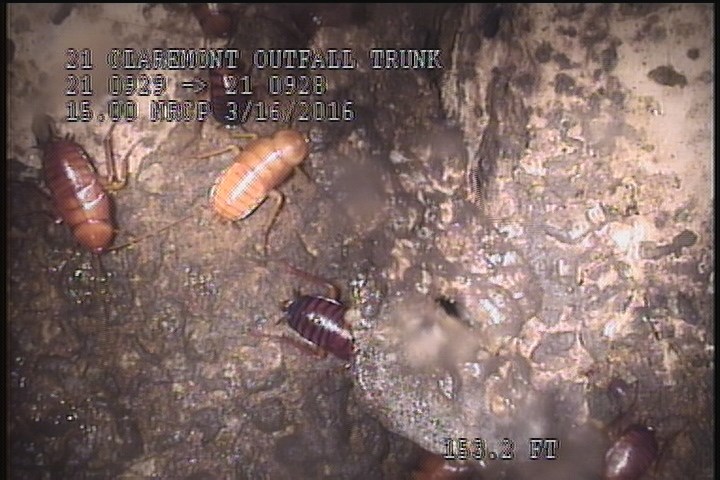

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

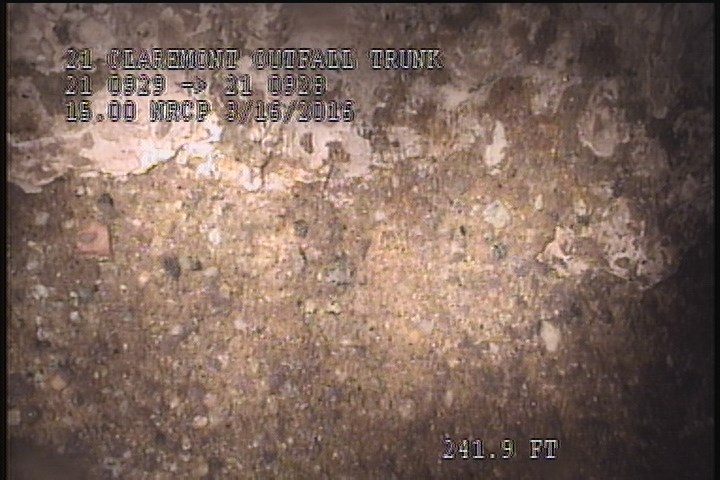

2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Start
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 2 | MGO | 65% MAG COAT FROM 09 TO 03 O'CLOCK, START |
| 0 | AMH | 10:55 AM |
| 0 | MGO | ROACHES INSIDE THE MH. |
| 527.5 | SSS | — |
| 528.9 | AMH | 11:22 AM |
| 527.5 | MGO | 65% MAG COAT FROM 09 TO 03 O'CLOCK, FINISH |
| 2 | SSS | — |
| 527.5 | MGO | SLIGHT GREASE THROUGHOUT THE REACH |
| 0 | MWM | — |
| 527.5 | SAV | — |
| 527.5 | MGO | ROACHES INSIDE THE MH. |
| 527.5 | MGO | SAGS THROUGHOUT THE REACH |
| 0 | MWL | — |
| 2 | SAV | — |
Properties (4)
- custom_field_three
- SPALLING & EXPOSED AGGREGATE
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-03-16T10:39:46-07:00
