Wastewater/Activity/PacpInspection/1.0Mar 16, 2016, 05:52 AM
- Date
- 03/15/2016
- W/O
- 0557681
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00057
- PipeID
- P24759
- Time
- 10:52 PM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G6674
- Sewer Name
- J JOINT OUTFALL J - UNIT 1E
- City
- PALO VERDES
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 47
- Purpose
- Capital Improvement Program Assesment
- Project
- 20160315MDM_JOINT_OUTFALL_J_UNIT_1E
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 27 in.
- Upstream MH
- J 0230
- Downstream MH
- J 0493
- Dir. of Survey
- Downstream
- Length Surveyed
- 80.4 ft.
- Total Length
- 80.4 ft.
- Structural Index
- 2
- Structural Quick
- 322B
- Structural Rating
- 38
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 38
Observation photos (5)

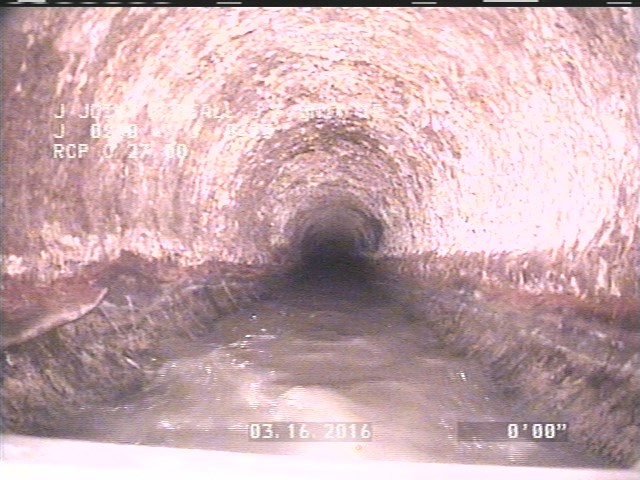

2 ft. - General Observation - MAG COAT 760% START 8:00 TO 4:00

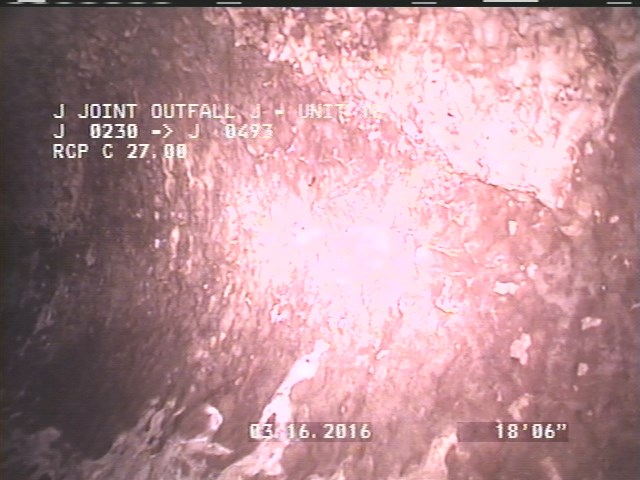

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - PEELING BLISTERING LAITANCE COAT

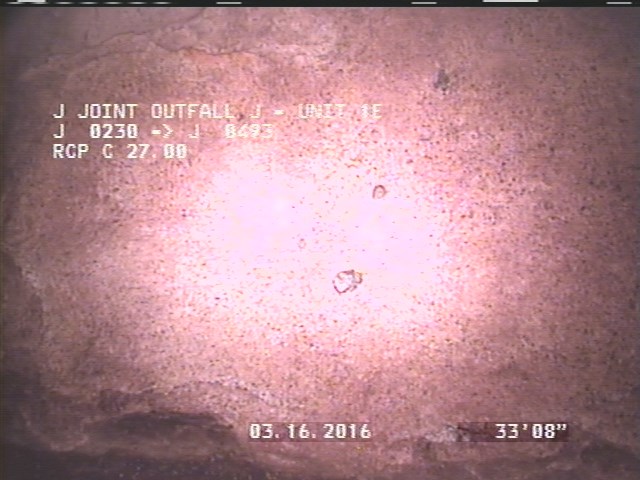

33.7 ft. - Surface Aggregate Visible, from 08 to 10 o'clock, within 8 inches of joint: NO - SEVERE AGG SPORATIC

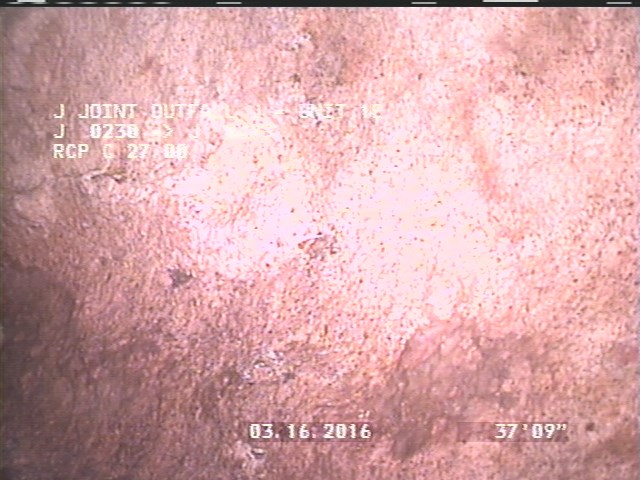

37.8 ft. - Surface Aggregate Visible, from 02 to 04 o'clock, within 8 inches of joint: YES - SEVERE AGG SPORATIC

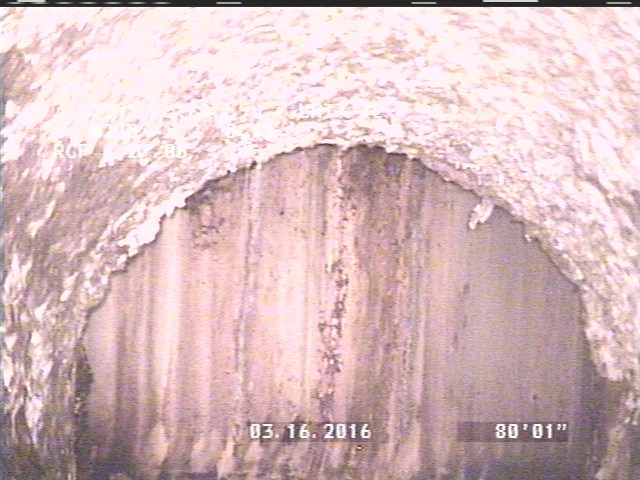

80.1 ft. - General Observation - ZOOM 17'
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 2 | MGO | MAG COAT 760% START 8:00 TO 4:00 |
| 80.1 | MGO | ZOOM 17' |
| 2 | SSS | PEELING BLISTERING LAITANCE COAT |
| 0 | AMH | 12:50ANAM |
| 80.1 | SSS | — |
| 0 | MWL | — |
| 0 | MWM | — |
| 80.4 | AMH | 1:05AM |
| 37.8 | SAV | SEVERE AGG SPORATIC |
| 33.7 | SAV | SEVERE AGG SPORATIC |
Properties (3)
- custom_field_three
- EXP AGG
- customer
- LACSD
- datetime
- 2016-03-15T22:52:54-07:00
