Wastewater/Activity/PacpInspection/1.0Mar 14, 2016, 08:08 AM
21 0958_21 0957_3142016_014054.mp4
- Date
- 03/14/2016
- W/O
- 0552273
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00760
- PipeID
- P16053
- Time
- 1:08 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0091
- Sewer Name
- 21 CLAREMONT OUTFALL TRUNK
- City
- POMONA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 10
- Purpose
- Routine Assessment
- Project
- 20160314MDM_CLAREMONT_OUTFALL_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Upstream MH
- 21 0958
- Downstream MH
- 21 0957
- Dir. of Survey
- Downstream
- Length Surveyed
- 51.4 ft.
- Total Length
- 51.4 ft.
- Structural Index
- 5
- Structural Quick
- 5331
- Structural Rating
- 18
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 5
- Overall Quick
- —
- Overall Rating
- 18
Observation photos (5)

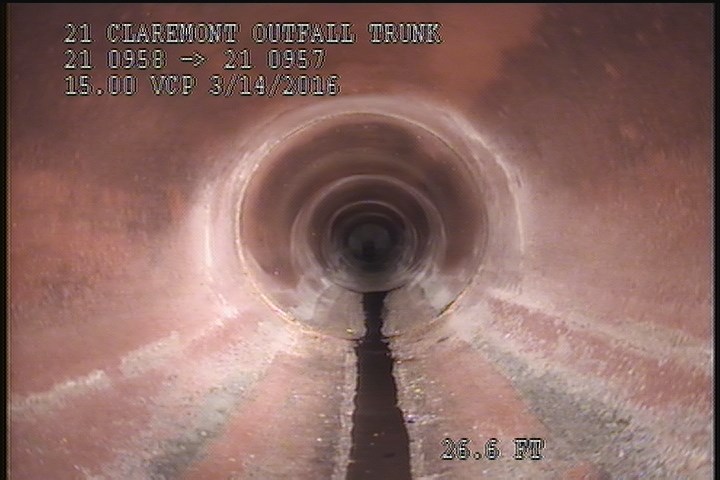

26.6 ft. - General Observation - 15" VCP

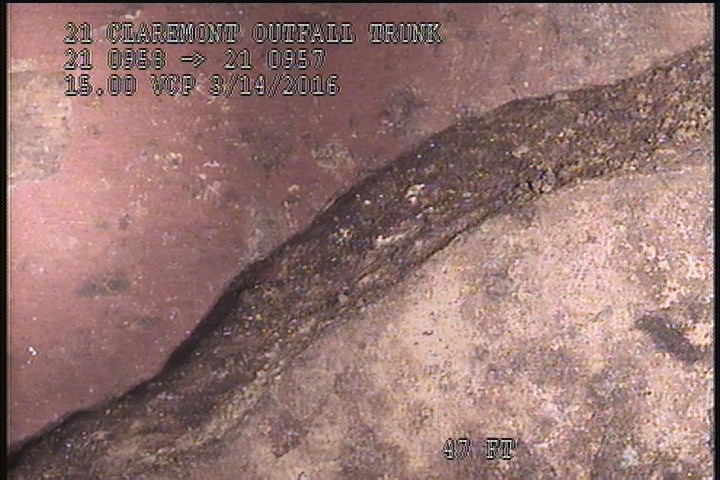

47 ft. - Broken Soil Visible, from 04 to 08 o'clock, within 8 inches of joint: YES - SEVERE

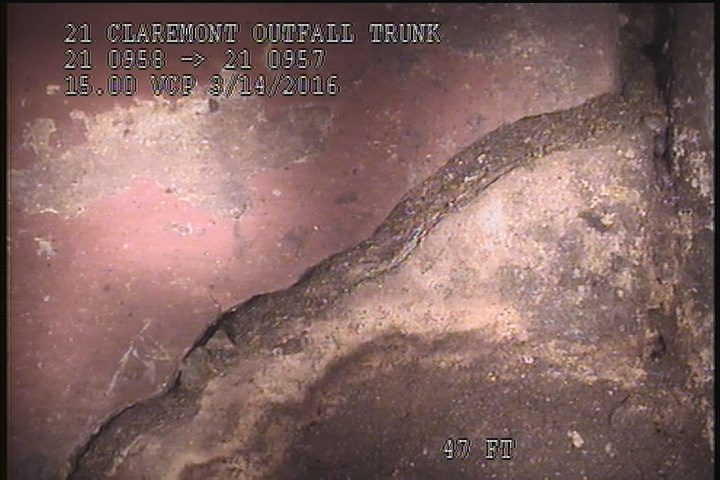

47 ft. - Broken Soil Visible, from 04 to 08 o'clock, within 8 inches of joint: YES - SEVERE

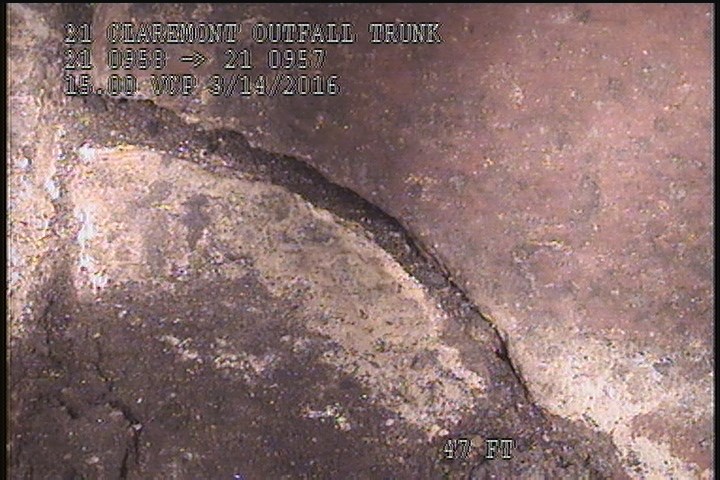

47 ft. - Broken Soil Visible, from 04 to 08 o'clock, within 8 inches of joint: YES - SEVERE

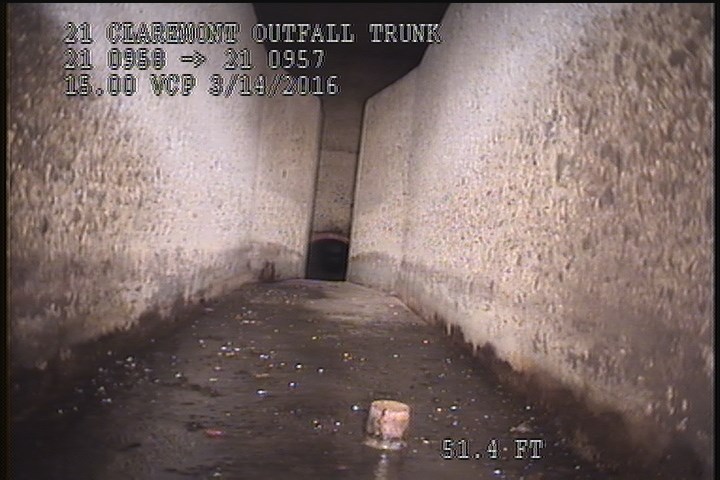

51.4 ft. - Downstream Manhole, Survey Ends - 1:30AM FLOW MONTERING MH
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 47 | BSV | SEVERE |
| 26.6 | MGO | 15" VCP |
| 0 | MWL | NO FLOW |
| 47 | BSV | SEVERE |
| 0 | AMH | 1:15AM |
| 0 | MWM | — |
| 47 | BSV | SEVERE |
| 51.4 | AMH | 1:30AM FLOW MONTERING MH |
| 10.4 | FL | HAIRLINE |
Properties (4)
- custom_field_three
- SEVERE FRACTURE SOIL VISIBLE
- custom_field_two
- 1
- customer
- LACSD
- datetime
- 2016-03-14T01:08:18-07:00
