Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 11, 2016, 09:46 AM

  • 05 0288_05 0287_3112016_025633.mp4

Date
03/11/2016
W/O
0557598
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00498
PipeID
P05496
Time
1:46 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0089
Sewer Name
05 OAK STREET-CENTER AVENUE TRUNK
City
INGLEWOOD
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
10
Purpose
Routine Assessment
Project
20160311MDM_OAK_STREET_CENTER_AVENUE_TRUNK
Material
Reinforced Concrete Pipe
Shape
Circular
Height
27 in.
Upstream MH
05 0288
Downstream MH
05 0287
Dir. of Survey
Downstream
Length Surveyed
119.9 ft.
Total Length
119.9 ft.
Structural Index
4
Structural Quick
5232
Structural Rating
16
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
4
Overall Quick
—
Overall Rating
16
Pipe schematic from manhole 05 0288 to 05 0287
MH: 05 0288MH: 05 0287downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active0 ft. MGO - General Observation - CHANNEL WALLS SEVERE CORRISON0 ft. AMH - Upstream Manhole, Survey Begins - 2:50AM0 ft. MWM - Water Mark, 20 %of cross sectional area2 ft. SAP - Surface Aggregate Projecting, at 04 o'clock, within 8 inches of joint: YES, Start - SEVERE2 ft. SAP - Surface Aggregate Projecting, at 08 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG8 ft. SRV - Surface Reinforcement Visible, at 04 o'clock, within 8 inches of joint: YES, Start - CIRCUM REBAR-POSSIBLE11.2 ft. SRV - Surface Reinforcement Visible, at 04 o'clock, within 8 inches of joint: NO - POSSIBLE REBAR OR GREASE STAINS15.3 ft. MGO - General Observation - POSSIBLE REBAR OR GREASE STAINS26.4 ft. MGO - General Observation - MAG COAT 90% START48 ft. SRV - Surface Reinforcement Visible, at 04 o'clock, within 8 inches of joint: YES, Finish - POSSIBLE REBAR OR GREASE STAINS86.5 ft. MGO - General Observation - GREASE ON SEVERE AGG119.5 ft. MGO - General Observation - MAG COAT 90% FINISH119.5 ft. SAP - Surface Aggregate Projecting, at 08 o'clock, within 8 inches of joint: YES, Finish119.5 ft. SAP - Surface Aggregate Projecting, at 04 o'clock, within 8 inches of joint: YES, Finish119.5 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active119.9 ft. MGO - General Observation - MAG COAT 95% 8:00 TO 4:00119.9 ft. AMH - Downstream Manhole, Survey Ends - 3:20AM

Observation photos (7)

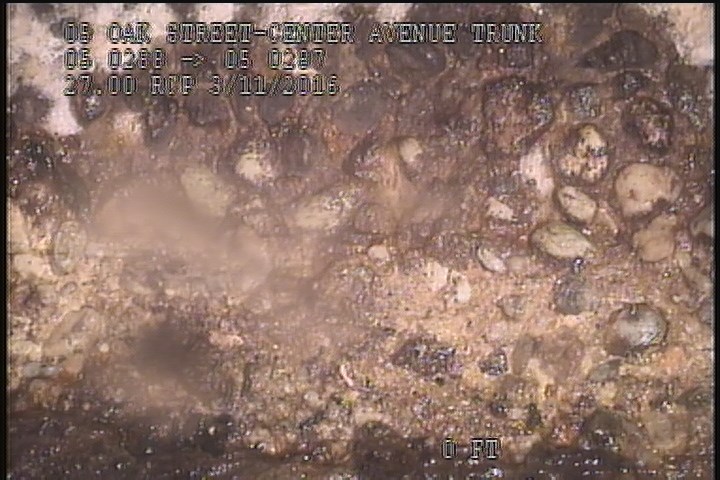

  • Surface Aggregate Projecting, at 04 o'clock, within 8 inches of joint: YES, Start - SEVERE

    2 ft. - Surface Aggregate Projecting, at 04 o'clock, within 8 inches of joint: YES, Start - SEVERE

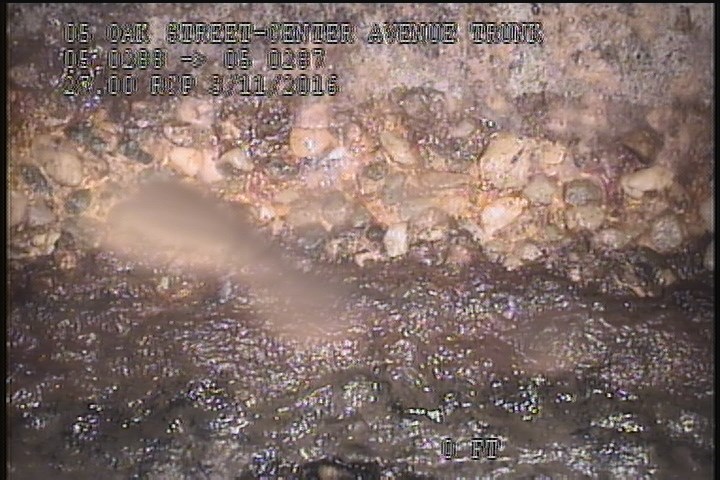

  • Surface Aggregate Projecting, at 08 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

    2 ft. - Surface Aggregate Projecting, at 08 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

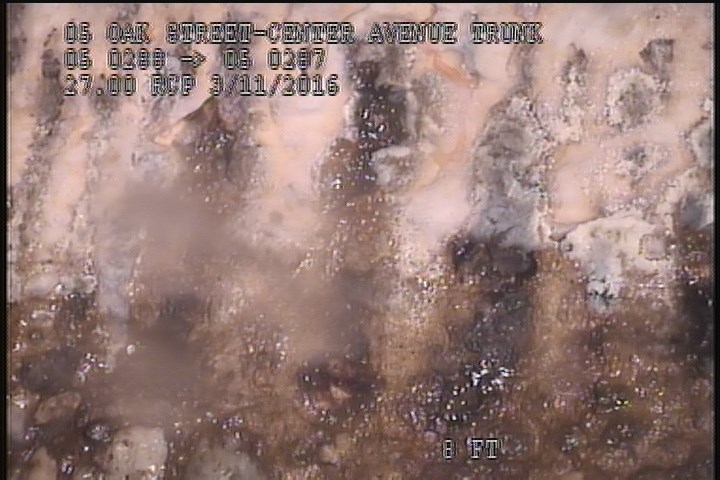

  • Surface Reinforcement Visible, at 04 o'clock, within 8 inches of joint: YES, Start - CIRCUM REBAR-POSSIBLE

    8 ft. - Surface Reinforcement Visible, at 04 o'clock, within 8 inches of joint: YES, Start - CIRCUM REBAR-POSSIBLE

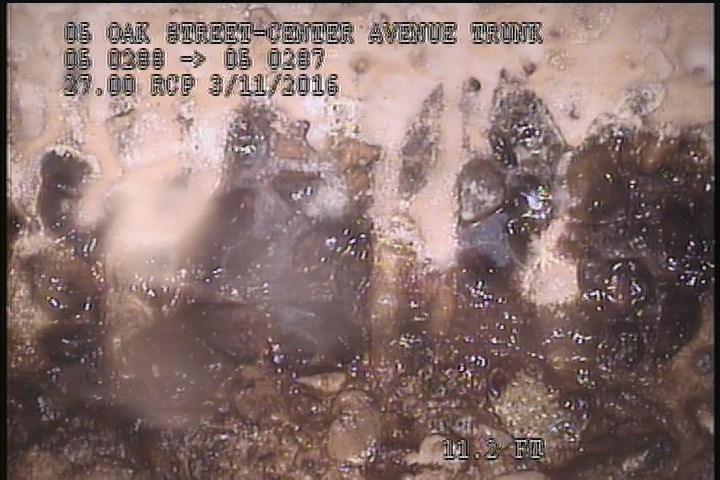

  • Surface Reinforcement Visible, at 04 o'clock, within 8 inches of joint: NO - POSSIBLE REBAR OR GREASE STAINS

    11.2 ft. - Surface Reinforcement Visible, at 04 o'clock, within 8 inches of joint: NO - POSSIBLE REBAR OR GREASE STAINS

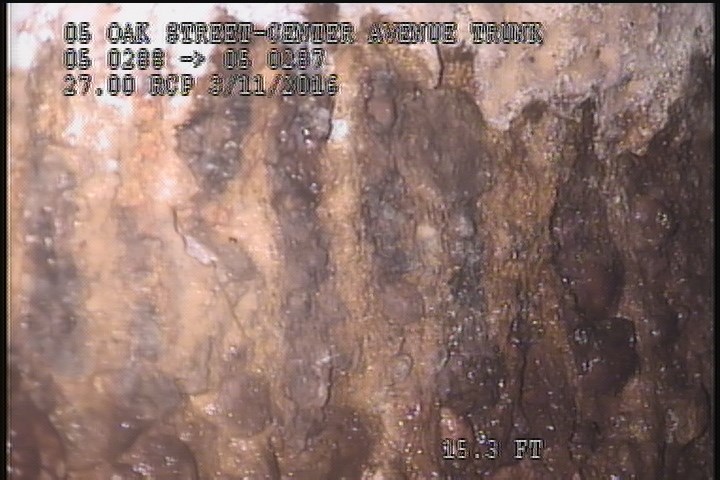

  • General Observation - POSSIBLE REBAR OR GREASE STAINS

    15.3 ft. - General Observation - POSSIBLE REBAR OR GREASE STAINS

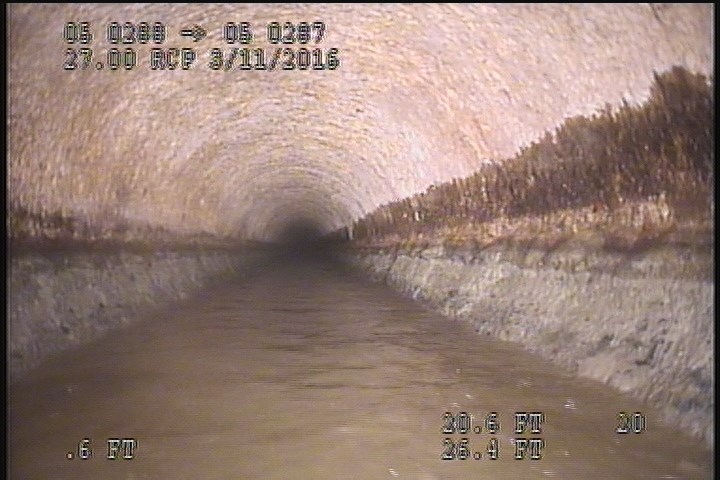

  • General Observation - MAG COAT 90% START

    26.4 ft. - General Observation - MAG COAT 90% START

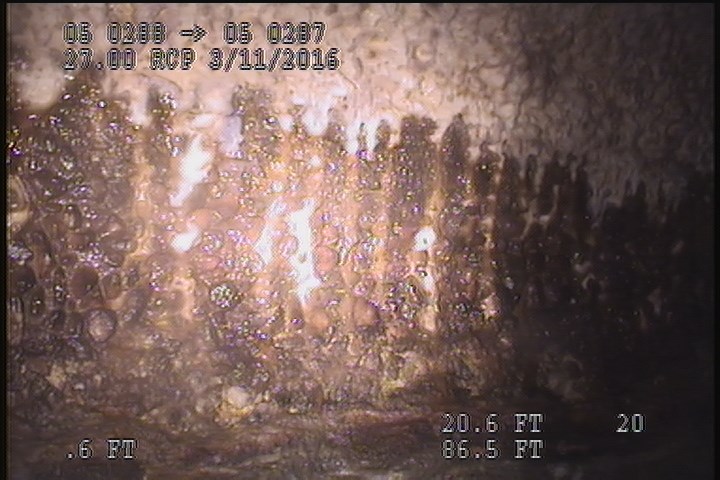

  • General Observation - GREASE ON SEVERE AGG

    86.5 ft. - General Observation - GREASE ON SEVERE AGG

All inspections of P05496Work order 0557598

Observations (19)

DistanceCodeObservation
2SAPSEVERE
48SRVPOSSIBLE REBAR OR GREASE STAINS
26.4MGOMAG COAT 90% START
0MWL—
119.5MGOMAG COAT 90% FINISH
0MGOConn. @ Mh, 9 O' Clock. Active
0MGOCHANNEL WALLS SEVERE CORRISON
119.5SAP—
119.9MGOMAG COAT 95% 8:00 TO 4:00
0AMH2:50AM
11.2SRVPOSSIBLE REBAR OR GREASE STAINS
8SRVCIRCUM REBAR-POSSIBLE
0MWM—
119.5SAP—
2SAPSEVERE AGG
119.9AMH3:20AM
15.3MGOPOSSIBLE REBAR OR GREASE STAINS
119.5MGOConn. @ Mh, 3 O' Clock. Active
86.5MGOGREASE ON SEVERE AGG

Properties (4)

custom_field_three
PROJECTING SEVERE AGG-POSSIBLE REBAR OR GREASE STA
custom_field_two
2
customer
LACSD
datetime
2016-03-11T01:46:53-08:00
