Wastewater/Activity/PacpInspection/1.0Mar 11, 2016, 11:38 AM
A 0525_A 0524_3112016_044441.mp4
- Date
- 03/11/2016
- W/O
- 0552352
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00315
- PipeID
- P20206
- Time
- 3:38 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0090
- Sewer Name
- A JOA-1A DISTRICT 5 INTERCEPTOR
- City
- GARDENA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 20
- Purpose
- Capital Improvement Program Assesment
- Project
- 20160311MDM_JOA_1A_DISTRICT_5_INTERCEPTOR
- Material
- Reinforced Concrete Pipe
- Shape
- Rectangular
- Height
- 0 in.
- Upstream MH
- A 0525
- Downstream MH
- A 0524
- Dir. of Survey
- Downstream
- Length Surveyed
- 11.8 ft.
- Total Length
- 11.8 ft.
- Structural Index
- 4
- Structural Quick
- 5131
- Structural Rating
- 8
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 8
Observation photos (2)

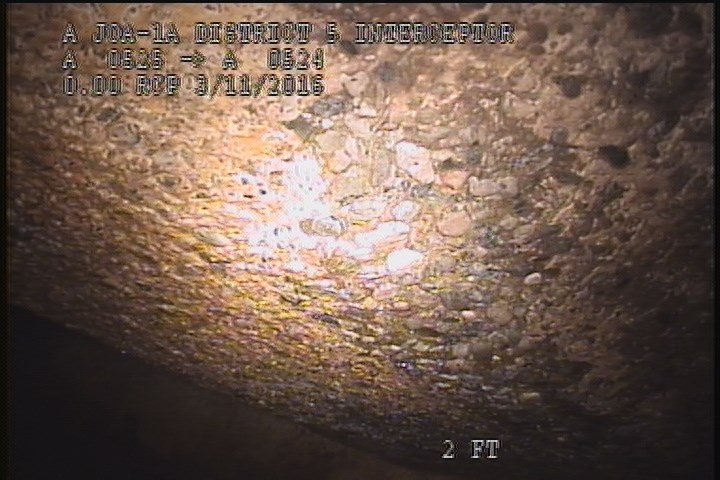

2 ft. - Surface Aggregate Projecting, from 11 to 01 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

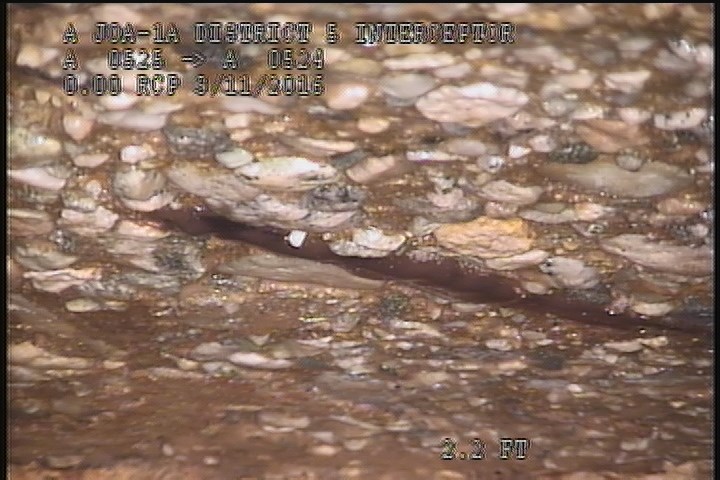

8 ft. - Surface Reinforcement Visible, at 01 o'clock, within 8 inches of joint: NO - POSSIBLE SURFACE REBAR
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 2 | SAP | SEVERE AGG |
| 11.3 | MGO | MAG COAT 50% FINISH |
| 0 | MWM | — |
| 0 | AMH | 4:35AM |
| 11.3 | SAP | SEVERE AGG |
| 8 | SRV | POSSIBLE SURFACE REBAR |
| 2 | MGO | MAG COAT 50% START |
| 0 | MWL | — |
| 11.8 | AMH | 4:50AM |
Properties (4)
- custom_field_three
- PROJECTING SEVERE AGG -1 POSSIBLE REBAR
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-03-11T03:38:47-08:00
