Wastewater/Activity/PacpInspection/1.0Mar 8, 2016, 12:40 PM
05 2493_05 2492_382016_050152.mp4
- Date
- 03/08/2016
- W/O
- 0552371
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00902
- PipeID
- P20894
- Time
- 4:40 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0084
- Sewer Name
- 05 MONETA EXTENSION TRUNK, SECTION 1 RELIEF
- City
- GARDENA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 17
- Purpose
- Routine Assessment
- Project
- 20160308MDM_MONETA_EXTENSION_TRUNK_SECTION_1_RELIEF
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Upstream MH
- 05 2493
- Downstream MH
- 05 2492
- Dir. of Survey
- Downstream
- Length Surveyed
- 310.9 ft.
- Total Length
- 310.9 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 4
- O&M Quick
- 4131
- O&M Rating
- 7
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 7
Observation photos (2)
7.7 ft. - Deposits Settled Other, 15 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start - SLUDGE

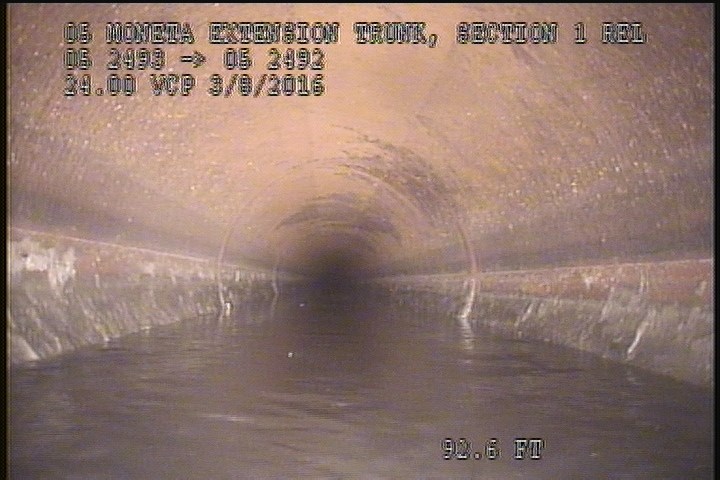

92.6 ft. - General Observation - 24" VCP
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 7.7 | DSZ | SLUDGE |
| 310.9 | MSA | 15% SLUDGE STOPED CAMERA |
| 271.3 | MWL | — |
| 0 | MWM | — |
| 0 | AMH | 4:55AM |
| 310.5 | DSZ | SLUDGE |
| 271.3 | MWM | — |
| 149.4 | MWM | — |
| 92.6 | MGO | 24" VCP |
Properties (3)
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-03-08T04:40:38-08:00
