Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 4, 2016, 04:50 PM

  • 16 0572_16 0571_342016_092646.mp4

Date
03/04/2016
W/O
PENDING
Weather
Dry
Operator/Surveyor
MIRANDA
Sewer ID
Z00659
PipeID
P13623
Time
8:50 AM
Certificate
U-1014-06022542
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7069R
Sewer Name
16 LAMANDA PARK TRUNK
City
PASADENA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
11
Purpose
Maintenance Related
Project
20160304AM_LAMANDA_PARK_TRUNK
Material
Reinforced Concrete Pipe
Shape
Circular
Height
22 in.
Upstream MH
16 0572
Downstream MH
16 0571
Dir. of Survey
Downstream
Length Surveyed
258.1 ft.
Total Length
258.1 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2500
O&M Rating
10
Overall Index
2
Overall Quick
—
Overall Rating
10
Pipe schematic from manhole 16 0572 to 16 0571
MH: 16 0572MH: 16 0571downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - ROOT EVALUATION ONLY2 ft. MGO - General Observation - FINE ROOTS AND TAP ROOTS20.2 ft. RTL - Roots Tap Lateral, at 11 o'clock, 10 %, within 8 inches of joint: NO69 ft. RTL - Roots Tap Lateral, at 11 o'clock, 5 %, within 8 inches of joint: NO89.3 ft. RTL - Roots Tap Lateral, at 11 o'clock, 10 %, within 8 inches of joint: NO133.4 ft. RTL - Roots Tap Lateral, at 11 o'clock, 5 %, within 8 inches of joint: NO161.5 ft. RTL - Roots Tap Lateral, at 11 o'clock, 5 %, within 8 inches of joint: NO258.1 ft. AMH - Downstream Manhole, Survey Ends - 9:41 AM

Observation photos (3)

  • General Observation - FINE ROOTS AND TAP ROOTS

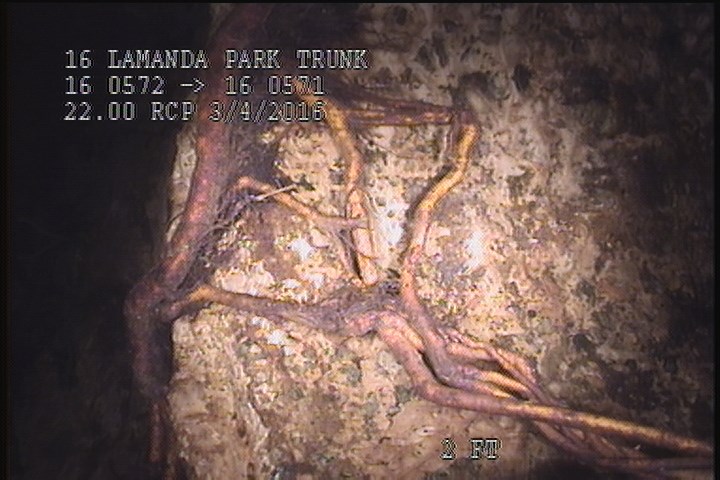

    2 ft. - General Observation - FINE ROOTS AND TAP ROOTS

  • Roots Tap Lateral, at 11 o'clock, 10 %, within 8 inches of joint: NO

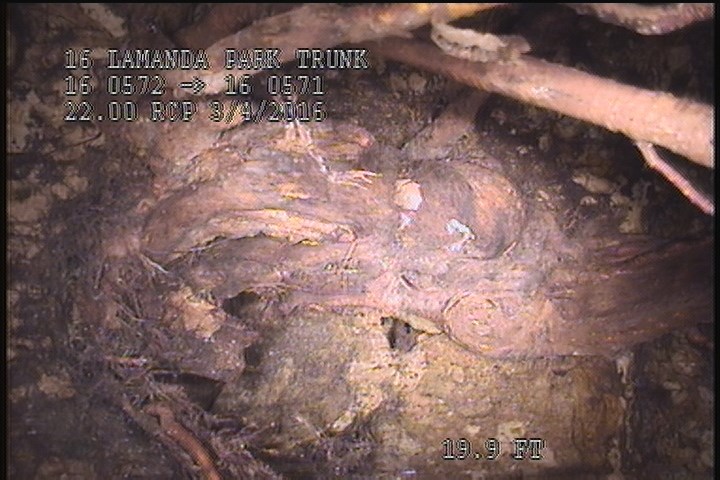

    20.2 ft. - Roots Tap Lateral, at 11 o'clock, 10 %, within 8 inches of joint: NO

  • Roots Tap Lateral, at 11 o'clock, 10 %, within 8 inches of joint: NO

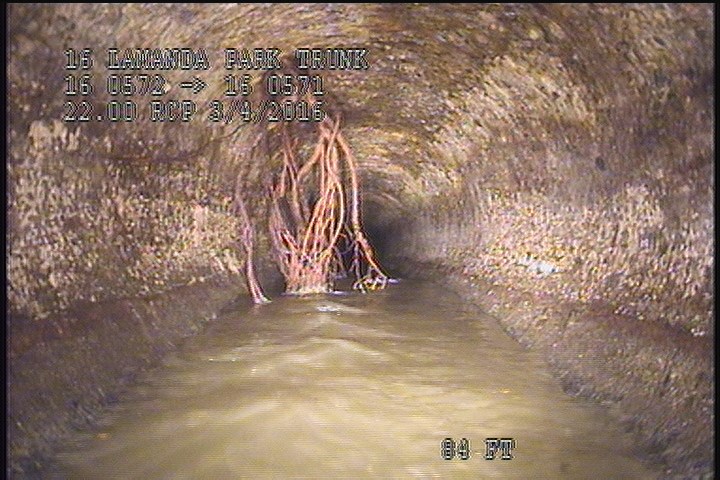

    89.3 ft. - Roots Tap Lateral, at 11 o'clock, 10 %, within 8 inches of joint: NO

All inspections of P13623Work order PENDING

Observations (9)

DistanceCodeObservation
89.3RTL—
258.1AMH9:41 AM
0MWL—
20.2RTL—
69RTL—
2MGOFINE ROOTS AND TAP ROOTS
133.4RTL—
0AMHROOT EVALUATION ONLY
161.5RTL—

Properties (5)

additional_info
WORKING WITH SGV MAINTENANCE CUTTING ROOTS
custom_field_three
ROOT EVALUATION ONLY
custom_field_two
5
customer
LACSD
datetime
2016-03-04T08:50:19-08:00
