Wastewater/Activity/PacpInspection/1.0Mar 4, 2016, 09:38 PM
18 0580_18 0579_342016_134240.mp4
- Date
- 03/04/2016
- W/O
- 0557479
- Weather
- Dry
- Operator/Surveyor
- MIRANDA
- Sewer ID
- Z00670
- PipeID
- P14429
- Time
- 1:38 PM
- Certificate
- U-1014-06022542
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7070
- Sewer Name
- 18 BLOOMFIELD AVENUE TRUNK
- City
- NORWALK
- Loc. details
- Parking Lot
- Location Code
- G
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 30
- Purpose
- Routine Assessment
- Project
- 20160304AM_BLOOMFIELD_AVENUE_TRUNK
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 21 in.
- Upstream MH
- 18 0580
- Downstream MH
- 18 0579
- Dir. of Survey
- Downstream
- Length Surveyed
- 2.1 ft.
- Total Length
- 2.1 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (5)

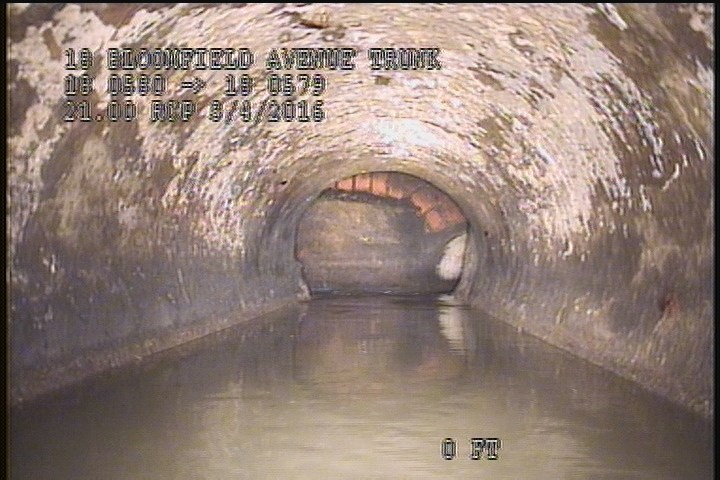

0 ft. - Upstream Manhole, Survey Begins - 1:39 PM

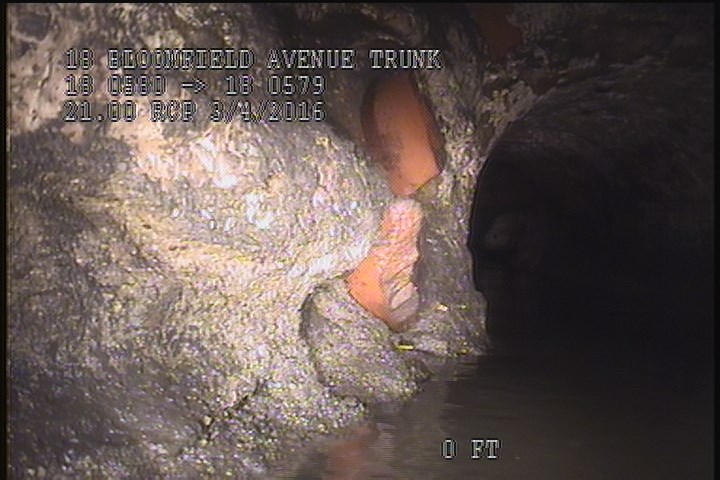

0 ft. - General Observation - CHANNEL IN POOR CONDITION

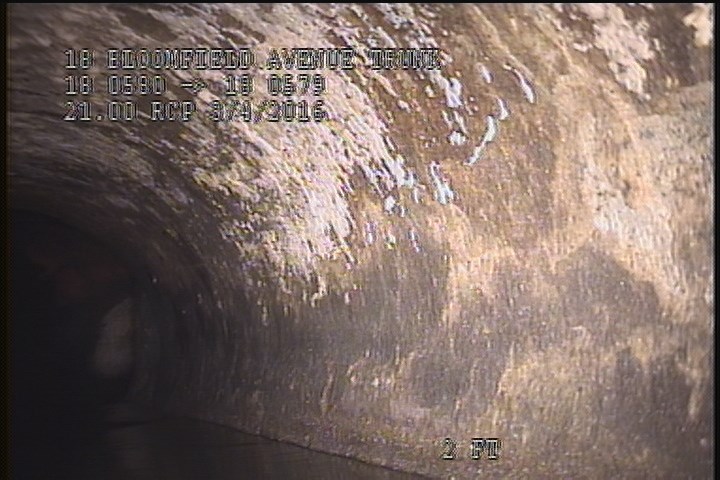

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO

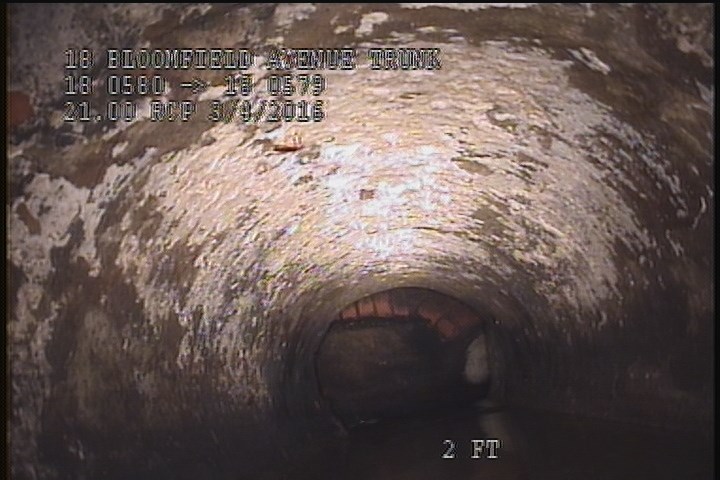

2 ft. - General Observation - 50% MAG COAT FROM 09 TO 03 O'CLOCK

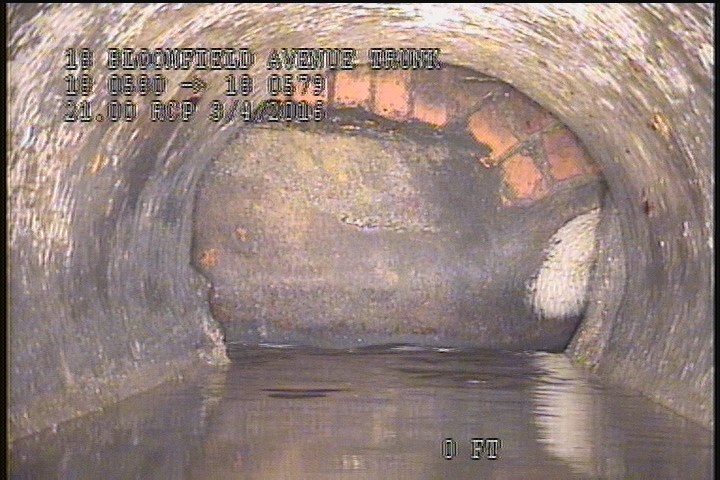

2.1 ft. - Upstream Manhole, Survey Ends - ABLE TO ZOOM IN TO MH. 579
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 2 | SSS | — |
| 0 | MWL | — |
| 0 | MGO | UNKNOWN CONN. INSIDE THE MH. @ 08 O'CLOCK, 50% BLOCKED |
| 2 | MGO | 50% MAG COAT FROM 09 TO 03 O'CLOCK |
| 0 | MGO | ROACHES INSIDE THE MH. |
| 0 | AMH | 1:39 PM |
| 0 | MGO | CHANNEL IN POOR CONDITION |
| 0 | MGO | ACTIVE CONN. INSIDE THE MH. @ 03 O'CLOCK, 25% BLOCKED |
| 2.1 | AMH | ABLE TO ZOOM IN TO MH. 579 |
Properties (4)
- custom_field_three
- SPALLING
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-03-04T13:38:49-08:00
