Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 8, 2016, 10:05 AM

  • 02 1347_02 1290_382016_022822.mp4

Date
03/08/2016
W/O
0541751
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00277
PipeID
P04621
Time
2:05 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0083
Sewer Name
02 JANE STREET BRANCH TRUNK
City
LOS ANGLES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
11A
Purpose
Routine Assessment
Project
20160302MDM_JANE_STREET_BRANCH_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
21 in.
Upstream MH
02 1290
Downstream MH
02 1347
Dir. of Survey
Upstream
Length Surveyed
378.8 ft.
Total Length
378.8 ft.
Structural Index
2
Structural Quick
3B2B
Structural Rating
76
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
78
Pipe schematic from manhole 02 1290 to 02 1347
MH: 02 1290MH: 02 1347upstream0 ft. AMH - Upstream Manhole, Survey Ends - 3:20AM0.4 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active0.4 ft. MGO - General Observation - MH CONN 12:00 STUB8.3 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES - H11.2 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - H14.1 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - H35.9 ft. FC - Fracture Circumferential, from 01 to 03 o'clock, within 8 inches of joint: YES - H44.9 ft. RPP - Repair Patch, from 12 to 03 o'clock, within 8 inches of joint: YES - CONCRETE PATCH60.3 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - H98 ft. FC - Fracture Circumferential, from 01 to 03 o'clock, within 8 inches of joint: YES - H108.9 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES, Finish - H112.2 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES, Start - H115.5 ft. FC - Fracture Circumferential, from 02 to 03 o'clock, within 8 inches of joint: YES - H135.9 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES - H144.5 ft. FC - Fracture Circumferential, from 11 to 12 o'clock, within 8 inches of joint: YES - H149.8 ft. FC - Fracture Circumferential, from 01 to 03 o'clock, within 8 inches of joint: YES - H149.8 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES, Finish152.8 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES, Start - H161.6 ft. TBC - Tap Break-In Capped, at 12 o'clock, -, within 8 inches of joint: YES, 6"174 ft. FC - Fracture Circumferential, from 09 to 03 o'clock, within 8 inches of joint: YES - H177.5 ft. FC - Fracture Circumferential, from 11 to 02 o'clock, within 8 inches of joint: YES - H177.5 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES - H208.8 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES, Change - H208.8 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES - H217.6 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES - H217.6 ft. FL - Fracture Longitudinal, at 11 o'clock, within 8 inches of joint: YES, Change - H251.1 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES, Finish251.1 ft. FL - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES, Finish264.7 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES, Start - H264.7 ft. FL - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES, Start - H273.1 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES, Finish - H276.2 ft. FC - Fracture Circumferential, from 10 to 03 o'clock, within 8 inches of joint: YES - H276.2 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES, Start - H279.7 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - H292.5 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES, Finish - H294.6 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - H294.6 ft. FL - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES, Finish - H326.7 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - H329.2 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H347.6 ft. MGP - General Photograph - 21" VCP353.8 ft. FC - Fracture Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES - H366.8 ft. FL - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES, Start - HAIRLINE366.8 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES, Start - H369.7 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - HAIRLINE378.8 ft. MWM - Water Mark, 20 %of cross sectional area378.8 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active378.8 ft. MWL - Water Level, 10 %of cross sectional area378.8 ft. AMH - Downstream Manhole, Survey Begins - 2:25AM

Observation photos (6)

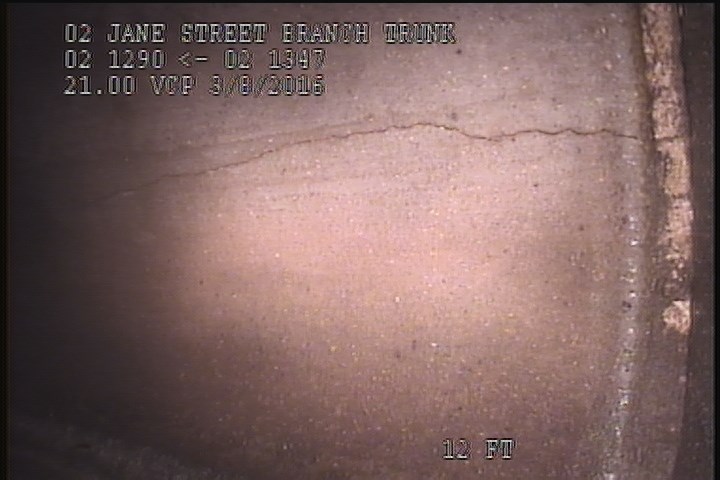

  • Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES, Start - H

    12 ft. - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES, Start - H

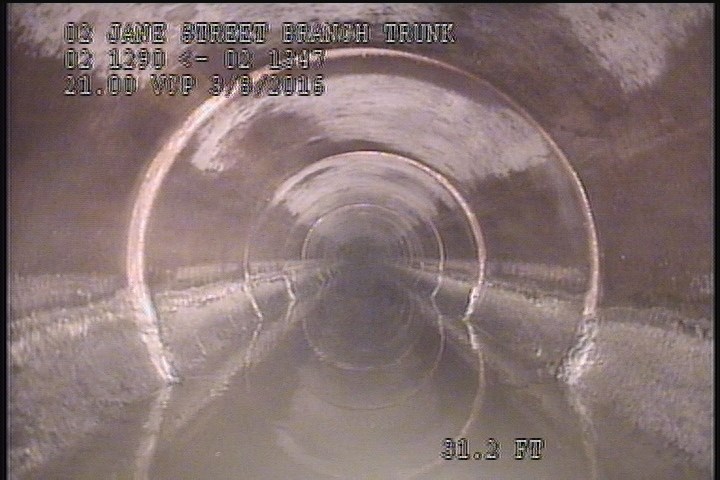

  • General Photograph - 21" VCP

    31.2 ft. - General Photograph - 21" VCP

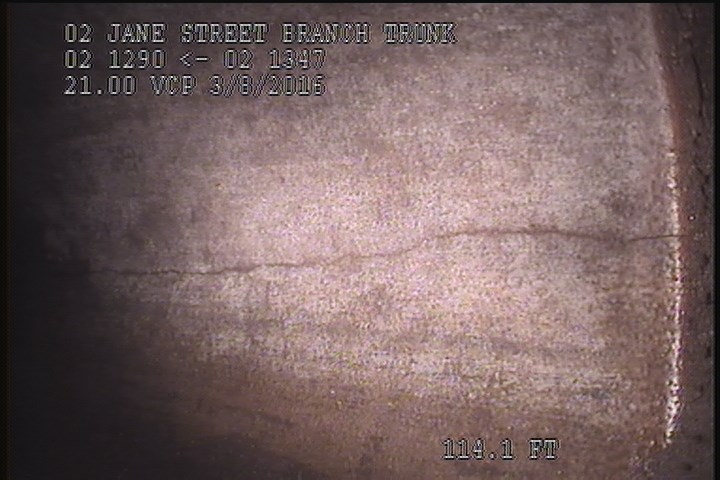

  • Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES, Start - H

    114.1 ft. - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES, Start - H

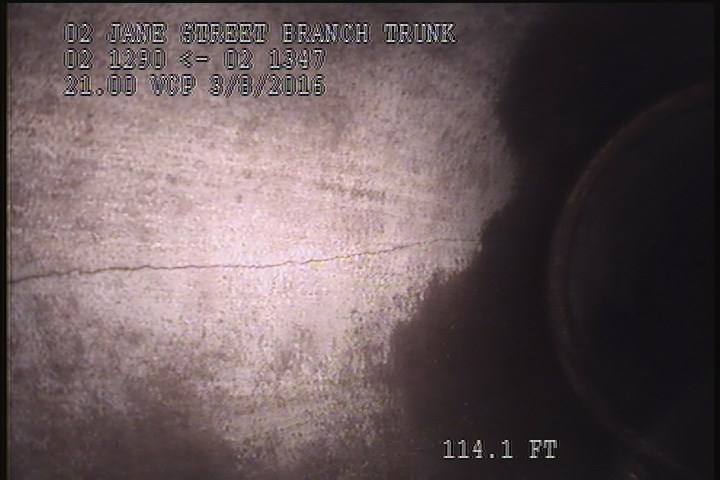

  • Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES, Start - H

    114.1 ft. - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES, Start - H

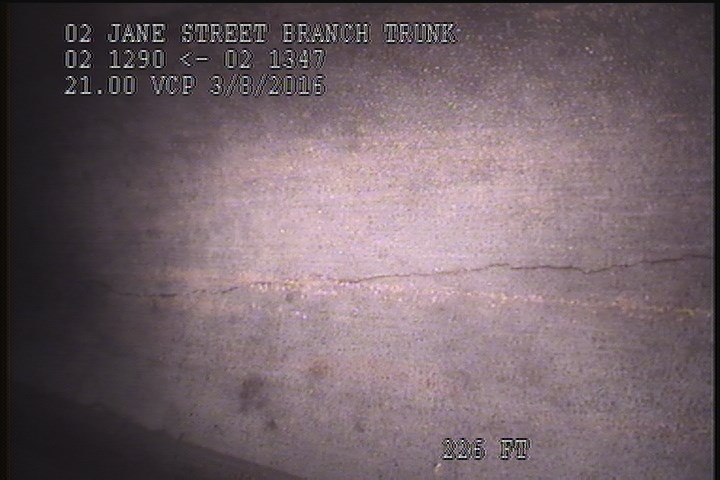

  • Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES, Start - H

    226 ft. - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES, Start - H

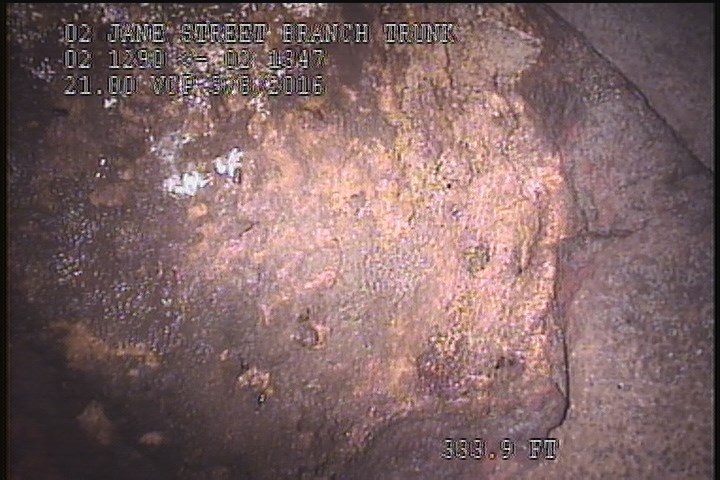

  • Repair Patch, from 12 to 03 o'clock, within 8 inches of joint: YES - CONCRETE PATCH

    333.9 ft. - Repair Patch, from 12 to 03 o'clock, within 8 inches of joint: YES - CONCRETE PATCH

All inspections of P04621Work order 0541751

Observations (48)

DistanceCodeObservation
12FLHAIRLINE
234.3FCH
105.7FLH
9.1FCHAIRLINE
370.5FLH
25FCH
0MWM—
201.3FCH
99.1FCH
269.9FLH
0MGOConn. @ Mh, 3 O' Clock. Active
84.2FCH
127.7FL—
229FCH
266.6FLH
318.5FCH
217.2TBC—
378.4MGOConn. @ Mh, 3 O' Clock. Active
161.2FLH
114.1FLH
102.6FCH
229FL—
242.9FLH
102.6FLH
12FLH
280.8FCH
263.3FCH
114.1FLH
367.6FCH
0MWL—
127.7FL—
86.3FLH
170FLH
161.2FLH
378.4MGOMH CONN 12:00 STUB
170FCH
342.9FCH
0AMH2:25AM
378.8AMH3:20AM
84.2FLH
204.8FCH
49.6FLH
364.7FCH
226FLH
52.1FCH
201.3FLH
31.2MGP21" VCP
333.9RPPCONCRETE PATCH

Properties (4)

custom_field_three
HAIRLINE LONG FRACTURE JOINT TO JOINT LONGER
custom_field_two
2
customer
LACSD
datetime
2016-03-08T02:05:42-08:00
