Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 3, 2016, 08:30 AM

  • 02 1362_02 1361_332016_003539.mp4

  • 02 1362_02 1361_332016_004515.mp4

Date
03/03/2016
W/O
0541751
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00277
PipeID
P03885
Time
12:30 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0078
Sewer Name
02 JANE STREET BRANCH TRUNK
City
LOS ANGLES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
11A
Purpose
Routine Assessment
Project
20160302MDM_JANE_STREET_BRANCH_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Upstream MH
02 1362
Downstream MH
02 1361
Dir. of Survey
Downstream
Length Surveyed
271.6 ft.
Total Length
271.6 ft.
Structural Index
3
Structural Quick
413A
Structural Rating
58
O&M Index
2
O&M Quick
3124
O&M Rating
11
Overall Index
2
Overall Quick
—
Overall Rating
69
Pipe schematic from manhole 02 1362 to 02 1361
MH: 02 1362MH: 02 1361downstream0 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active0 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 12:30AM0 ft. MWM - Water Mark, 20 %of cross sectional area6 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES6 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Active8.2 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES - SLIGHT10.6 ft. FL - Fracture Longitudinal, at 04 o'clock, within 8 inches of joint: YES - HAIRLINE=H10.6 ft. FC - Fracture Circumferential, from 09 to 01 o'clock, within 8 inches of joint: YES - HAIRLINE16.8 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - H16.8 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - H20.1 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - H23 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H26.8 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES - H29.1 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - H32.8 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H38.5 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H41.5 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - H41.5 ft. FC - Fracture Circumferential, from 01 to 03 o'clock, within 8 inches of joint: YES - H44.7 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - H48.1 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Open48.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES50 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - HAIRLINE AT JOINTS50 ft. FL - Fracture Longitudinal, at 08 TO 04 o'clock, within 8 inches of joint: YES, Start - HAIRLINE AT JOINTS50 ft. MGP - General Photograph - 12" VCP111.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES111.9 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Active119.5 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES - H136.5 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Open147.4 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - SLIGHT147.4 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES, - H156.2 ft. FL - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES, Start - HAIRLINE156.2 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES, Start - HAIRLINE161.1 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES, Finish - H161.1 ft. FS - Fracture Spiral, from 09 to 11 o'clock, within 8 inches of joint: YES, Start - SLIGHT161.1 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES, Finish - H161.1 ft. FS - Fracture Spiral, from 01 to 03 o'clock, within 8 inches of joint: YES, Start - SLIGHT165.5 ft. FS - Fracture Spiral, from 09 to 11 o'clock, within 8 inches of joint: YES, Finish - SLIGHT165.5 ft. FS - Fracture Spiral, from 01 to 03 o'clock, within 8 inches of joint: YES, Finish - SLIGHT190.8 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Open190.8 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES232.8 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Open268.9 ft. DAGS - Deposits Attached Grease, 15 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES268.9 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Active271.2 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 80% AT JOINTS HAIRLINE271.2 ft. FL - Fracture Longitudinal, at 08 TO 04 o'clock, within 8 inches of joint: YES, Finish - 30% AT JOINTS HAIRLINE271.6 ft. AMH - Downstream Manhole, Survey Ends - 1:15AM

Observation photos (4)

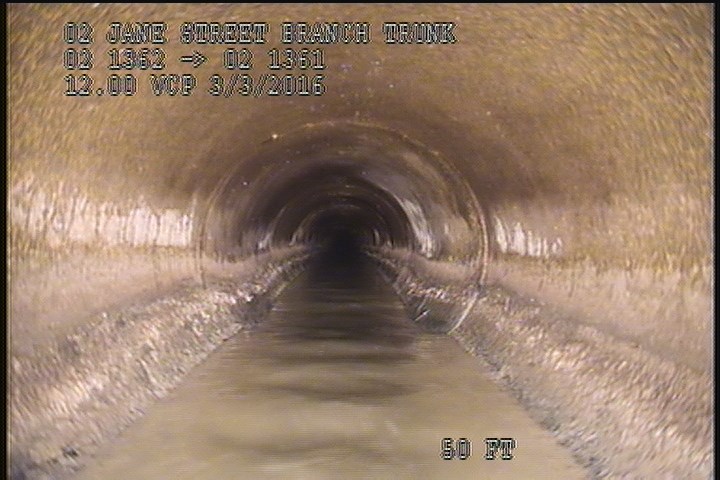

  • General Photograph - 12" VCP

    50 ft. - General Photograph - 12" VCP

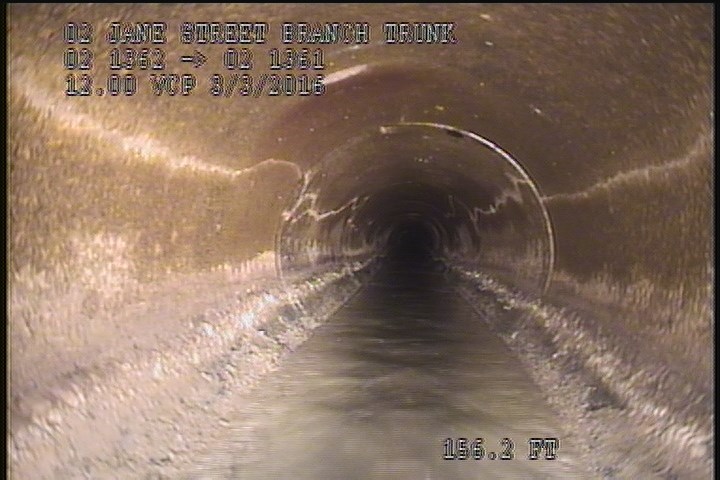

  • Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES, Start - HAIRLINE

    156.2 ft. - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES, Start - HAIRLINE

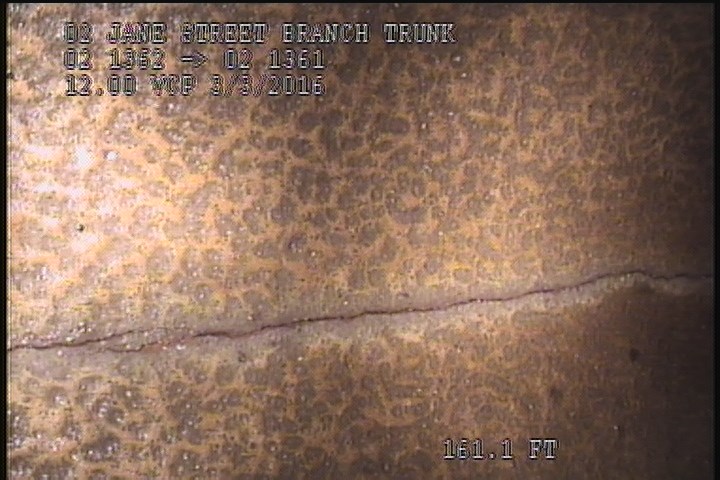

  • Fracture Spiral, from 09 to 11 o'clock, within 8 inches of joint: YES, Start - SLIGHT

    161.1 ft. - Fracture Spiral, from 09 to 11 o'clock, within 8 inches of joint: YES, Start - SLIGHT

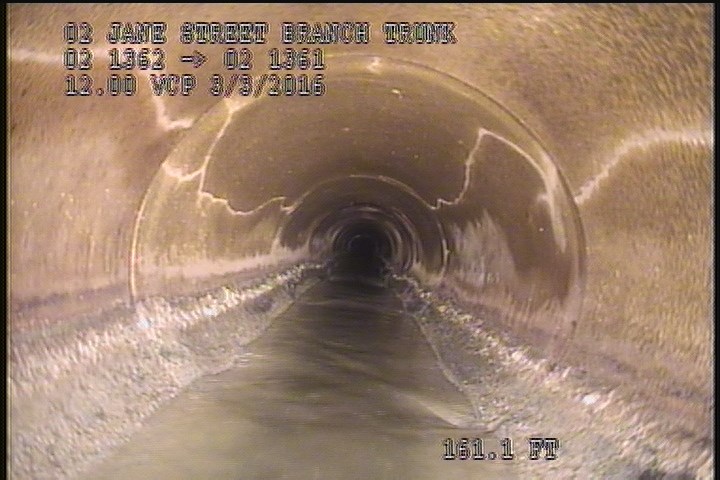

  • Fracture Spiral, from 01 to 03 o'clock, within 8 inches of joint: YES, Start - SLIGHT

    161.1 ft. - Fracture Spiral, from 01 to 03 o'clock, within 8 inches of joint: YES, Start - SLIGHT

All inspections of P03885Work order 0541751

Observations (48)

DistanceCodeObservation
6DAGS—
165.5FSSLIGHT
0MGOConn. @ Mh, 9 O' Clock. Active
10.6FLHAIRLINE=H
8.2FCSLIGHT
111.9DAGS—
268.9DAGS—
41.5FCH
165.5FSSLIGHT
111.9TFActive
0MGOConn. @ Mh, 3 O' Clock. Active
147.4FCSLIGHT
136.5TFOpen
0MWL—
6TFActive
119.5FMH
48.1TFOpen
147.4FLH
26.8FCH
50FCHAIRLINE AT JOINTS
38.5FLH
16.8FCH
268.9TFActive
50FLHAIRLINE AT JOINTS
161.1FLH
0AMH12:30AM
156.2FLHAIRLINE
48.1DAGS—
190.8TFOpen
44.7FCH
271.2FC80% AT JOINTS HAIRLINE
23FLH
16.8FCH
0MWM—
32.8FLH
161.1FSSLIGHT
29.1FCH
190.8DAGS—
10.6FCHAIRLINE
50MGP12" VCP
20.1FCH
271.6AMH1:15AM
232.8TFOpen
161.1FLH
161.1FSSLIGHT
156.2FLHAIRLINE
41.5FCH
271.2FL30% AT JOINTS HAIRLINE

Properties (4)

custom_field_three
SLIGHT FRACTURE SPRIAL JOINT TO JOINT LONGER
custom_field_two
2
customer
LACSD
datetime
2016-03-03T00:30:55-08:00
