Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 9, 2016, 09:19 AM

  • B 0379_B 0378_292016_051219.mp4

Date
02/09/2016
W/O
0547078
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00091
PipeID
P08891
Time
1:19 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0047
Sewer Name
B JOINT OUTFALL B - UNIT 5A
City
SAN MARINO
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
07
Purpose
Routine Assessment
Project
201608MDM_JOINT_OUTFALL_B_UNIT_5A
Material
NRCP
Shape
Circular
Height
21 in.
Upstream MH
B 0379
Downstream MH
B 0378
Dir. of Survey
Downstream
Length Surveyed
330.9 ft.
Total Length
330.9 ft.
Structural Index
3
Structural Quick
3323
Structural Rating
15
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
3
Overall Quick
—
Overall Rating
19
Pipe schematic from manhole B 0379 to B 0378
MH: B 0379MH: B 0378downstream0 ft. AMH - Upstream Manhole, Survey Begins - 5:00AM0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 60 %of cross sectional area2 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - LKAITANCE COAT PEELING BLISTERING2 ft. MGO - General Observation - MAG COAT 80% START9:00 TO 3:0014.8 ft. SAV - Surface Aggregate Visible, from 09 to 10 o'clock, within 8 inches of joint: YES - SEVERE AGG SPORATIC26.7 ft. SSS - Surface Spalling, from 12 to 03 o'clock, within 8 inches of joint: YES - PEELING LAITANCE COAT128 ft. SSS - Surface Spalling, from 09 to 12 o'clock, within 8 inches of joint: NO180.8 ft. SAV - Surface Aggregate Visible, from 09 to 11 o'clock, within 8 inches of joint: NO - SEVERE AGG189.6 ft. SAV - Surface Aggregate Visible, from 12 to 02 o'clock, within 8 inches of joint: YES - SEVERE AGG330.5 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish330.5 ft. MGO - General Observation - MAG COAT 80% FINISH330.9 ft. AMH - Downstream Manhole, Survey Ends - 5:25AM

Observation photos (6)

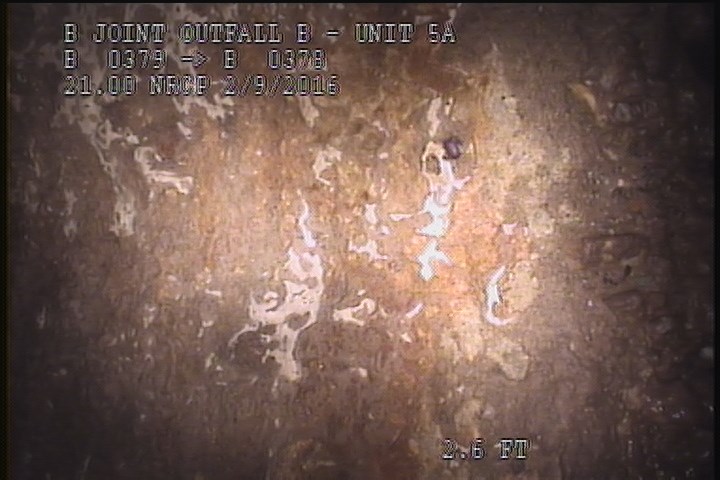

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - LKAITANCE COAT PEELING BLISTERING

    2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - LKAITANCE COAT PEELING BLISTERING

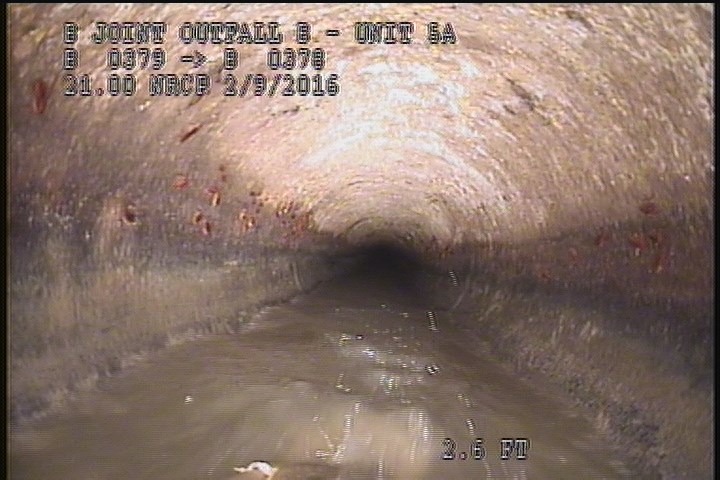

  • General Observation - MAG COAT 80% START9:00 TO 3:00

    2 ft. - General Observation - MAG COAT 80% START9:00 TO 3:00

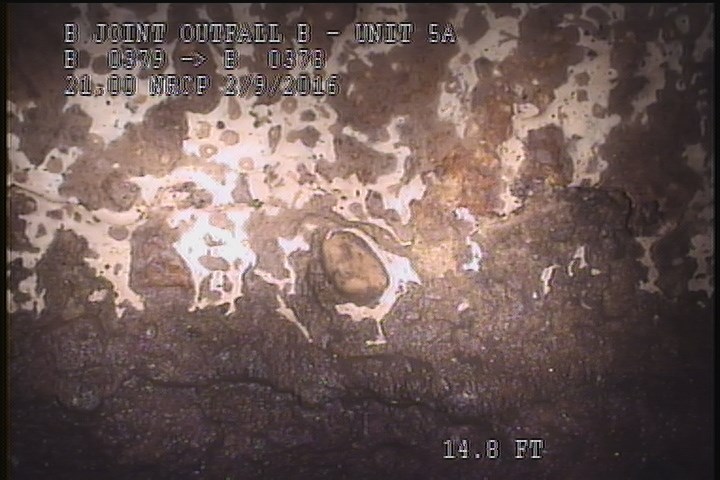

  • Surface Aggregate Visible, from 09 to 10 o'clock, within 8 inches of joint: YES - SEVERE AGG SPORATIC

    14.8 ft. - Surface Aggregate Visible, from 09 to 10 o'clock, within 8 inches of joint: YES - SEVERE AGG SPORATIC

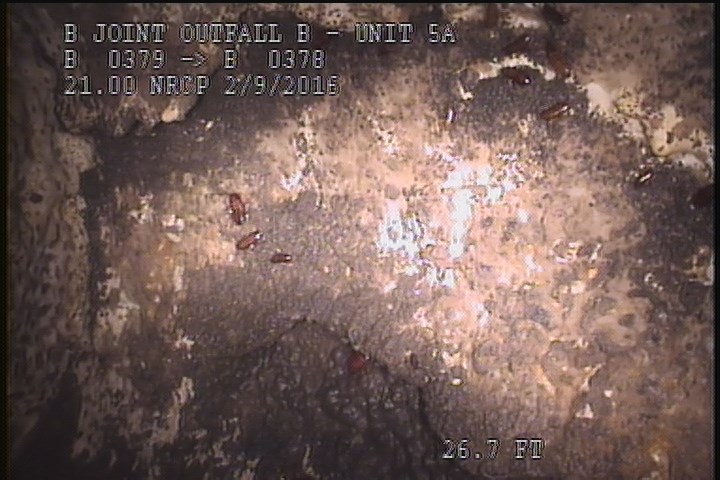

  • Surface Spalling, from 12 to 03 o'clock, within 8 inches of joint: YES - PEELING LAITANCE COAT

    26.7 ft. - Surface Spalling, from 12 to 03 o'clock, within 8 inches of joint: YES - PEELING LAITANCE COAT

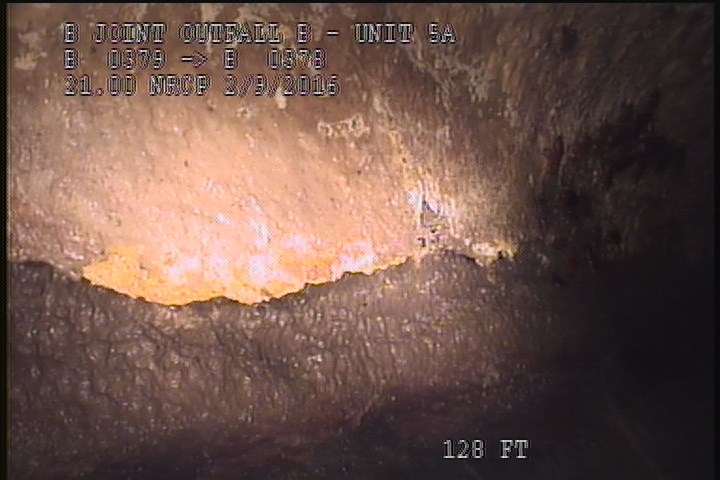

  • Surface Spalling, from 09 to 12 o'clock, within 8 inches of joint: NO

    128 ft. - Surface Spalling, from 09 to 12 o'clock, within 8 inches of joint: NO

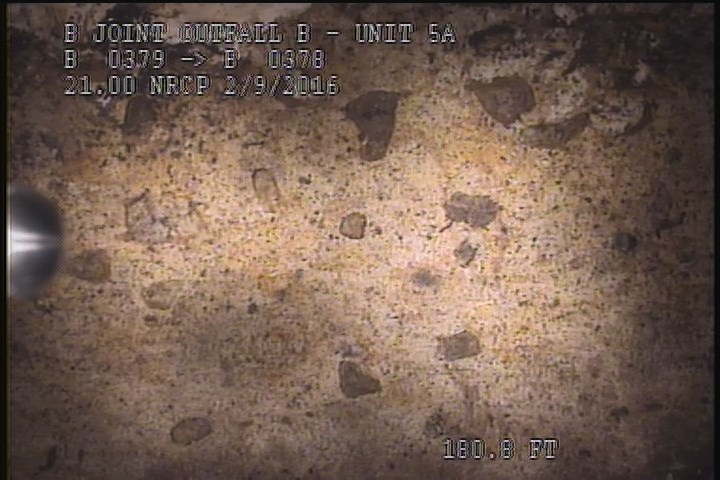

  • Surface Aggregate Visible, from 09 to 11 o'clock, within 8 inches of joint: NO - SEVERE AGG

    180.8 ft. - Surface Aggregate Visible, from 09 to 11 o'clock, within 8 inches of joint: NO - SEVERE AGG

All inspections of P08891Work order 0547078

Observations (13)

DistanceCodeObservation
2SSSLKAITANCE COAT PEELING BLISTERING
330.5SSS—
2MGOMAG COAT 80% START9:00 TO 3:00
189.6SAVSEVERE AGG
0AMH5:00AM
0MWL—
14.8SAVSEVERE AGG SPORATIC
26.7SSSPEELING LAITANCE COAT
0MWM—
128SSS—
180.8SAVSEVERE AGG
330.9AMH5:25AM
330.5MGOMAG COAT 80% FINISH

Properties (4)

custom_field_three
SEVERE AGG SPORATIC
custom_field_two
3
customer
LACSD
datetime
2016-02-09T01:19:13-08:00
